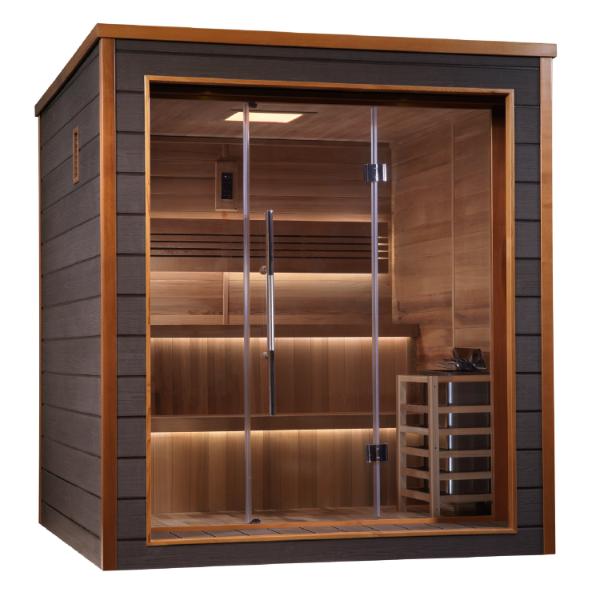

Golden Designs "Bergen" 6 Person Outdoor-Indoor Traditional Sauna (GDI-8206-01)



Description

The Bergen is the 6-person traditional sauna in Golden Designs' Modern Series -- the largest capacity model in the Modern Series traditional lineup, built on the same all-weather composite exterior and Canadian Red Cedar interior platform as the 3-person Drammen, but scaled for a full group session. At 75 inches wide by 67.2 inches deep by 75 inches tall inside, the Bergen accommodates six adults with two full bench levels, a dedicated bench backrest with accent lighting, and the full suite of chromotherapy, FM radio, and Bluetooth audio that comes standard across the Modern Series traditional lineup. There is no infrared system in the Bergen, no mode switching, and no split-circuit complexity -- just a Harvia "WALL" 8kW stove running on a single 240V/30AMP hardwired circuit, delivering the full-intensity traditional sauna experience the way it was designed to work.



The Bergen is a custom production unit with limited quantity available, rated for both indoor and outdoor installation. The exterior is all-weather composite construction in an Espresso finish that handles year-round outdoor exposure without the annual stain maintenance that natural wood demands. The interior is completely natural Canadian Red Cedar: walls, ceiling, benches, and backrest, kept without stain or finish because the interior must remain natural at all times. Canadian Red Cedar's aromatic oils are present from the first session -- the warm, distinctive scent that defines what a serious traditional sauna smells like when it is running. The manual notes that a small percentage of the population with Multiple Chemical Sensitivity may have an adverse reaction to Canadian Red Cedar's aroma, and advises discontinuing use if symptoms occur. For the majority of users, Canadian Red Cedar is the sauna wood of choice.



The Bergen's two-tier bench system is unique within the Modern Series traditional lineup. The second-level support beam is a Bergen-specific component: it installs first using 5x50mm wood screws, before the first-level bench supports slide into the side wall vertical guides. Both first and second level bench supports then slide into those guides, followed by the benches themselves -- each bench connected to its LED harness before being secured with 5x50mm wood screws. The backrest LED connects to the rear wall panel wiring before the backrest is mounted. The stove guard wood housing assembles around the Harvia stove and mounts to the wall panel after the heater is installed by a certified electrician, who must run the power cord through the vent hole in the wall panel and close the vent before the heater is mounted -- the vent cannot be opened once the heater is in place.



The control panel and performance speakers are both located on the rear wall panel. The upper vent is on the left side wall panel, the lower vent is on the right side wall panel, both positioned toward the front of the sauna room. The single Light/BT control panel manages the oversize chromotherapy color lighting system with red light therapy, bench accent lighting, FM radio, and Bluetooth audio independently of the stove. The chromotherapy lighting is operated via the included remote from inside the cabin; the control panel locks after 3 minutes of inactivity and requires pressing and holding the power button to unlock. The exterior roof panel holds approximately 20 pounds of snow per square inch. A waterproof cover is recommended when the Bergen is not in use outdoors.



Assembly requires three adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders. Warranty registration requires mailing the completed warranty card, with a copy of the sales receipt, to Golden Designs within 60 days of purchase date.



Backyard Prime Living is a certified authorized reseller of Golden Designs. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.

Features

• Traditional Stove Only -- No Infrared -- The Bergen is a pure traditional sauna with a Harvia "WALL" 8kW stove as the sole heat source. No infrared panels, no mode switching, no dual circuit. The full-intensity traditional steam and loyly experience for six people in the Modern Series all-weather cabinet.

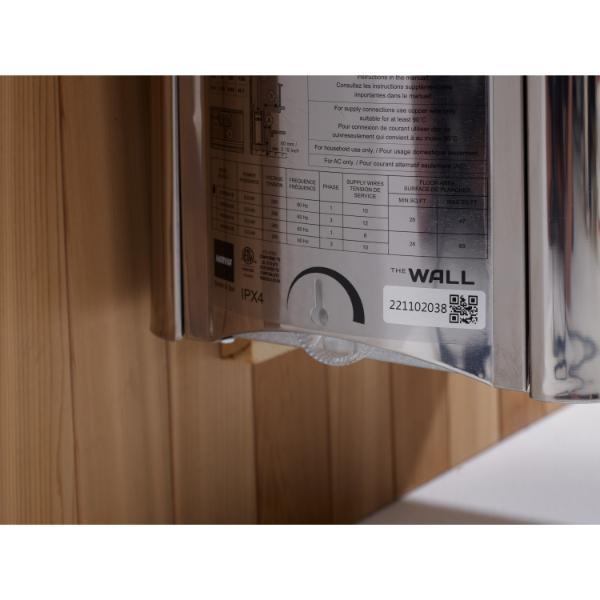

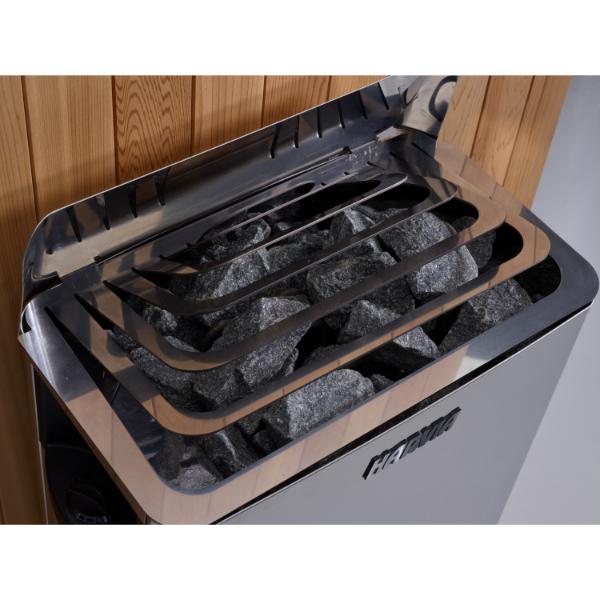

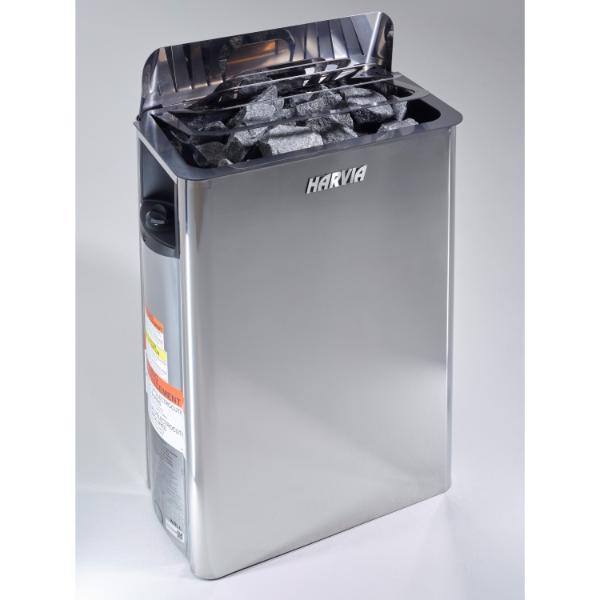

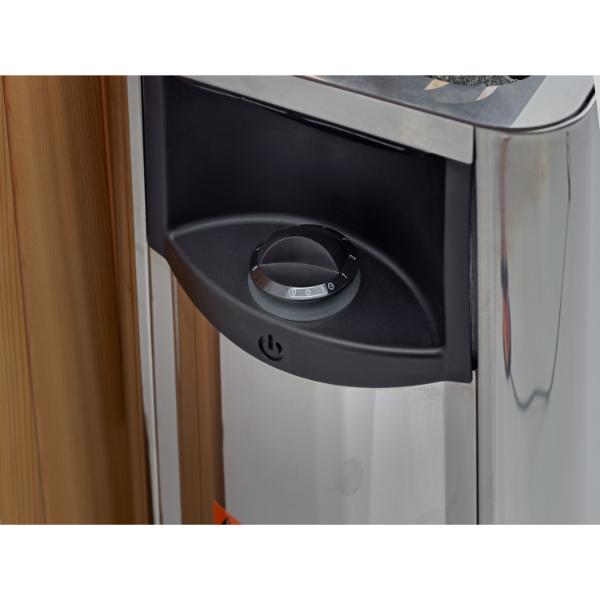

• Harvia "WALL" 8kW Traditional Stove with Built-In Controls -- Wall-mounted inside the cabin, powered by a dedicated 240V/30AMP hardwired circuit installed by a certified electrician. Ideal operating temperature is 170 to 185 degrees Fahrenheit; maximum is 190 degrees.

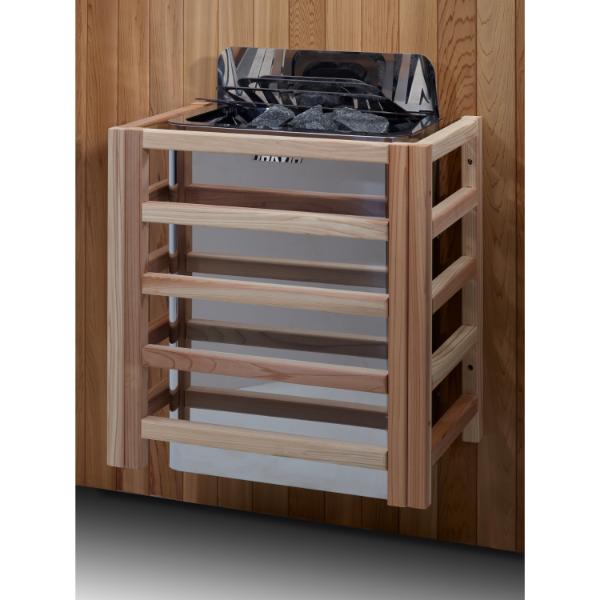

• Stove Guard Included -- A wood housing assembles around the Harvia stove and mounts to the interior wall panel to protect occupants from the heater surface during sessions. The wood housing must be installed after the heater is mounted by a certified electrician.
• 6-Person Capacity -- Interior dimensions of 75 inches wide by 67.2 inches deep by 75 inches tall provide genuine room for six adults on the two-tier bench system.
• Two-Tier Bench System -- The Bergen uses both first-level and second-level bench supports with two full bench panels. The second-level support beam is a Bergen-specific component that installs first, before the bench supports slide into the side wall vertical guides. Both bench levels connect LED harnesses before being secured in place.
• Outdoor and Indoor Rated -- The GDI-8206-01 is rated for both outdoor and indoor installation. The all-weather composite Espresso exterior handles outdoor exposure without annual stain maintenance. A waterproof cover is recommended when not in use outdoors.
• All-Weather Composite Exterior with Canadian Red Cedar Interior -- The exterior is all-weather composite (Espresso finish) requiring no stain maintenance. The interior is fully lined in natural Canadian Red Cedar -- walls, ceiling, benches, and backrest -- left completely natural without stain or finish. The interior must remain natural; no stain or finish should be applied.
• Custom Production Unit -- The Bergen is a custom production, limited-quantity model. Availability is subject to Golden Designs' production schedule.

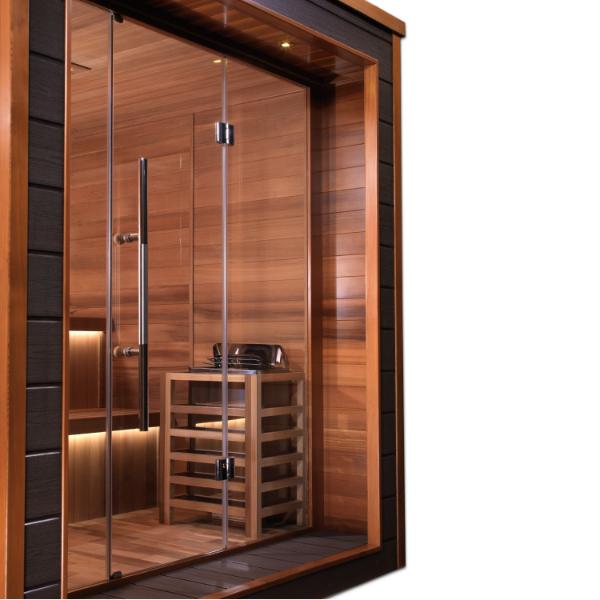

• Clear Tempered Glass Door -- The entry door is clear tempered glass providing full visibility and maximum natural light into the Canadian Red Cedar interior.
• Oversize Interior Chromotherapy Color Lighting System with Red Light Therapy -- Operated via remote control from inside the cabin. Functions include color selection, white/reading light mode, and red light therapy (press the white light button twice). Remote must be used from inside the sauna room.
• Interior Bench Accent Lighting -- Bench-level accent lighting connects via LED harness to the rear wall panel during bench installation, controlled via the Light/BT control panel.
• Exterior Roof Accent Lighting -- Integrated accent lighting along the exterior roofline.
• Single Control Panel on Rear Wall Panel -- The Light/BT control panel is located on the REAR WALL PANEL, alongside the built-in performance speakers. Upper vent is on the left side wall panel; lower vent is on the right side wall panel, both toward the front of the cabin.
• Touch Key Control Panel with FM Radio and Bluetooth -- Manages chromotherapy lighting, bench lights, FM radio, and Bluetooth audio. Touch key technology with a 3-minute auto-lock (press and hold the power button to unlock). Bluetooth pairs without a password; display shows "bLU". FM accessible via TUN-/TUN+ buttons; press and hold FM to auto-search stations.
• Built-In Performance Speakers -- Located on the rear wall panel; deliver Bluetooth or FM audio directly inside the cabin.
• Exterior Roof Panel Snow Rating -- The exterior roof panel can hold approximately 20 pounds of snow per square inch.
• Two-Piece Exterior Roof with Adhesive Roofing Paper Seam -- The exterior roof installs in two sections meeting at the center. Adhesive roofing paper covers the center seam.
• Single 240V/30AMP Stove Circuit Plus Separate 120V/15AMP Lighting Circuit
• Two separate circuits are required: a 240V/30AMP hardwired circuit for the Harvia stove, and a separate 120V/15AMP outlet for the Light/BT control panel (lights and audio). These circuits operate independently.
• Three Adults Required for Assembly -- The GDI-8206-01 requires three adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders.
• Ships in 10 Boxes -- The Bergen arrives in 10 boxes via LTL freight on a pallet. Curbside delivery only.
• 5-Year Warranty on Wood Structure, Control Panel, and Harnesses -- Golden Designs warrants the sauna room, control panel, and harnesses for 5 years from original date of purchase (when properly maintained). Harvia stove is covered under its own manufacturer warranty. Warranty registration requires mailing the completed warranty card and copy of sales receipt within 60 days of purchase date.






What's Included

ALL GDI-8206-01 CONFIGURATIONS INCLUDE:

• All-weather composite exterior cabin structural kit (Espresso finish) -- main interior floor panel, left side wall panel (upper vent), rear wall panel (control panel and speakers pre-mounted), right side wall panel (lower vent), interior front wall panel, exterior front floor panel, exterior front roof panel, exterior front wall panel (clear tempered glass door pre-hung), interior roof panel (ceiling lighting pre-mounted), exterior roof panel (two pieces with adhesive roofing paper for center seam)
• Harvia "WALL" 8kW traditional sauna stove with built-in controls and stove stones (shipped separately)
• Stove guard wood housing
• Second-level support beam (GDI-8206-01 specific -- installs before bench supports)
• First-level bench support and bench
• Second-level bench support and bench (GDI-8206-01 only; first-level bench support and bench only on GDI-8202-01 and GDI-8203-01)
• Canadian Red Cedar natural interior finish throughout (walls, ceiling, benches, backrest)
• Interior backrest with bench accent lighting (LED harness connects to rear wall panel)
• Oversize interior chromotherapy color lighting system with red light therapy feature and remote control
• Exterior roof accent lighting
• Single Light/BT control panel (touch key; manages chromotherapy lighting, bench lights, Bluetooth audio, and FM radio; 3-minute auto-lock; located on rear wall panel)
• Built-in performance speakers (rear wall panel)
• Clear tempered glass door with door handle
• Sandglass (sauna sand timer)
• Wooden bucket and scoop
• All assembly hardware and screws - Owner's manual



NOT INCLUDED / SOLD SEPARATELY:

• Sauna foundation or base (concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck -- customer responsibility; if installed directly on ground, support cradles must rest on cinder blocks or similar to prevent settling)
• Electrical wiring and circuit installation: dedicated 240V/30AMP hardwired circuit for Harvia stove, PLUS a separate 120V/15AMP outlet for Light/BT control panel -- all connections must be made by a certified electrician; copper wire with 90-degree Celsius rating required; aluminum wiring not permitted
• Waterproof cover for outdoor installation during periods of non-use (recommended; sold separately)
• Additional accessories (robe hooks, thermometer -- available separately)



INSTALLATION NOTE: Location must be dry, level, and away from any water source. Three adults are required for assembly. The surface must support the assembled weight plus occupants, which can exceed 1,000 lbs. Approved base types include concrete slab, concrete pavers, gravel, cinder blocks, and solid wood deck. If placed directly on the ground, support cradles must rest on cinder blocks or similar structure to prevent settling. The Bergen requires TWO separate electrical circuits: a 240V/30AMP hardwired circuit for the Harvia stove, and a separate 120V/15AMP outlet for the Light/BT control panel. For the Harvia WALL stove, the electrician must run the power cord through the vent hole in the RIGHT SIDE WALL PANEL and close the vent before mounting the heater -- the vent cannot be opened once the heater is installed. The stove guard wood housing must be installed after the heater is mounted. When installing the exterior roof panel, the adhesive roofing paper must cover the center seam where the two roof panel pieces meet. All electrical connections must be made by a certified licensed electrician using copper wire rated at 90 degrees Celsius minimum; aluminum wiring is not permitted. Warranty registration requires mailing the completed warranty card and a copy of the sales receipt to Golden Designs within 60 days of purchase.





Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Bergen" 6 Person Outdoor-Indoor Traditional Sauna
Model Number: GDI-8206-01
Collection: Modern Series Outdoor-Indoor Traditional Sauna
Product Type: Outdoor/Indoor traditional sauna -- electric stove only, no infrared
Exterior Material: All-weather composite construction (Espresso finish)
Interior Material: Natural Canadian Red Cedar (no stain; must remain natural)
Production Status: Custom production unit -- limited quantity available
Use: Indoor or Outdoor / Residential / Light Commercial

EXTERIOR DIMENSIONS:
Assembled Dimensions Exterior (W x D x H): 79.2 in x 84.7 in x 88.3 in

INTERIOR DIMENSIONS:
Interior Dimensions (W x D x H): 75 in x 67.2 in x 75 in

WEIGHT:
Assembled Weight: 1,275 lbs
Shipping Weight: 1,520 lbs
LTL Pallet Dimensions: 90 in W x 52 in D x 91 in H

SHIPPING:
Ships in: 10 boxes
Carton A: 78 in W x 6 in D x 86 in H, 236 lbs
Carton B: 82 in W x 8 in D x 89 in H, 225 lbs
Carton C: 85 in W x 7 in D x 89 in H, 176 lbs
Carton D: 85 in W x 7 in D x 89 in H, 176 lbs
Carton E: 78 in W x 10 in D x 82 in H, 225 lbs
Carton F: 46 in W x 11 in D x 85 in H, 207 lbs
Carton G: 6 in W x 20 in D x 27 in H, 13 lbs
Carton H: 12 in W x 12 in D x 16 in H, 5 lbs
Stove: 13 in W x 20 in D x 28 in H, 35 lbs
Stones: 11 in W x 16 in D x 6 in H, 45 lbs
Delivery Method: LTL freight, curbside only, pallet delivery
Ships From: Ontario, CA (ZIP 91761)
Processing Time: 1 business day

CONSTRUCTION:
Exterior: All-weather composite material (Espresso finish)
Interior: Natural Canadian Red Cedar (walls, ceiling, benches, backrest)
Door: Clear tempered glass with door handle
Bench System: Two-tier (second-level support beam installs first; then first and second level bench supports slide into side wall vertical guides; two bench panels with LED harness connections)
Control Panel Location: Rear wall panel (along with built-in performance speakers)
Upper Vent: Left side wall panel (upper, toward front of sauna)
Lower Vent: Right side wall panel (lower, toward front of sauna)
Roof: Two-piece exterior roof panel; adhesive roofing paper covers center seam; rated at approximately 20 lbs per square inch snow load
Capacity: 6 people

HEATING:
Stove: Harvia "WALL" 8kW with built-in controls
Stove Stones: Included
Stove Guard: Included (wood housing; mounts to wall panel after heater installation)
Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Maximum Temperature: 190 degrees Fahrenheit
Infrared System: None -- traditional stove only

LIGHTING AND AUDIO:
Interior Lighting: Oversize chromotherapy color lighting system with red light therapy feature; remote control included (must be used from inside sauna room; press white light button twice for red light therapy)
Bench Lighting: Interior backrest bench accent lighting (LED harness connects to rear wall panel)
Exterior Lighting: Exterior roof accent lighting
Control Panel: Single Light/BT panel (touch key; manages chromotherapy lighting, bench lights, Bluetooth, and FM radio; 3-minute auto-lock; press and hold power button to unlock; located on rear wall panel)
Bluetooth: Included (no password required; display shows "bLU"; TUN-/TUN+ scrolls songs; VOL-/VOL+ adjusts volume)
FM Radio: Included (press FM button; TUN-/TUN+ scrolls stations; press and hold FM to auto-search)
Audio: Built-in performance speakers (rear wall panel)
Control System Voltage: AC110V to AC240V, 50Hz/60Hz; Bluetooth range approximately 10 feet

ELECTRICAL:
Stove Circuit: Dedicated 240V/30AMP hardwired circuit (installed by certified electrician)
Lights and Audio Circuit: Separate 120V/15AMP outlet
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all connections must be made by a certified licensed electrician

ASSEMBLY:
Adults Required: 3
Tools Required: Battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, 2 ladders

BASE REQUIREMENTS:
Approved base types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
If placed directly on ground, support cradles must rest on cinder blocks or similar structure to prevent settling
Surface must be level, dry, and capable of supporting assembled weight plus occupants (can exceed 1,000 lbs)
Base not included

MAINTENANCE:
Interior: Wipe with plain water and soft cloth only; no chemical-based or aerosol cleaners; interior must remain natural (no stain). Cedar wood may start turning grey after approximately 1-2 years without UV protectant when applicable.
Exterior: All-weather composite -- no stain maintenance required
Heater and stones: Follow Harvia manufacturer instructions; heater must be off and covered during interior cleaning

WARRANTY:
Sauna Room, Control Panel, Harnesses: 5 years from original date of purchase (when properly maintained)
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration: Mail completed warranty card with copy of sales receipt within 60 days of purchase date to: Golden Designs, Inc., 3550 Jurupa Street, Unit B, Ontario, CA 91761
Online Registration: https://app.goldendesigninc.com/public/RegisteredProduct



Manuals / Downlads

Golden Designs "Bergen" Manual
