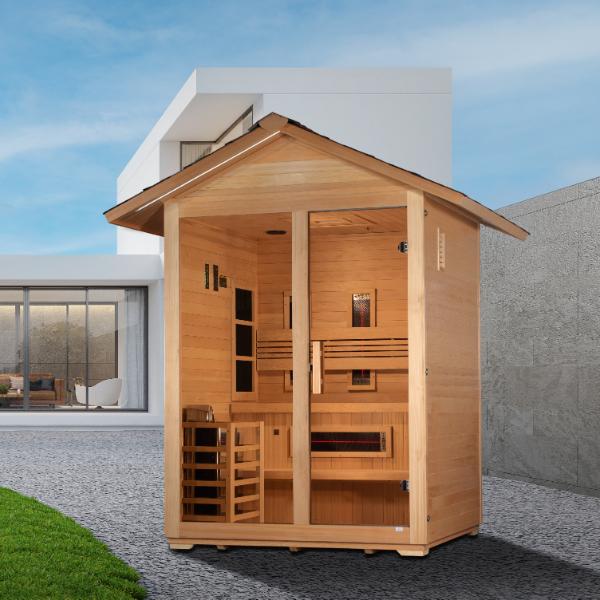

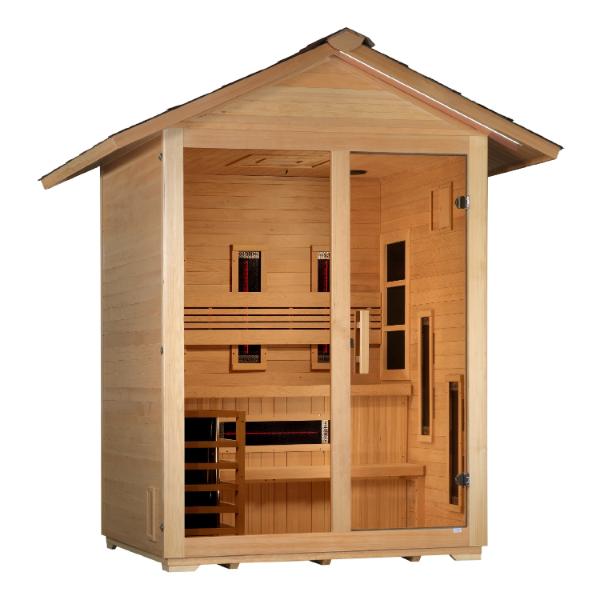

Golden Designs "Carinthia" 3 Person Hybrid (PureTech™ Full Spectrum IR or Traditional Stove) Outdoor Sauna (GDI-8123-01)



Description

Not every outdoor sauna session should look the same. Some days the body wants the deep, ambient heat of a traditional stove pushing the cabin to 180 degrees -- the kind of heat that comes with steam when you pour water on the rocks and that works regardless of what the weather is doing outside. Other days the better session is the lower-temperature, longer-duration infrared experience that penetrates differently and works well precisely because it doesn't push the air as hard. The Carinthia is built for both. It is a true hybrid cabin -- a Harvia "WALL" 8kW traditional stove and a full-spectrum PureTech infrared system installed in the same structure, switchable by session without changing anything about how the sauna is installed.



At 3-person capacity, the Carinthia is the right size for a couple, a small household, or anyone who wants a serious outdoor sauna without the footprint of a 5-person cabin. The actual cabinet measures 63 inches wide by 56.7 inches deep, with the gable roof overhang bringing the total exterior to 84.1 inches wide by 73.6 inches deep by 97.4 inches tall. Inside, the 59.2 by 53.2 by 78-inch interior gives three adults genuine room to sit, and the bench system provides enough length to recline during an infrared session. The cabin is built from 100% natural reforested Canadian Hemlock with a waterproof clear stain on the exterior -- the same construction and finish system used across Golden Designs' Classic Series outdoor line, chosen for its performance in year-round outdoor exposure.



The infrared side of the hybrid runs on 8 total emitters -- 2 Carbon PureTech Near Zero EMF FAR infrared heating panels and 6 near-infrared heating elements -- delivering full-spectrum near, mid, and far wavelength coverage at near-zero EMF. The infrared system is ideal when the exterior temperature is 45 degrees Fahrenheit or warmer. The traditional stove runs any time, regardless of outside temperature, reaching the 170 to 185 degree ideal range with the ability to push to 190 degrees for a more intense session. Both systems run on a single dedicated 240V/40AMP circuit -- one electrical installation covers both heating modes. The two systems operate independently and are not run simultaneously.



Inside, the Carinthia is finished with a bronze privacy tempered glass door, interior chromotherapy color lighting with a dedicated red light therapy feature, exterior roof accent lighting, and a touch key control panel with built-in FM radio and Bluetooth audio feeding the built-in performance speakers. The stove guard wood housing installs around the Harvia stove to protect occupants from the heater surface. The sandglass, bucket, and scoop ship with the unit, so an authentic traditional session is ready from the first use.



The Carinthia ships in 9 cartons via LTL freight and assembles with a battery-operated screwdriver, rubber mallet, and two ladders. Three adults are recommended for assembly. The gable roof with asphalt shingles is part of the structural kit and provides permanent, year-round weather protection without requiring a separate rain cover during normal outdoor use.



Backyard Prime Living is a certified authorized reseller of Golden Designs. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.





Features

• True Hybrid Heating System -- The Carinthia houses both a Harvia "WALL" 8kW traditional sauna stove and a full-spectrum PureTech infrared system in the same cabin. The two systems do not operate simultaneously, but switching between them session by session means the same sauna can deliver a low-temperature infrared experience or a full-intensity traditional steam heat depending on the day, the season, or the user.
• Full Spectrum Infrared with 8 Total Emitters -- 2 Carbon PureTech Near Zero EMF FAR infrared heating panels and 6 near-infrared heating elements deliver full-spectrum coverage across near, mid, and far infrared wavelengths at near-zero EMF. The infrared system is ideal when the exterior temperature is 45 degrees Fahrenheit or warmer.
• Harvia "WALL" 8kW Traditional Stove with Built-In Controls -- The traditional side of the hybrid runs on a Harvia "WALL" 8kW stove, wall-mounted inside the cabin with built-in controls. The Harvia WALL is one of the most trusted stoves in traditional sauna. Ideal operating temperature is 170 to 185 degrees Fahrenheit; maximum is 190 degrees. The traditional stove operates at any exterior temperature.
• Stove Guard Included -- A three-sided wood housing installs around the Harvia stove to protect occupants from direct contact with the heater surface during sessions.
• 3-Person Capacity -- Interior dimensions of 59.2 inches wide by 53.2 inches deep by 78 inches tall provide genuine room for three adults, with bench length sufficient for reclining during infrared sessions. The Carinthia is the right scale for couples, small households, or buyers who want a serious outdoor hybrid sauna without a 5-person footprint.
• Natural Reforested Canadian Hemlock Construction -- Built from 100% natural reforested Canadian Hemlock with a waterproof clear stain on the exterior. The clear stain requires annual reapplication to maintain its protective qualities and prevent the hemlock from graying under UV exposure.
• Peaked Gable Roof with Asphalt Shingles -- A full gable roof with asphalt shingles is part of the structural kit and provides permanent, year-round weather protection. The roof overhang extends the total exterior footprint to 84.1 inches wide by 73.6 inches deep.
• Pre-Cut Panel System with Buckle-Clasp Assembly -- Wall panels, floor panel, bench system, and roof panels arrive pre-cut and pre-finished. Panels lock together via integrated buckles, with three adults and a battery-operated screwdriver recommended for assembly.
• Bronze Privacy Tempered Glass Door -- The entry door is bronze-tinted tempered glass with stainless steel hinges and handle, providing privacy from outside view while giving the front wall a refined, finished appearance.
• Interior Chromotherapy Color Lighting System with Red Light Therapy -- Full chromotherapy color lighting is managed via remote control from inside the cabin, with a dedicated red light therapy feature accessible through the same remote.
• Exterior Roof Accent Lighting -- Integrated accent lighting along the exterior roofline creates ambient presence after dark.
• Touch Key Interior Control Panel with FM Radio and Bluetooth -- The touch key control panel manages roof lighting, chromotherapy lighting, FM radio, and Bluetooth audio from inside the cabin. Auto-locks after 3 minutes of inactivity; press and hold the power button to unlock.
• Built-In Performance Speakers -- Interior audio speakers deliver sound from Bluetooth streaming or FM radio directly inside the cabin.
• Sandglass, Bucket, and Scoop Included -- Traditional sauna accessories ship in the kit for immediate use from the first session.
  Single 240V/40AMP Circuit for Both Heating Systems -- One dedicated 240V/40AMP hardwired circuit covers both the Harvia stove and the full-spectrum infrared system, simplifying the electrical installation versus running two separate systems on separate circuits.
• Outdoor Use Only -- The Carinthia is rated for outdoor installation. The gable roof provides weather protection; a waterproof cover is recommended when the sauna is not in use for extended periods.
• Residential and Light Commercial Use -- The Carinthia is rated for both residential backyard installations and light commercial applications.
• Ships in 9 Cartons -- The sauna arrives in 9 separate cartons via LTL freight on a pallet. Curbside delivery only.
• 5-Year Residential Warranty / 1-Year Commercial Warranty -- Golden Designs warrants the wood structure, control panel, and harnesses for 5 years for residential use and 1 year for commercial use from original date of purchase. Harvia stove is covered under its own manufacturer warranty. Warranty registration required within 60 days of purchase.





What's Included

ALL GDI-8123-01 CONFIGURATIONS INCLUDE:

• Canadian Hemlock cabin structural kit -- floor panel, rear wall panel, left side wall panel, right side wall panel, front wall panel (includes bronze privacy tempered glass door and fixed glass stationary side panel), inner roof panel, left and right exterior roof panels with asphalt shingles, ridge tile
• Triangular exterior roof panel supports
• Harvia "WALL" 8kW traditional sauna stove with built-in controls and stove stones (shipped in separate carton)
• Three-sided stove guard wood housing
• Full-spectrum PureTech infrared system -- 2 Carbon PureTech Near Zero EMF FAR infrared heating panels and 6 near-infrared heating elements, pre-installed in cabin wall panels
• Bench support panels and full bench system
• Entry step
• Interior backrest with accent lighting
• Interior chromotherapy color lighting system with red light therapy feature and remote control
• Exterior roof accent lighting (integrated into exterior roof panel)
• Touch key interior control panel with FM radio and Bluetooth
• Built-in performance speakers
• Stainless steel door hinges and door handle (interior and exterior)
• Sandglass (sauna sand timer)
• Wooden bucket and scoop
• All assembly hardware, buckle clamps, and screws
• Owner's manual

NOT INCLUDED / SOLD SEPARATELY:

• Sauna foundation or base (concrete slab, pavers, gravel, cinder blocks, or solid wood deck -- customer responsibility)
• Electrical wiring and circuit installation: dedicated 240V/40AMP circuit (hardwired) covering both Harvia stove and full-spectrum infrared system -- all connections must be made by a certified electrician; copper wire with 90-degree Celsius rating required; aluminum wiring not permitted
• Exterior waterproof cover for extended non-use periods (recommended; sold separately)
• Annual exterior clear waterproof stain reapplication (customer maintenance responsibility; not included)
• Thermometer (not confirmed in standard kit -- verify with Golden Designs)
• Additional accessories (robe hooks, magazine rack, drink shelf -- available separately)

INSTALLATION NOTE: Location must be dry, level, and away from any water source. The sauna surface must support the assembled weight plus occupants, which can exceed 1,000 lbs. Approved base types include concrete slab, concrete pavers, gravel, cinder blocks, and solid wood deck. Three adults are required for installation. For the Harvia WALL stove, the electrician must run the power line through the dedicated vent hole in the wall panel and close the vent before mounting the heater -- the vent cannot be opened once the heater is installed. All electrical connections must be made by a certified licensed electrician using copper wire rated at 90 degrees Celsius minimum; aluminum wiring is not permitted. The exterior clear waterproof stain must be reapplied annually to prevent UV-related graying of the hemlock. The infrared and traditional stove systems do not operate simultaneously. Infrared operation is ideal when exterior temperature is 45 degrees Fahrenheit or warmer; the traditional stove operates at any exterior temperature.





Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Carinthia" 3 Person Hybrid (PureTech Full Spectrum IR or Traditional Stove) Outdoor Sauna
Model Number: GDI-8123-01
Collection: Classic Series Outdoor Hybrid Sauna
Product Type: Outdoor hybrid sauna -- full-spectrum infrared and traditional stove
Wood Species: Natural Reforested Canadian Hemlock
Exterior Finish: Waterproof clear stain (requires annual reapplication)
Roof: Asphalt shingle gable roof
Use: Residential / Light Commercial

EXTERIOR DIMENSIONS:
Assembled Dimensions with Roof Overhang (W x D x H): 84.1 in x 73.6 in x 97.4 in
Assembled Dimensions without Overhang / Actual Cabinet (W x D x H): 63 in x 56.7 in x 97.4 in

INTERIOR DIMENSIONS:
Interior Dimensions (W x D x H): 59.2 in x 53.2 in x 78 in

WEIGHT:
Assembled Weight: 750 lbs
Shipping Weight: 930 lbs
LTL Pallet Dimensions: 86 in W x 38 in D x 80 in H
LTL Pallet Weight: 950 lbs

SHIPPING:
Ships in: 9 cartons
Carton A: 65 in W x 7 in D x 80 in H, 198 lbs
Carton B: 57 in W x 11 in D x 81 in H, 157 lbs
Carton C: 57 in W x 10 in D x 63 in H, 128 lbs
Carton D: 49 in W x 9 in D x 77 in H, 163 lbs
Carton E: 23 in W x 48 in D x 65 in H, 55 lbs
Carton F: 11 in W x 6 in D x 79 in H, 18 lbs
Carton G: 11 in W x 11 in D x 16 in H, 5 lbs
Stove Carton: 13 in W x 20 in D x 28 in H, 35 lbs
Stones Carton: 11 in W x 16 in D x 6 in H, 45 lbs
Delivery Method: LTL freight, curbside only, pallet delivery
Ships From: Ontario, CA (ZIP 91761)
Processing Time: 1 business day

CONSTRUCTION:
Material: Natural Reforested Canadian Hemlock
Exterior Finish: Waterproof clear stain (annual reapplication required)
Roof: Asphalt shingle gable roof with ridge tile
Door: Bronze privacy tempered glass with stainless steel hinges and handle
Interior Panels: Natural Canadian Hemlock (no stain; must remain natural)
Assembly System: Pre-cut panel buckle-clasp system; three adults required; battery-operated screwdriver, rubber mallet, and two ladders needed

HEATING SYSTEMS:
Traditional Stove: Harvia "WALL" 8kW with built-in controls
Stove Stones: Included
Stove Guard: Included (three-sided wood housing)
Traditional Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Traditional Maximum Temperature: 190 degrees Fahrenheit
Traditional Use Condition: Operates at any exterior temperature
Full Spectrum Infrared: 8 total emitters -- 2 Carbon PureTech Near Zero EMF FAR infrared heating panels, 6 near-infrared heating elements
Infrared Ideal Temperature Range: 118 to 132 degrees Fahrenheit
Infrared Maximum Temperature: 140 degrees Fahrenheit
Infrared Use Condition: Ideal when exterior temperature is 45 degrees Fahrenheit or warmer
Simultaneous Operation: Not supported -- traditional stove and infrared system operate independently

LIGHTING AND AUDIO:
Interior Lighting: Chromotherapy color lighting system with red light therapy feature; remote control included
Exterior Lighting: Roof accent lighting (integrated into exterior roof panel)
Control Panel: Touch key technology; manages roof lighting, chromotherapy lighting, FM radio, and Bluetooth audio; 3-minute auto-lock safety feature
Audio: Built-in performance speakers
Control System Voltage: AC110V to AC240V, 50Hz/60Hz

ELECTRICAL:
Required Circuit: Dedicated 240V/40AMP hardwired circuit (covers both Harvia stove and full-spectrum infrared system)
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all connections must be made by a certified licensed electrician

CAPACITY: 3 people

BASE REQUIREMENTS:
Approved base types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
Surface must be level, dry, and capable of supporting assembled weight plus occupants (can exceed 1,000 lbs)
Base not included

MAINTENANCE:
Exterior stain: Reapply clear waterproof stain annually; more frequently in severe climates
Interior: Wipe with plain water and soft cloth only; no chemical-based or aerosol cleaners; interior must remain natural (no stain)
Heater and stones: Follow Harvia manufacturer instructions; heater must be off and covered during interior cleaning

WARRANTY:
Wood Structure, Control Panel, Harnesses (Residential): 5 years from original date of purchase
Wood Structure, Control Panel, Harnesses (Commercial): 1 year from original date of purchase
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration Required: Within 60 days of purchase date
Warranty Registration: https://app.goldendesigninc.com/public/RegisteredProduct
