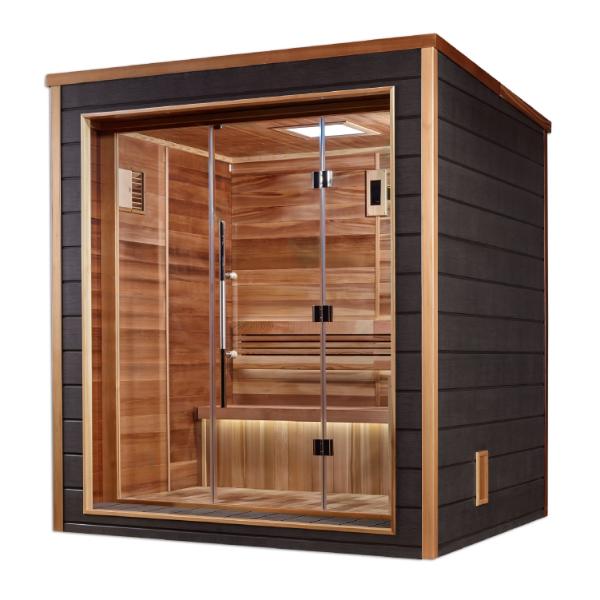

Golden Designs "Drammen" 3 Person Outdoor-Indoor Traditional Sauna (GDI-8203-01)



Description

The Drammen is the traditional-only counterpart to the Modern Series hybrid models -- built on the same all-weather composite exterior and Canadian Red Cedar interior platform, with the same Espresso finish and the same Modern Series silhouette, but configured for one thing and one thing only: a Harvia "WALL" 8kW traditional stove at its best. There is no infrared panel, no mode switching, no split circuit, and no question about which system you're in. You light the stove, you wait thirty to forty-five minutes, and you have the full-intensity traditional sauna experience in a 3-person cabin that can live outdoors year-round or inside an amenity space, a garage, or a wellness room.



The Drammen is a custom production unit with limited quantity available. The exterior is all-weather composite construction in an Espresso finish that requires no annual stain maintenance and handles direct outdoor exposure including rain and sun without the weathering concerns of natural wood exteriors. The interior is an entirely different story -- every surface is natural Canadian Red Cedar: walls, ceiling, bench, and backrest, kept completely natural without stain or finish because the interior must remain natural. Red cedar's aromatic oils are the defining sensory quality of this model, and they are present the moment the stove fires up. The manual notes that a small percentage of the population with Multiple Chemical Sensitivity may have an adverse reaction to Canadian Red Cedar's aroma, and advises discontinuing use if symptoms occur.

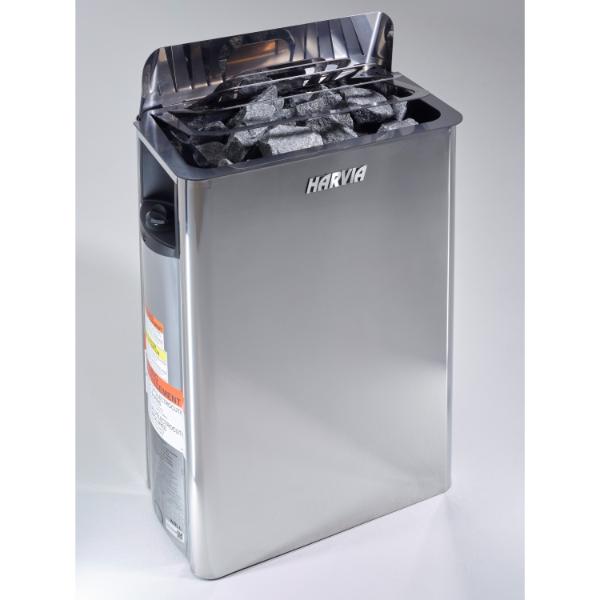

The stove is a Harvia "WALL" 8kW unit with built-in controls, more than adequate for the Drammen's 3-person interior. It runs on a dedicated 240V/40AMP hardwired circuit installed by a certified electrician -- and this is a key distinction from the Modern Series hybrid models. The Drammen's 40AMP stove circuit is a separate, dedicated line. The lighting and audio system runs on a completely independent 120V/15AMP outlet: the single Light/BT control panel manages the oversize chromotherapy color lighting system with red light therapy, bench accent lighting, FM radio, and Bluetooth audio through the built-in performance speakers, all independent of the stove. The control panel and speakers are located on the rear wall panel (not the right side wall panel as on the Karlstad and Nora hybrid models -- the Drammen places both on the rear wall). Upper vent is on the left side wall panel; lower vent is on the right side wall panel, both toward the front of the cabin.



Assembly requires three adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders. The Drammen is a single-bench-level model: the GDI-8203-01 uses only the first-level bench support and bench, not the two-level system of the 6-person Bergen. The exterior roof panel installs in two pieces that meet at the center; adhesive roofing paper covers the seam. The roof can hold approximately 20 pounds of snow per square inch. When installed outdoors and not in use, a waterproof cover is recommended.



Backyard Prime Living is a certified authorized reseller of Golden Designs. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.





Features

• Traditional Stove Only -- No Infrared -- The Drammen is a pure traditional sauna with a Harvia "WALL" 8kW stove as the sole heat source. No infrared panels, no mode switching, no dual circuit. The full traditional steam and loyly experience in the Modern Series all-weather cabinet.

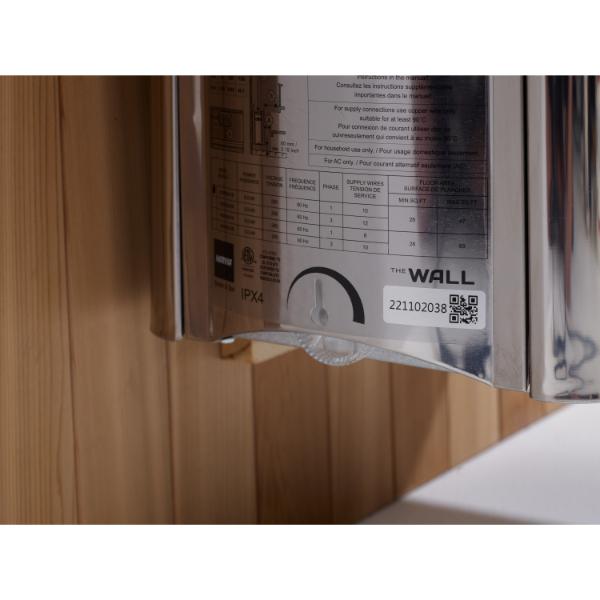

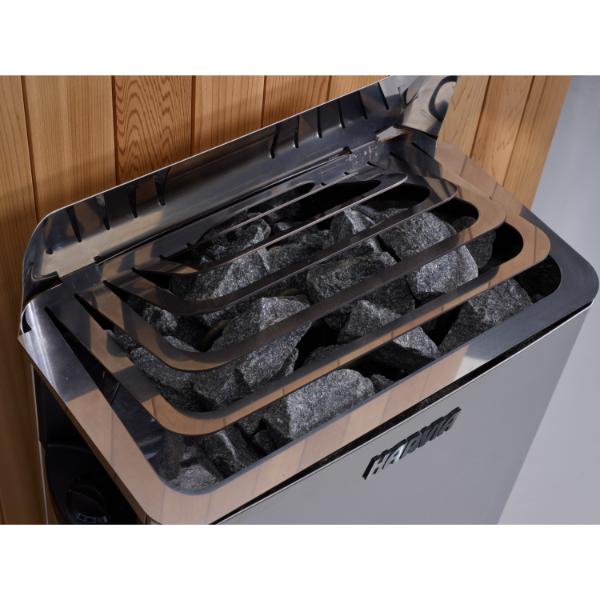

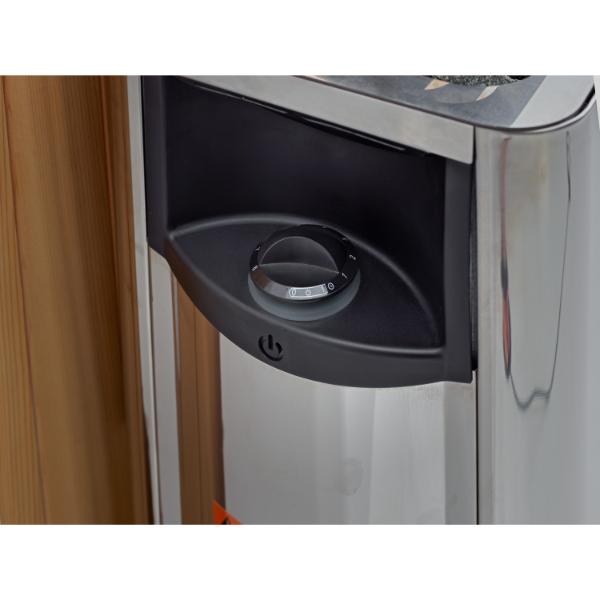

• Harvia "WALL" 8kW Traditional Stove with Built-In Controls -- Wall-mounted inside the cabin, powered by a dedicated 240V/40AMP hardwired circuit. Ideal operating temperature is 170 to 185 degrees Fahrenheit; maximum is 190 degrees.

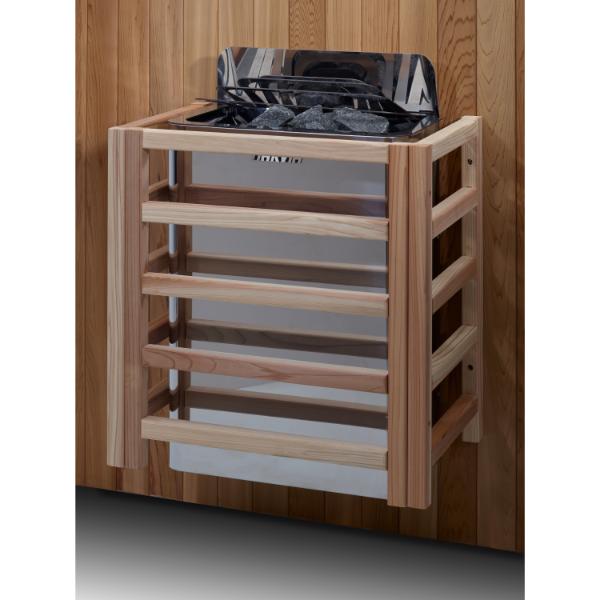

• Stove Guard Included -- A wood housing assembles around the Harvia stove and mounts to the interior wall panel to protect occupants from the heater surface during sessions.
• 3-Person Capacity -- Interior dimensions of 75 inches wide by 53.4 inches deep by 75 inches tall provide comfortable seating for three adults.

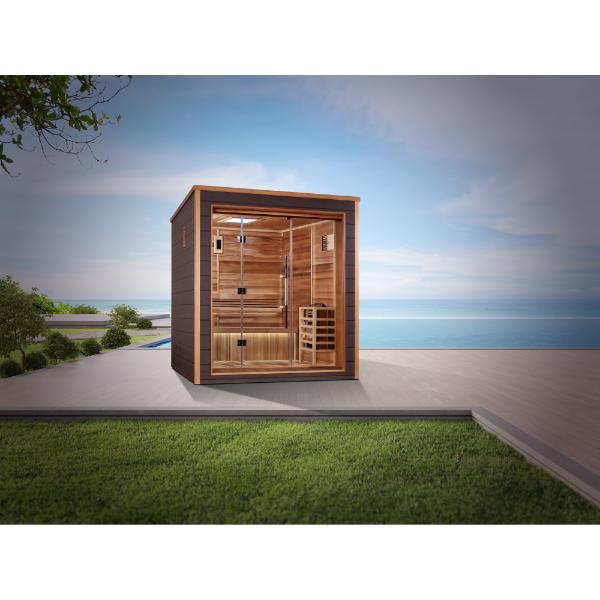

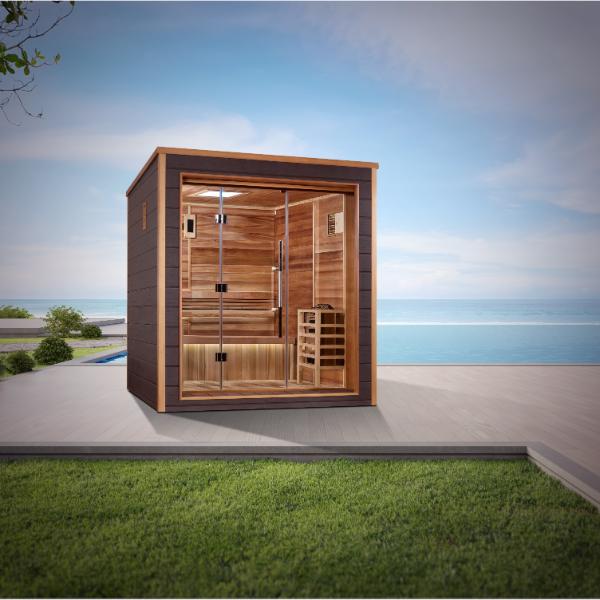

• Outdoor and Indoor Rated -- The GDI-8203-01 is rated for both outdoor and indoor installation. The all-weather composite Espresso exterior handles outdoor exposure without annual stain maintenance. A waterproof cover is recommended when not in use outdoors.
• All-Weather Composite Exterior with Canadian Red Cedar Interior -- The exterior is all-weather composite (Espresso finish) requiring no stain maintenance. The interior is fully lined in natural Canadian Red Cedar -- walls, ceiling, bench, and backrest -- left completely natural. The interior must remain natural; no stain or finish should be applied.
• Custom Production Unit -- The Drammen is a custom production, limited-quantity model. Availability is subject to Golden Designs' production schedule.
• Clear Tempered Glass Door -- The entry door is clear tempered glass with a door handle, providing full visibility and natural light into the Canadian Red Cedar interior.
• Single-Tier Bench -- The GDI-8203-01 uses only the first-level bench support and bench. The two-level bench support system used in the 6-person Bergen (GDI-8206-01) does not apply to this model.

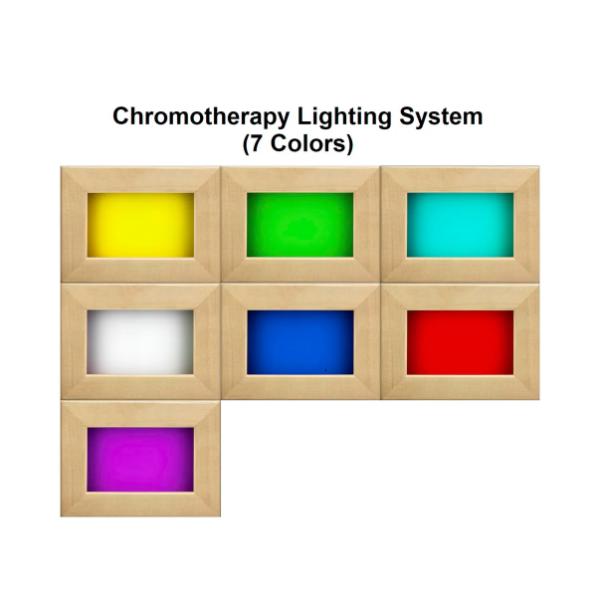

• Oversize Interior Chromotherapy Color Lighting System with Red Light Therapy -- Operated via remote control from inside the cabin. Functions include color selection, white/reading light mode, and red light therapy (press the white light button twice). Remote must be used from inside the sauna room.
• Interior Bench Accent Lighting -- Bench-level accent lighting is connected during bench installation and controlled via the Light/BT control panel.
• Exterior Roof Accent Lighting -- Integrated accent lighting along the exterior roofline.
• Single Control Panel on Rear Wall Panel -- The Light/BT control panel is located on the REAR WALL PANEL (not the right side wall panel as on the Karlstad and Nora hybrid models). Speakers are also on the rear wall panel. Upper vent is on the left side wall panel; lower vent is on the right side wall panel, both toward the front of the cabin.
• Touch Key Control Panel with FM Radio and Bluetooth -- Manages chromotherapy lighting, bench lights, FM radio, and Bluetooth audio. Touch key technology with a 3-minute auto-lock (press and hold the power button to unlock). Bluetooth pairs without a password; display shows "bLU". FM accessible via TUN-/TUN+ buttons.
• Built-In Performance Speakers -- Located on the rear wall panel; deliver Bluetooth or FM audio directly inside the cabin.
• Two Separate Electrical Circuits -- The Harvia stove requires a dedicated 240V/40AMP hardwired circuit. The Light/BT control panel requires a separate 120V/15AMP outlet. The two circuits operate completely independently.
• Exterior Roof Panel with Adhesive Roofing Paper Seam -- The exterior roof installs in two sections that meet at the center. Adhesive roofing paper covers the center seam. The exterior roof panel can hold approximately 20 pounds of snow per square inch.
• Three Adults Required for Assembly -- The GDI-8203-01 requires three adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders.
• Ships in 9 Boxes -- The Drammen arrives in 9 boxes via LTL freight on a pallet. Curbside delivery only.
• 5-Year Warranty on Wood Structure, Control Panel, and Harnesses -- Golden Designs warrants the sauna room, control panel, and harnesses for 5 years from original date of purchase (when properly maintained). Harvia stove is covered under its own manufacturer warranty. Warranty registration required within 60 days of purchase.





What's Included

ALL GDI-8203-01 CONFIGURATIONS INCLUDE:

• All-weather composite exterior cabin structural kit (Espresso finish) -- main interior floor panel, left side wall panel (upper vent), rear wall panel (control panel and speakers pre-mounted), right side wall panel (lower vent), interior front wall panel, exterior front floor panel, exterior front roof panel, exterior front wall panel (clear tempered glass door pre-hung), interior roof panel (ceiling lighting pre-mounted), exterior roof panel (two pieces with adhesive roofing paper for center seam)
• Harvia "WALL" 8kW traditional sauna stove with built-in controls and stove stones (shipped separately)
• Stove guard wood housing (shipped separately as Stone Guard carton)
• First-level bench support and bench (slides into side wall vertical guides; single tier only on GDI-8203-01)
• Canadian Red Cedar natural interior finish throughout (walls, ceiling, bench, backrest)
• Interior backrest with bench accent lighting (LED harness connects to rear wall panel during installation)
• Oversize interior chromotherapy color lighting system with red light therapy feature and remote control
• Exterior roof accent lighting
• Single Light/BT control panel (touch key; manages chromotherapy lighting, bench lights, Bluetooth audio, and FM radio; 3-minute auto-lock; located on rear wall panel)
• Built-in performance speakers (rear wall panel)
• Clear tempered glass door with door handle
• Sandglass (sauna sand timer)
• Wooden bucket and scoop
• All assembly hardware and screws
• Owner's manual



NOT INCLUDED / SOLD SEPARATELY:

• Sauna foundation or base (concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck -- customer responsibility; if installed on ground, support cradles must rest on cinder blocks or similar to prevent settling)
• Electrical wiring and circuit installation: dedicated 240V/40AMP hardwired circuit for Harvia stove, PLUS a separate 120V/15AMP outlet for Light/BT control panel -- all connections must be made by a certified electrician; copper wire with 90-degree Celsius rating required; aluminum wiring not permitted
• Waterproof cover for outdoor installation during periods of non-use (recommended; sold separately)



INSTALLATION NOTE: Location must be dry, level, and away from any water source. Three adults are required for assembly. The surface must support the assembled weight plus occupants (can exceed 1,000 lbs). Approved base types include concrete slab, concrete pavers, gravel, cinder blocks, and solid wood deck. Note: the Drammen uses TWO separate electrical circuits -- a 240V/40AMP hardwired circuit for the Harvia stove (installed by a certified electrician) and a separate 120V/15AMP outlet for the Light/BT control panel. This is different from the hybrid models (Nora, Visby, Karlstad) which run both heating systems on a single 240V circuit. For the Harvia WALL stove, the electrician must run the power line through the vent hole in the RIGHT SIDE WALL PANEL and close the vent before mounting the heater -- the vent cannot be opened once the heater is installed. When installing the exterior roof panel, the adhesive roofing paper must be used to cover the center seam where the two roof panel pieces meet. All electrical connections must be made by a certified licensed electrician using copper wire rated at 90 degrees Celsius minimum; aluminum wiring is not permitted. Do not use the sauna during electrical storms.





Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Drammen" 3 Person Outdoor-Indoor Traditional Sauna
Model Number: GDI-8203-01
Collection: Modern Series Outdoor-Indoor Traditional Sauna
Product Type: Outdoor/Indoor traditional sauna -- electric stove only, no infrared
Exterior Material: All-weather composite construction (Espresso finish)
Interior Material: Natural Canadian Red Cedar (no stain; must remain natural)
Production Status: Custom production unit -- limited quantity available
Use: Indoor or Outdoor / Residential / Light Commercial

EXTERIOR DIMENSIONS:
Assembled Dimensions Exterior (W x D x H): 79.2 in x 71 in x 88.3 in

INTERIOR DIMENSIONS:
Interior Dimensions (W x D x H): 75 in x 53.4 in x 75 in

WEIGHT:
Assembled Weight: 1,100 lbs
Shipping Weight: 1,310 lbs
LTL Pallet Dimensions: 90 in W x 50 in D x 88 in H

SHIPPING:
Ships in: 9 boxes
Carton A: 78 in W x 5 in D x 86 in H, 236 lbs
Carton B: 82 in W x 8 in D x 88 in H, 210 lbs
Carton C: 72 in W x 10 in D x 88 in H, 270 lbs
Carton D: 68 in W x 9 in D x 78 in H, 212 lbs
Carton E: 41 in W x 12 in D x 83 in H, 170 lbs
Stone Guard Carton: 7 in W x 20 in D x 28 in H, 9 lbs
Wood Barrel Carton: 12 in W x 12 in D x 16 in H, 6 lbs
Stove: 13 in W x 20 in D x 28 in H, 35 lbs
Stones: 11 in W x 16 in D x 6 in H, 45 lbs
Delivery Method: LTL freight, curbside only, pallet delivery
Ships From: Ontario, CA (ZIP 91761)
Processing Time: 1 business day

CONSTRUCTION:
Exterior: All-weather composite material (Espresso finish)
Interior: Natural Canadian Red Cedar (walls, ceiling, bench, backrest)
Door: Clear tempered glass with door handle
Bench System: Single-tier only (first-level bench support and bench; slides into side wall vertical guides)
Note: GDI-8202-01 and GDI-8203-01 have first-level bench support and bench only. Second-level support beam and bench are GDI-8206-01 (Bergen, 6-person) only.
Control Panel Location: Rear wall panel (along with built-in performance speakers)
Upper Vent: Left side wall panel (upper, toward front of sauna)
Lower Vent: Right side wall panel (lower, toward front of sauna)
Capacity: 3 people

HEATING:
Stove: Harvia "WALL" 8kW with built-in controls
Stove Stones: Included
Stove Guard: Included (wood housing; ships in separate Stone Guard carton)
Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Maximum Temperature: 190 degrees Fahrenheit
Infrared System: None -- traditional stove only

LIGHTING AND AUDIO:
Interior Lighting: Oversize chromotherapy color lighting system with red light therapy feature; remote control included (must be used from inside sauna room)
Bench Lighting: Interior backrest bench accent lighting (LED harness connects to rear wall panel)
Exterior Lighting: Exterior roof accent lighting
Control Panel: Single Light/BT panel; touch key technology; manages chromotherapy lighting, bench lights, Bluetooth, and FM radio; 3-minute auto-lock (press and hold power button to unlock). Located on rear wall panel.
Bluetooth: Included (no password required; display shows "bLU"; TUN-/TUN+ scrolls songs; VOL-/VOL+ adjusts volume)
FM Radio: Included (press FM button; TUN-/TUN+ scrolls stations; press and hold FM to auto-search)
Audio: Built-in performance speakers (rear wall panel)
Control System Voltage: AC110V to AC240V, 50Hz/60Hz; Bluetooth range approximately 10 feet

ELECTRICAL:
Stove Circuit: Dedicated 240V/40AMP hardwired circuit (installed by certified electrician)
Lights and Audio Circuit: Separate 120V/15AMP outlet
Note: The Drammen uses TWO separate circuits -- this is different from the Modern Series hybrid models (Nora/Visby/Karlstad) which run both heating systems on a single 240V circuit.
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all connections must be made by a certified licensed electrician

ROOF:
Exterior Roof: Two-piece panel system; adhesive roofing paper covers center seam
Snow Load Rating: Approximately 20 lbs per square inch

ASSEMBLY:
Adults Required: 3 (two adults required for GDI-8202-01 only; three adults required for GDI-8203-01 and GDI-8206-01)
Tools Required: Battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, 2 ladders

BASE REQUIREMENTS:
Approved base types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
Support cradles must rest on cinder blocks or similar structure if placed directly on ground
Surface must be level, dry, and capable of supporting assembled weight plus occupants (can exceed 1,000 lbs)
Base not included

MAINTENANCE:
Interior: Wipe with plain water and soft cloth only; no chemical-based or aerosol cleaners; interior must remain natural (no stain). Cedar wood may start turning grey after approximately 1-2 years without UV protectant maintenance when applicable.
Exterior: All-weather composite -- no stain maintenance required
Heater and stones: Follow Harvia manufacturer instructions; heater must be off and covered during interior cleaning

WARRANTY:
Sauna Room, Control Panel, Harnesses: 5 years from original date of purchase (when properly maintained)
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration Required: Within 60 days of purchase date
Warranty Registration: https://app.goldendesigninc.com/public/RegisteredProduct



Manuals / Downloads

Golden Designs "Drammen" Manual
