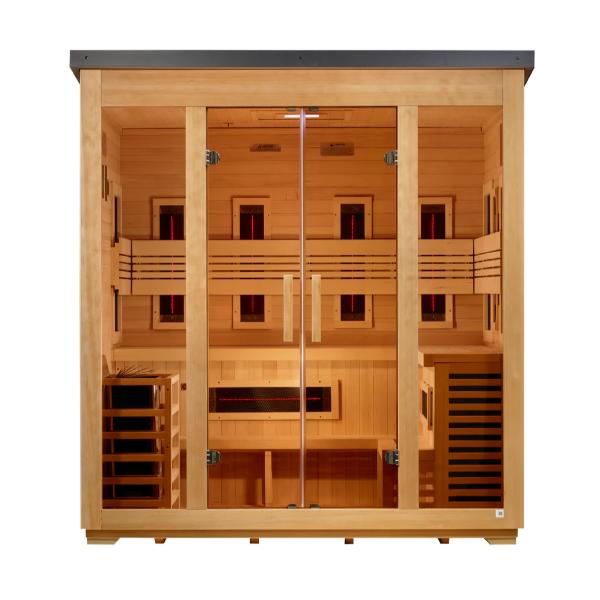

Golden Designs "Gargellen" 5 Person Hybrid (PureTech™ Full Spectrum IR or Traditional Stove) Flat Roof Outdoor Sauna (GDI-8025-01)



Desription

If the Carinthia is built for three, the Gargellen is built for a crowd. The Golden Designs Gargellen GDI-8025-01 is a 5-person outdoor hybrid sauna -- the largest hybrid model in the Golden Designs outdoor lineup -- and a genuine backyard wellness destination for families, friends, and anyone who has ever wished they had more room to breathe, stretch, and sweat.



Like the Carinthia, the Gargellen gives you two completely independent ways to use your sauna. The 8.0 kW Harvia wall-mounted traditional stove heats the room to authentic Finnish temperatures -- up to 190 degrees Fahrenheit -- and works in any exterior temperature year-round. Pour water over the included sauna stones for steam and the full traditional experience. The PureTech Full Spectrum Infrared system delivers a gentler, deeper form of therapeutic heat using 10 infrared emitters: 4 Carbon PureTech Near Zero EMF heating panels and 6 near infrared heating elements. Full spectrum infrared produces far, mid, and near wavelengths simultaneously, offering the most complete therapeutic range available in an infrared system. Each mode is completely independent -- you can never run both at the same time, and the main power switch makes it easy to select which one is active.



This is the new 2026 flat-roof model -- a redesign from the previous generation's sloped-roof GDI-8125-01. The updated profile is cleaner, more contemporary, and more at home alongside modern outdoor architecture. The structure is built from 100% Natural Reforested Canadian Hemlock with a waterproof exterior stain that must be reapplied within one month of assembly and 2-3 times per year from then on.



The dimensional diagram from the official owner's manual confirms the Gargellen's footprint: 79.25 inches wide including the floor rail assembly, 78 inches of exterior cabinet width, and 74.25 inches of interior sauna width. Depth is 56.75 inches exterior and 53.25 inches interior. Interior height is 78 inches. The 2-panel exterior roof system includes a front overhang section that overlaps the rear section, allowing rain to run off properly. The roof can support up to approximately 20 pounds of snow per square inch.



Inside, the Gargellen features two bench levels: a main bench supported by three bench supports -- one large sliding unit and one L-shaped unit joined by a third spanning connector -- with both a long step and a short step. The backrest mounts to the rear wall approximately 9 inches above the bench surface. The bench heater near-infrared element on the bench support panel has its own on/off switch independent of the main infrared system.



The full feature suite includes interior chromotherapy color lighting with red light therapy mode, interior backrests with accent lighting, exterior front overhang roof accent lighting, a dual control panel system (Sauna Control Panel for temperature and timer, Light/BT Control Panel for audio and lighting), Bluetooth audio, built-in FM radio, and integrated performance speakers. The chromotherapy remote must be used from inside the sauna room for the signal to register.



Three adults are required for assembly. Tools needed: battery-operated or hand-held Phillips screwdriver, rubber mallet, and two ladders.



Backyard Prime Living is a certified authorized reseller of Golden Designs Inc. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.

Features

• - New 2026 Flat Roof Design -- Updated exterior profile with a clean, contemporary flat roof that distinguishes the GDI-8025-01 from the previous generation sloped-roof GDI-8125-01 and pairs with modern outdoor architecture. The two-panel exterior roof includes a front overhang that overlaps the rear panel for proper water runoff.
• True Hybrid Heating System -- Two fully independent heating modes in one sauna. You cannot run the stove heater and infrared heaters at the same time. The main power switch has three positions: position 1 powers the stove heater, position 2 powers the infrared heaters, position 0 is off. Choose your experience before every session.
• 8.0 kW Harvia Wall-Mounted Traditional Stove with Built-In Controls -- Heats the cabin to 170-185 degrees Fahrenheit in ideal conditions, with a maximum of 190 degrees Fahrenheit (88 degrees Celsius). Compatible with sauna stones for steam. Works in any exterior temperature year-round. Installed by a certified electrician per the stove manufacturer's manual. Power line must be routed through the vent hole in the wall panel before the heater is mounted.
• PureTech Full Spectrum Infrared System -- 10 total IR emitters: 4 Carbon PureTech Near Zero EMF heating panels and 6 near infrared heating elements producing a total of 3,700 watts (3.7 kW). Emitter breakdown by location: left side wall 1x 750x400mm carbon panel at 300W; rear wall 4x NIR heaters at 400W each; bench heater panel 2x NIR heaters at 400W each; right side wall 1x 750x400mm carbon panel at 300W plus 1x NIR heater at 400W, and 1x 750x400mm carbon panel at 300W. Ideal temperature range 118-132 degrees Fahrenheit, maximum 140 degrees Fahrenheit. Recommended when exterior temperature is 45 degrees Fahrenheit or warmer.
• Near Zero EMF Carbon PureTech Panels -- The 4 carbon PureTech heating panels are Near Zero EMF rated, minimizing electromagnetic field exposure during infrared sessions.
• Independent Bench Heater Control -- The bench support panel NIR heater has its own separate on/off toggle switch, allowing you to turn the under-bench near-infrared element on or off independently during an infrared session.
• 5 Person Capacity -- Interior dimensions of 74.25 inches wide by 53.25 inches deep by 78 inches tall. Three bench supports, two benches (long and short step system), and a rear backrest provide a genuine 5-person layout.
• 100% Natural Reforested Canadian Hemlock Exterior -- Sustainably sourced hemlock construction with a waterproof stain on the exterior. Stain must be applied within one month of assembly and reapplied 2-3 times per year. Do not apply any stain to the interior wood. Interior must remain all-natural.
• Dual Control Panel System -- Two separate interior control panels: the Sauna Control Panel manages temperature, timer, and infrared heater on/off with touch key technology; the Light/BT Control Panel manages chromotherapy lighting, exterior accent lighting, FM radio, and Bluetooth audio. Control panel auto-locks after 3 minutes of inactivity as a safety feature.
• Touch Key Technology -- Sauna Control Panel uses touch key interface. Press and hold the power button for 5 seconds to turn on. Rated voltage AC100V-AC240V, rated power 50Hz/60Hz.
• Interior Chromotherapy Color Lighting System with Remote -- Full-color spectrum LED interior lighting controlled via included remote. Cycles through color sequences or holds a selected color. Red light therapy mode accessible via white light button on the remote (press once for white/reading light, press again for red light therapy).
• Red Light Therapy Feature -- Activated through the chromotherapy remote. Access: chromotherapy on, press white light button once for white/reading light, press again for red light therapy. Remote must be used from inside the sauna room.
• Interior LED Sauna Control Panel -- Touch key panel controls temperature and timer. Press clock buttons to adjust timer up or down. Press thermometer buttons to adjust temperature up or down. C/F button switches between Celsius and Fahrenheit.
• Built-In FM Radio and Bluetooth Audio -- Light/BT Control Panel includes FM radio (TUN- / TUN+ to scroll stations) and Bluetooth pairing (no password required; screen displays bLU when pairing mode is active). Paired via your device's Bluetooth search. Volume controlled with VOL- / VOL+ buttons.
• Built-In Performance Speakers -- Integrated audio system. Bluetooth and FM radio audio plays through the built-in speakers.
• Interior Backrests with Accent Lighting -- Ergonomic backrests mounted approximately 9 inches above the bench surface. Include accent lighting for spa-quality ambiance.
• Exterior Front Overhang Roof Accent Lighting -- Exterior LED lighting along the front roof overhang, controlled via the Light/BT Control Panel roof light button.
• Bronze Privacy Tempered Glass Door and Stationary Glass Panels -- Tinted bronze tempered glass on the door and front stationary panels. Do not touch the glass door hinges during sauna use as they become very hot. Remove black plastic transport corner protectors before first use.
• Stainless Steel Hinge and Handle -- Corrosion-resistant door hardware for permanent outdoor installation.
• Outdoor-Designed Roof System -- Two-panel exterior asphalt shingle roof with front overhang that overlaps rear section for weather runoff. Can support approximately 20 pounds of snow per square inch. Do not use sauna during rain storms.
• Weather-Resistant Exterior -- Canadian Hemlock is naturally weather-resistant. Wood color will change over time due to natural weathering if not maintained with UV protectant stain. Some water seepage between panel gaps is normal outdoors and will not damage the wood.
• Exterior Wood Maintenance Required -- Apply water repellent sealant to exterior wood within one month of assembly and 2-3 times per year. Do not use benzene, alcohol, or strong chemical cleaners on the sauna interior or exterior.
• Stove Wood Heater Guard Included -- Wooden guard installed around the stove heater at 1-2 inches of clearance. Mounted to the wall panel using provided screws. Required for safety.
• Sandglass, Bucket, and Scoop Included -- Traditional sauna accessories for stove use included in the box.
• Three Adults Required for Assembly -- Tools needed: battery-operated or hand-held Phillips screwdriver, rubber mallet, and two ladders.
• Ships in 8 Boxes on a Pallet -- Delivered curbside by LTL freight carrier on a pallet.
• Non-Commercial Use Sauna -- For every 4 hours of continuous use, the sauna must be turned off for 1 hour to cool down.
• Roof Snow Load Rating -- Exterior roof panel can support approximately 20 pounds of snow per square inch.

What's Included

INCLUDED IN THE 10 BOXES:

• Gargellen GDI-8025-01 sauna cabin panels: floor panel, left side wall panel, rear wall panel, right side wall panel, front wall panel, interior roof panel, exterior roof panels (front section with overhang and rear section)
• 8.0 kW Harvia wall-mounted traditional stove with built-in controls
• Sauna stones (for use with traditional stove)
• PureTech Full Spectrum IR system (pre-installed in wall and bench support panels): 4 Carbon PureTech Near Zero EMF heating panels and 6 near infrared heating elements, totaling 3,700 watts
• Bronze privacy tempered glass door with stainless steel hinge and handle - Stationary front glass panels
• Three bench supports (one large sliding support, one L-shaped support, one spanning connector)
• Two benches (main bench and secondary bench level) - Backrest panels - Long step and short step assembly
• Stove wood heater guard (3-sided wooden guard, mounts to wall panel around stove)
• Dual interior control panels: Sauna Control Panel (touch key, temperature/timer) and Light/BT Control Panel (FM, Bluetooth, lighting)
• Chromotherapy color lighting system with remote (batteries required for remote)
• Red light therapy mode (activated via chromotherapy remote)
• Built-in performance speakers (Bluetooth and FM)
• Interior backrests with accent lighting
• Exterior front overhang roof accent lighting
• Sandglass (sand timer)
• Wooden bucket
• Wooden scoop / ladle
• Complete screw and fastener kit (stainless steel roof screws and wood screws in multiple sizes)
• Owner's manual and assembly instructions



NOT INCLUDED / SOLD SEPARATELY:

• 240V / 40AMP dedicated electrical circuit and wiring (must be supplied and installed by a certified licensed electrician using copper wire rated for 90 degrees Celsius -- aluminum wiring cannot be used)
• Weatherproof sauna cover (recommended when sauna is not in use outdoors)
• Foundation or level base (concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck required -- not supplied)
• Batteries for chromotherapy remote (required before first use)
• Exterior water repellent wood stain (annual maintenance -- not supplied)
• Additional sauna stones
• Thermometer or hygrometer



ASSEMBLY NOTE: Three adults are required for assembly. Required tools: battery-operated or hand-held Phillips screwdriver, rubber mallet, and two ladders. Stove heater must be installed by a certified licensed electrician per the stove manufacturer's manual and per local electrical code. Copper wire with 90 degree Celsius rating required -- aluminum wiring cannot be used.



DELIVERY NOTE: Ships via LTL freight carrier on a pallet. Curbside delivery only -- no inside delivery, no placement, no assembly service. Delivery by appointment. Inspect all 10 boxes before signing the delivery receipt. Note any visible damage as subject to inspection. All freight damage claims must be reported promptly. Visually inspect all heaters before assembly -- do not start the sauna if damage is detected, contact dealer or manufacturer for troubleshooting.



Specifications

Manufacturer: Golden Designs Inc
Model Number: GDI-8025-01
Model Year: 2026 (New Flat Roof Design)
Series: Gargellen -- Outdoor Hybrid Sauna
Sauna Type: Hybrid (Traditional Stove + Full Spectrum Infrared)
Capacity: 5 people
Use: Outdoor (Indoor/Outdoor per manual title page)
Non-Commercial Use: For every 4 hours on, turn off for 1 hour to cool down

EXTERIOR DIMENSIONS:
Width (with rail): 79.25 in (6 ft 7.25 in)
Width (outside cabinet): 78 in (6 ft 6 in)
Depth (outside cabinet): 56.75 in (4 ft 8.75 in)
Height (overall): 97.4 in (8 ft 1.4 in)

EXTERIOR DIMENSIONS (with full overhang):
Width x Depth x Height: 98.9 in x 72.6 in x 97.4 in

EXTERIOR DIMENSIONS (without full overhang):
Width x Depth x Height: 78 in x 56.7 in x 97.4 in

INTERIOR DIMENSIONS:
Interior Width: 74.25 in (6 ft 2.25 in)
Interior Depth: 53.25 in (4 ft 5.25 in)
Interior Height: 78 in (6 ft 6 in)

WEIGHT:
Assembled / Product Weight: 1,075 lbs
Shipping Weight: 1,170 lbs

FULL SPECTRUM IR POWER LAYOUT:
Left side wall: 1 x Carbon PureTech panel, 750x400mm, 300W
Rear wall: 4 x NIR Heaters, 400W each = 1,600W
Bench heater: 2 x NIR Heaters, 400W each = 800W
Right side wall: 1 x Carbon PureTech panel, 750x400mm, 300W, 1 x NIR Heater, 400W, 1 x Carbon PureTech panel, 750x400mm, 300W
Total IR System Output: 3,700 watts (3.7 kW)
Total IR Emitters: 10 (4 Carbon PureTech Near Zero EMF panels + 6 NIR heaters)

TRADITIONAL STOVE:
Stove Brand: Harvia
Stove Type: Wall-mounted (Harvia WALL) with built-in controls
Stove Output: 8.0 kW
Ideal Temperature Range: 170-185 degrees Fahrenheit
Maximum Temperature: 190 degrees Fahrenheit (88 degrees Celsius)
Exterior Temp Requirement: None -- operates in any exterior temperature
Steam Capability: Yes -- pour water over stones for steam

CONTROL SYSTEM:
Sauna Control Panel: Touch key technology; temperature, timer, infrared on/off; rated AC100V-AC240V, 50Hz/60Hz; auto-locks after 3 minutes of inactivity
Light/BT Control Panel: FM radio, Bluetooth audio (no password), chromotherapy on/off, exterior accent lighting on/off, volume (VOL- / VOL+), tuner (TUN- / TUN+)
Main Power Switch: 3-position knob: position 1 = stove power; position 2 = infrared heater power; position 0 = off. Stove and infrared cannot run simultaneously.
Bench Heater Switch: Separate on/off toggle on bench support panel for NIR bench heater (I = on, O = off)

ELECTRICAL:
Voltage: 240V AC
Amperage: 40 AMP dedicated circuit (stove and full spectrum IR)
Phase: Single phase (1PH)
Wire Requirement: Copper wire rated 90 degrees Celsius -- aluminum wiring not permitted
Note: Certified licensed electrician required for all installation

MATERIALS AND CONSTRUCTION:
Exterior Wood: 100% Natural Reforested Canadian Hemlock
Exterior Finish: Waterproof stain (apply within 1 month of assembly, reapply 2-3 times per year)
Interior: All-natural hemlock -- no stain, no chemicals on interior wood
Door and Windows: Bronze privacy tempered glass
Hardware: Stainless steel hinge and handle
Roof Style: Flat (2026 redesign) -- two-panel asphalt shingle system with front overhang
Roof Snow Load: Approximately 20 lbs per square inch

INTERIOR COMPONENTS:
Bench System: Three bench supports; main bench and secondary bench level; long step and short step; backrest at approximately 9 in above bench
Lighting: Interior chromotherapy color LED with remote; exterior front overhang accent LED
Control: Dual panel (Sauna Control Panel + Light/BT Control Panel)
Audio: Built-in performance speakers; Bluetooth and FM radio

MAINTENANCE:
Exterior: Apply water repellent sealant to exterior wood within 1 month of assembly, then 2-3 times per year
Interior cleaning: Plain water and soft cloth only; no liquid cleaners, aerosol cleaners, benzene, alcohol, or strong chemicals
Heater area: Heater must be off and covered when cleaning interior

SHIPPING:
Ships Via: LTL freight carrier
Delivery Type: Curbside on pallet -- no inside delivery
Number of Boxes: 8 boxes
Lead Time: 2-4 weeks

WARRANTY

Limited Lifetime Warranty

https://goldendesigninc.com/pages/hybrid-outdoor-sauna-warranty



Manual Download

Model: GDI-8025-01
