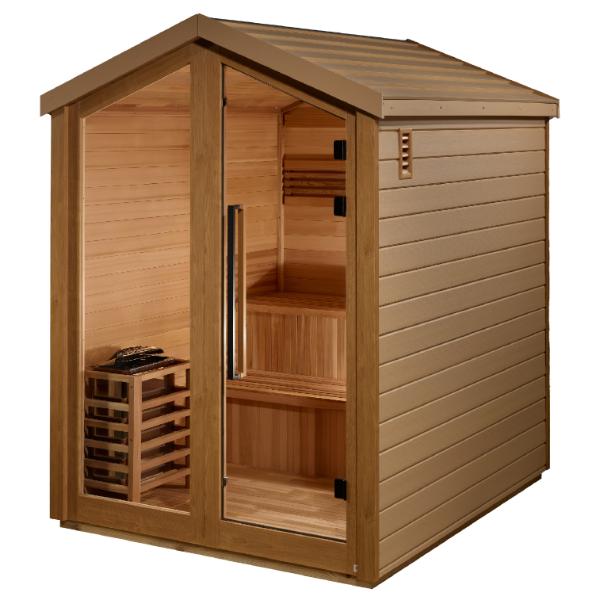

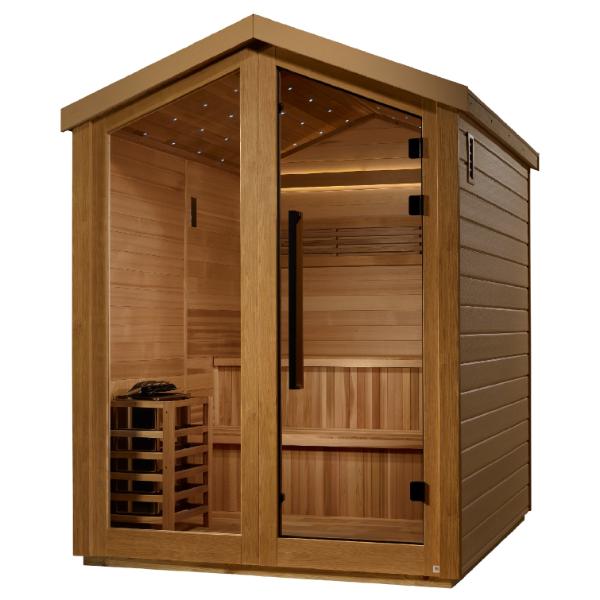

Golden Designs "Kaarina" 6 Person Barn Outdoor Traditional Sauna (GDI-8506-01)



Description

Some buyers want the choice between infrared and steam, and the Kaskinen hybrid is built for them. Others already know what they want: the full-intensity traditional sauna experience, uncompromised, in a structure that is large enough to be the centerpiece of an outdoor wellness space rather than an accessory to it. The Kaarina is built for those buyers. It is the traditional-only companion to the Kaskinen hybrid in Golden Designs' Barn Series -- the same 6-person barn silhouette, the same all-weather exterior and Canadian Red Cedar interior, the same 88-inch ceiling height and 1,400-pound presence, but with a single Harvia "WALL" 8kW stove as the sole heat source. No infrared panels, no mode switching, no complexity. Just the stove, the stones, and the steam.



The Kaarina is built as a custom production unit with limited quantity available. The exterior is all-weather composite construction engineered to handle outdoor exposure year-round. The interior is fully lined in natural Canadian Red Cedar -- walls, ceiling, benches, and backrest -- left in its natural state without stain or finish, as the interior must remain natural. Red cedar's aromatic quality fills the cabin immediately when the stove fires up, and its natural oils give the interior its distinctive warm tone and the heat absorption characteristics that define a proper traditional sauna. The difference between a cedar-lined sauna and one built from hemlock or a neutral species is something you notice from the moment you step inside, and the Kaarina does not make any concessions on that front.



The Harvia "WALL" 8kW stove wall-mounts inside the cabin per the assembly instructions, with power running through the dedicated vent hole in the wall panel that must be closed before the heater is mounted -- the vent cannot be opened once the heater is in place. That installation step requires a certified electrician and the dedicated 240V/40AMP hardwired circuit that powers the stove. The lighting and audio system runs on a completely separate circuit: a 120V/15AMP outlet powers the Light/BT control panel, which manages the interior galaxy star ceiling color therapy lighting, the bench accent lighting, the FM radio, and Bluetooth audio through the built-in performance speakers. These are independent systems -- the lights and music work regardless of which heat mode is active, and neither circuit's operation affects the other.



Inside, the bench system uses upper and lower bench supports specific to the 6-person format, with benches installed on top and the blue antenna wire for the control panel uncoiled and extended during the bench installation step. The bronze privacy tempered glass door -- a distinction from the Kaskinen's clear glass -- provides privacy from outside view while still letting some ambient light into the space. The stove guard wood housing assembles around the Harvia stove to protect occupants from the heater surface. Sessions run between 170 and 185 degrees Fahrenheit for ideal traditional heat, with the ability to push to 190 degrees for a more intense experience.



Assembly requires four adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders. The roof installs in two sections with internal wire routing for the ceiling lighting connections, tile sections removed during installation and replaced after the roof halves are joined and the stainless steel flange is installed. Wall panels connect via guide and guide insert brackets that pull the panels tighter together as they slide down -- do not force them.



Backyard Prime Living is a certified authorized reseller of Golden Designs. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Traditional Stove Only -- No Infrared -- The Kaarina is a pure traditional sauna with a Harvia "WALL" 8kW stove as the sole heat source. There is no infrared system and no mode switching. Buyers who want the uncompromised traditional steam sauna experience at 6-person scale get exactly that.
  - Harvia "WALL" 8kW Traditional Stove with Built-In Controls -- Wall-mounted inside the cabin with built-in controls. Ideal operating temperature is 170 to 185 degrees Fahrenheit; maximum is 190 degrees. The stove runs on a dedicated 240V/40AMP hardwired circuit installed by a certified electrician.
  - Stove Guard Included -- A wood housing assembles around the Harvia stove and mounts to the wall panel to protect occupants from the heater surface during sessions.
  - 6-Person Capacity -- Interior dimensions of 78 inches wide by 63 inches deep by 88 inches tall provide genuine room for six adults. At 88 inches of interior height, the Kaarina has the same ceiling height as the Kaskinen hybrid, making it one of the most spacious outdoor sauna cabins in the Golden Designs lineup.
  - All-Weather Exterior with Canadian Red Cedar Interior -- The exterior is all-weather composite construction requiring no stain maintenance. The interior is fully lined in natural Canadian Red Cedar -- walls, ceiling, benches, and backrest -- left completely natural without stain or finish. Red cedar's aromatic oils fill the space the moment the stove fires up.
  - Barn Silhouette -- The Kaarina's barn-style roof profile gives it a distinctive architectural presence as a standalone outdoor structure, appropriate for properties where the sauna is meant to be a feature destination rather than an accessory.
  - Custom Production Unit -- The Kaarina is a custom production, limited-quantity model. Availability is subject to Golden Designs' production schedule.
  - Bronze Privacy Tempered Glass Door -- The entry door is bronze privacy tempered glass, providing one-directional privacy from outside while letting ambient light into the interior. Door handle installs wood-side interior and stainless steel-side exterior.
  - Interior Galaxy Star Ceiling Color Therapy Lighting -- The ceiling features a galaxy star color therapy lighting system controlled via the Light/BT control panel. Ceiling lights and bench accent lighting are operated by separate buttons on the same panel.
  - Interior Bench Accent Lighting -- Backrest-integrated bench accent lighting is controlled independently from the ceiling lighting via the Light/BT control panel.
  - Light/BT Control Panel with FM Radio and Bluetooth -- A single Light/BT control panel manages ceiling lights, bench lights, FM radio, and Bluetooth audio from inside the cabin. Touch key technology with a 3-minute auto-lock safety feature. Unlock by pressing and holding the power button. Bluetooth pairing requires no password; display shows "bLU" when enabled. FM available via TUN-/TUN+ buttons.
  - Built-In Performance Speakers -- Interior audio speakers deliver Bluetooth streaming or FM radio directly inside the cabin.
  - Two Separate Electrical Circuits -- The Harvia stove requires a dedicated 240V/40AMP hardwired circuit. The Light/BT control panel for lights and audio requires a separate 120V/15AMP outlet. The two circuits operate independently.
  - Upper and Lower Bench Support System -- The GDI-8506-01 uses both an upper and lower bench support configuration specific to the 6-person format. The upper bench support is larger and installs at an angle; the blue antenna wire must be uncoiled and extended during this step before the bench is installed.
  - Roof Installs in Two Sections -- Left and right roof panels install separately with internal wire connections for ceiling lighting made before the tile sections are replaced and the stainless steel flange is installed at the ridge.
  - Four Adults Required for Assembly -- The 6-person panel system requires four adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders.
  - Ships in 10 Boxes -- The Kaarina arrives in 10 separate boxes via LTL freight on a pallet. Curbside delivery only.
  - Outdoor Use Rated -- The all-weather exterior composite is built for year-round outdoor exposure. A waterproof cover is recommended when the sauna is not in use for extended periods.
  - 5-Year Warranty on Wood Structure, Control Panel, and Harnesses -- Golden Designs warrants the sauna room, control panel, and harnesses for 5 years from original date of purchase (when properly maintained). Harvia stove is covered under its own manufacturer warranty. Warranty registration required within 60 days of purchase.





What's Included

ALL GDI-8506-01 CONFIGURATIONS INCLUDE:

• All-weather exterior cabin structural kit -- floor panel, rear wall panel, left side wall panel, right side wall panel, right side front wall panel (includes bronze privacy tempered glass door), left side front wall panel, left and right roof panel sections, stainless steel roof tile flange
• Harvia "WALL" 8kW traditional sauna stove with built-in controls and stove stones (shipped separately)
• Stove guard wood housing
• Upper bench support (larger; 6-person model specific)
• Lower bench support
• Bench panels
• Canadian Red Cedar natural interior finish throughout (walls, ceiling, benches, backrest)
• Interior backrest with bench accent lighting
• Interior galaxy star ceiling color therapy lighting system
• Light/BT control panel (touch key; manages ceiling lights, bench lights, Bluetooth audio, and FM radio; 3-minute auto-lock)
• Built-in performance speakers
• Bronze privacy tempered glass door with wood interior handle and stainless steel exterior handle
• Sandglass (sauna sand timer)
• Wooden bucket and scoop
• All assembly hardware and screws
• Owner's manual

NOT INCLUDED / SOLD SEPARATELY:

• Sauna foundation or base (concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck -- customer responsibility; structure must prevent settling into ground)
• Electrical wiring and circuit installation: dedicated 240V/40AMP hardwired circuit for Harvia stove, PLUS separate 120V/15AMP outlet for Light/BT control panel -- all connections must be made by a certified electrician; copper wire with 90-degree Celsius rating required; aluminum wiring not permitted
• Waterproof cover for periods of extended non-use (recommended; sold separately)
• Additional accessories (robe hooks, thermometer -- available separately)



INSTALLATION NOTE: The location must be dry, level, and away from any water source. Four adults are required for assembly. The surface must be capable of supporting the assembled weight plus occupants, well in excess of 1,000 lbs. Approved base types include concrete slab, concrete pavers, gravel, cinder blocks, and solid wood deck. For the Harvia WALL stove, the electrician must run the power line through the vent hole in the wall panel and close the vent before mounting the heater -- the vent cannot be opened once the heater is installed. The roof installs in two sections; ceiling light wire connections must be made during installation before tile sections are replaced and the stainless steel flange is installed. The blue antenna wire at the circuit connection junction box must be uncoiled and extended before the upper bench support is installed. All electrical connections must be made by a certified licensed electrician using copper wire rated at 90 degrees Celsius minimum; aluminum wiring is not permitted. Do not use the sauna during electrical storms. For every four hours of use, shut the sauna down for one hour to cool down.





Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Kaarina" 6 Person Barn Outdoor Traditional Sauna
Model Number: GDI-8506-01
Collection: Barn Series Outdoor Traditional Sauna
Product Type: Outdoor traditional sauna -- electric stove only, no infrared
Exterior Material: All-weather composite construction
Interior Material: Natural Canadian Red Cedar (no stain; must remain natural)
Roof Style: Barn silhouette
Production Status: Custom production unit -- limited quantity available

EXTERIOR DIMENSIONS:
Assembled Dimensions Exterior (W x D x H): 69 in x 84 in x 95 in
Roof Overhang: Adds approximately 4 in to depth (total depth with overhang: approx. 88 in)

INTERIOR DIMENSIONS:
Interior Dimensions (W x D x H): 78 in x 63 in x 88 in

WEIGHT:
Assembled Weight: 1,425 lbs
Shipping Weight: 1,650 lbs

SHIPPING:
Ships in: 10 boxes
Delivery Method: LTL freight, curbside only, pallet delivery
Ships From: Ontario, CA (ZIP 91761)

CONSTRUCTION:
Exterior: All-weather composite material
Interior: Natural Canadian Red Cedar (walls, ceiling, benches, backrest)
Door: Bronze privacy tempered glass; wood handle interior, stainless steel handle exterior
Bench System: Upper bench support (6-person specific, larger) and lower bench support with bench panels
Capacity: 6 people

HEATING:
Stove: Harvia "WALL" 8kW with built-in controls
Stove Stones: Included
Stove Guard: Included (wood housing)
Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Maximum Temperature: 190 degrees Fahrenheit
Infrared System: None -- traditional stove only

LIGHTING AND AUDIO:
Interior Ceiling Lighting: Galaxy star ceiling color therapy lighting system
Interior Bench Lighting: Backrest bench accent lighting (controlled separately from ceiling lights)
Control Panel: Light/BT control panel; touch key technology; manages ceiling lights, bench lights, Bluetooth audio, and FM radio; 3-minute auto-lock safety feature (press and hold power button to unlock)
Bluetooth: Included (no password required; display shows "bLU" when enabled; TUN-/TUN+ to scroll songs; VOL-/VOL+ for volume)
FM Radio: Included (TUN-/TUN+ to scroll stations; simple antenna system may not receive all stations in all areas)
Audio: Built-in performance speakers

ELECTRICAL:
Stove Circuit: Dedicated 240V/40AMP hardwired circuit (installed by certified electrician)
Lights and Audio Circuit: Separate 120V/15AMP outlet
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all connections must be made by a certified licensed electrician

ASSEMBLY:
Adults Required: 4
Tools Required: Battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, 2 ladders

BASE REQUIREMENTS:
Approved base types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
Surface must be level, dry, and capable of supporting assembled weight plus occupants
Base not included

MAINTENANCE:
Interior: Wipe with plain water and soft cloth only; no chemical-based or aerosol cleaners; interior must remain natural (no stain)
Exterior: All-weather composite -- no stain maintenance required
Heater and stones: Follow Harvia manufacturer instructions; heater must be off and covered during interior cleaning

WARRANTY:
Sauna Room, Control Panel, Harnesses: 5 years from original date of purchase (when properly maintained)
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration Required: Within 60 days of purchase date
Warranty Registration: https://app.goldendesigninc.com/public/RegisteredProduct



Manuals / Downloads

Golden Designs "Kaarina" Manual
