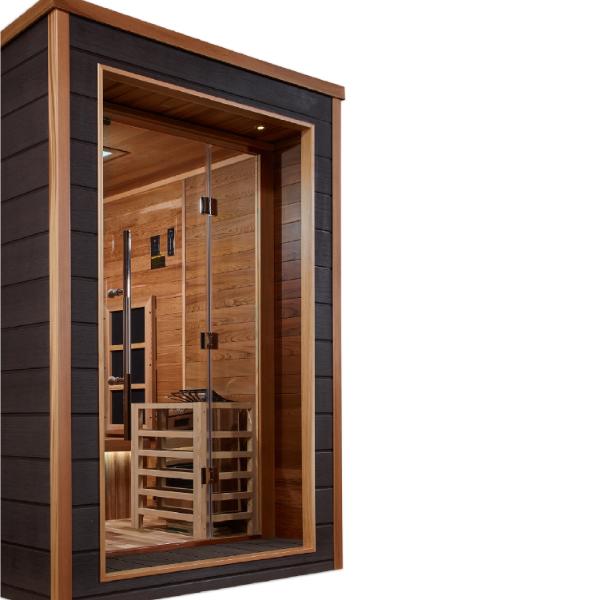

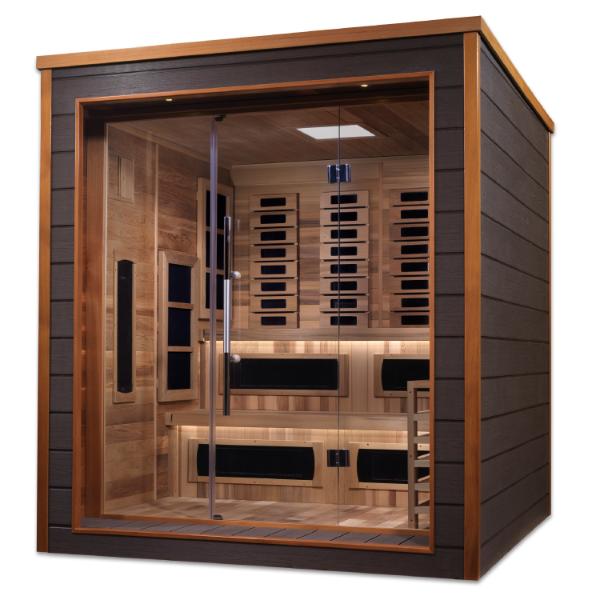

Golden Designs "Karlstad" 6 Person Outdoor-Indoor PureTech™ Hybrid Full Spectrum Sauna (GDI-8226-01)

Description

The Karlstad occupies a specific position in the Golden Designs outdoor lineup that no other model quite fills: a 6-person hybrid cabin rated for both indoor and outdoor use, built with an all-weather exterior and a full Canadian Red Cedar interior, combining a Harvia "WALL" 8kW traditional stove with the most comprehensive full-spectrum infrared system in the Modern Series. Thirteen total IR emitters -- 4 Carbon PureTech Near Zero EMF FAR infrared heating panels and 9 near-infrared heating elements -- give the Karlstad more infrared coverage than the 5-person Gargellen (10 emitters) and the 3-person Carinthia (8 emitters), making it the top-of-range infrared performer in the Classic Series outdoor hybrid lineup. The traditional stove and the infrared system operate independently via a main power switch: position 1 routes power to the stove, position 2 routes power to the infrared system, position 0 is off. The two systems never run simultaneously.



The exterior is an all-weather composite construction that handles outdoor exposure without the annual stain maintenance that natural wood exteriors demand. The interior is a different matter entirely -- every interior surface is natural Canadian Red Cedar: walls, ceiling, benches, backrest, and bench support panels. Canadian Red Cedar's naturally occurring oils produce the aromatic quality that for most people is inseparable from the traditional sauna experience. The interior must remain natural; no stain or finish is applied and none should be added. The manual notes that a small percentage of the population may have an adverse reaction to the aromatic properties of Canadian Red Cedar, specifically those with Multiple Chemical Sensitivity, and advises discontinuing use if symptoms occur.



What makes the Karlstad's infrared system worth understanding is that the near-infrared elements are not just positioned on the wall panels -- the bench support panels on the GDI-8226-01 also carry NIR heaters that can be individually toggled on or off from the infrared control panel. This means the infrared coverage wraps from the walls into the bench level, producing a more thorough full-body exposure than a wall-only panel layout. At the ideal infrared temperature range of 118 to 132 degrees Fahrenheit, the session is fundamentally different from the stove session -- lower ambient temperature, longer comfortable duration, and a different physiological profile. Both options are built into the same cabin, accessible the same day.



Inside, the Karlstad runs two independent control panels. The Sauna Control Panel manages the infrared system's temperature, timer, and on/off functions with touch key technology that locks after 3 minutes of inactivity (press and hold the power button to unlock). The Light/BT Control Panel manages the oversize interior chromotherapy color lighting system with red light therapy feature, the bench accent lighting, FM radio, and Bluetooth audio through the built-in performance speakers. Both panels function when either heat source is active. The control panels are located on the right side wall panel; speakers are on the rear wall panel. The chromotherapy lighting is operated via the included remote from inside the cabin, with color selection, white/reading light, and red light therapy all accessible from the same remote.



The Karlstad is a custom production unit with limited quantity available. It is rated for both outdoor and indoor installation. Assembly requires three adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders. The exterior roof panel can hold up to approximately 20 pounds of snow per square inch. When not in use outdoors, a waterproof cover is recommended. The Harvia WALL stove requires the power line to be run through the dedicated vent hole in the wall panel and the vent closed before mounting -- the vent cannot be opened once the heater is installed.



Backyard Prime Living is a certified authorized reseller of Golden Designs. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.





Features

• True Hybrid Heating System -- The Karlstad houses both a Harvia "WALL" 8kW traditional sauna stove and a full-spectrum PureTech infrared system in the same cabin. A main power switch selects between stove (position 1), infrared (position 2), or off (position 0). The two systems never operate simultaneously.
• 13 Total Full Spectrum IR Emitters -- The most comprehensive infrared system in the Classic Series Modern Hybrid lineup: 4 Carbon PureTech Near Zero EMF FAR infrared heating panels and 9 near-infrared heating elements positioned across wall panels and bench support panels for full-body near, mid, and far wavelength coverage at near-zero EMF. Ideal when exterior temperature is 45 degrees Fahrenheit or warmer.
• NIR Heaters on Bench Support Panels -- The near-infrared heating elements on the GDI-8226-01's bench support panels can be independently toggled on or off from the infrared control panel, allowing targeted bench-level infrared exposure as part of or separate from the wall-panel session.
• Harvia "WALL" 8kW Traditional Stove with Built-In Controls -- Wall-mounted inside the cabin with built-in controls. Ideal operating temperature is 170 to 185 degrees Fahrenheit; maximum is 190 degrees. The traditional stove operates at any exterior temperature.
• Stove Guard Included -- A wood housing assembles around the Harvia stove and mounts to the interior wall panel to protect occupants from the heater surface during sessions.
• 6-Person Capacity -- Interior dimensions of 75 inches wide by 67.2 inches deep by 75 inches tall provide genuine room for six adults on the two-tier bench system.
• Outdoor and Indoor Rated -- The GDI-8226-01 is rated for both outdoor and indoor installation. The all-weather composite exterior handles outdoor exposure without annual stain maintenance. When installed outdoors without a roof structure, a waterproof cover is recommended when not in use.
• All-Weather Composite Exterior with Canadian Red Cedar Interior -- The exterior is all-weather composite construction requiring no stain maintenance. The interior is fully lined in natural Canadian Red Cedar -- walls, ceiling, benches, backrest, and bench support panels -- left completely natural without stain or finish.
• Custom Production Unit -- The Karlstad is a custom production, limited-quantity model. Availability is subject to Golden Designs' production schedule.
• Clear Tempered Glass Door -- The entry door is clear tempered glass (not bronze-tinted), providing full visibility and maximum natural light into the interior.
• Oversize Interior Chromotherapy Color Lighting System with Red Light Therapy -- An oversize chromotherapy color lighting system is included, operated via remote control from inside the cabin. Remote functions include color selection, white/reading light mode, and red light therapy mode (activated by pressing the white light button twice). The remote must be used from inside the sauna room.
• Interior Bench Accent Lighting -- Bench-level accent lighting is controlled independently from the chromotherapy lighting via the Light/BT control panel.
• Dual Independent Control Panels -- The Sauna Control Panel manages infrared temperature, timer, and on/off; the Light/BT Control Panel manages chromotherapy lighting, bench lights, Bluetooth audio, and FM radio. Both panels use touch key technology with a 3-minute auto-lock (press and hold the power button to unlock). Control panels are located on the right side wall panel.
• Built-In FM Radio and Bluetooth -- The Light/BT Control Panel enables FM radio (TUN-/TUN+ to scroll stations) and Bluetooth audio (no password required; display shows "bLU"). TUN-/TUN+ scrolls songs; VOL-/VOL+ adjusts volume. Built-in performance speakers are located on the rear wall panel.
• Exterior Roof Accent Lighting -- Integrated accent lighting along the exterior roofline creates ambient presence after dark.
• Two-Tier Bench System -- Two levels of bench seating with upper and lower bench supports specific to the 6-person model. A separate support beam installs for the second-level bench, and bench support panels slide into vertical guides in the side walls.
• Vents on Both Side Walls -- A lower vent on the right side wall panel and an upper vent on the left side wall panel provide the controlled airflow required for both infrared and traditional sauna use. Vents must remain unobstructed at all times.
• Exterior Roof Panel Load Rating -- The exterior roof panel is rated to hold approximately 20 pounds of snow per square inch.
• Sandglass, Bucket, and Scoop Included -- Traditional sauna accessories ship with the unit for immediate use.
• Three Adults Required for Assembly -- Assembly requires three adults, a battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders.
• Single 240V/40AMP Circuit for Both Heating Systems -- One dedicated 240V/40AMP hardwired circuit covers both the Harvia stove and the full-spectrum infrared system. The main power switch inside the cabin selects which system receives power.
• Ships in 10 Boxes -- The Karlstad arrives in 10 boxes via LTL freight on a pallet. Curbside delivery only.
• 5-Year Warranty on Wood Structure, Control Panel, and Harnesses -- Golden Designs warrants the sauna room, control panel, and harnesses for 5 years from original date of purchase (when properly maintained). Harvia stove is covered under its own manufacturer warranty. Warranty registration required within 60 days of purchase.





What's Included

ALL GDI-8226-01 CONFIGURATIONS INCLUDE:

• All-weather composite exterior cabin structural kit -- main interior floor panel, left side wall panel (upper vent), rear wall panel (speakers pre-mounted), right side wall panel (control panels pre-mounted, lower vent), interior front wall panel, exterior front floor panel, exterior front roof panel, exterior front wall panel (clear tempered glass door), interior roof panel (ceiling lighting pre-mounted), exterior roof panel (two pieces)
• Harvia "WALL" 8kW traditional sauna stove with built-in controls and stove stones (shipped separately)
• Stove guard wood housing - Full-spectrum PureTech infrared system -- 4 Carbon PureTech Near Zero EMF FAR infrared heating panels and 9 near-infrared heating elements pre-mounted on wall panels and bench support panels - First-level bench support and bench
• Second-level bench support (support beam) and bench (6-person model specific) - Canadian Red Cedar natural interior finish throughout (walls, ceiling, benches, backrest, bench support panels)
• Interior backrest with accent lighting
• Oversize interior chromotherapy color lighting system with red light therapy feature and remote control
• Exterior roof accent lighting
• Sauna Control Panel (touch key; manages infrared temperature, timer, and on/off; 3-minute auto-lock)
• Light/BT Control Panel (touch key; manages chromotherapy lighting, bench lights, Bluetooth, and FM radio; 3-minute auto-lock)
• Main power switch (3-position: stove / infrared / off)
• Built-in performance speakers (rear wall panel)
• Clear tempered glass door with door handle
• Sandglass (sauna sand timer)
• Wooden bucket and scoop
• All assembly hardware and screws
• Owner's manual

NOT INCLUDED / SOLD SEPARATELY:

• Sauna foundation or base (concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck -- customer responsibility)
• Electrical wiring and circuit installation: dedicated 240V/40AMP hardwired circuit covering both Harvia stove and full-spectrum infrared system -- all connections must be made by a certified electrician; copper wire with 90-degree Celsius rating required; aluminum wiring not permitted
• Waterproof cover for outdoor installation during periods of non-use (recommended; sold separately)



INSTALLATION NOTE: Location must be dry, level, and away from any water source. Three adults are required for assembly. The surface must support the assembled weight plus occupants (can exceed 1,000 lbs). Approved base types include concrete slab, concrete pavers, gravel, cinder blocks, and solid wood deck. For the Harvia WALL stove, the electrician must run the power line through the vent hole in the right side wall panel and close the vent before mounting the heater -- the vent cannot be opened once the heater is installed. All electrical connections must be made by a certified licensed electrician using copper wire rated at 90 degrees Celsius minimum; aluminum wiring is not permitted. The main power switch must be turned to position 0 before switching between heating modes. The infrared and traditional stove systems must not operate simultaneously. When installed outdoors and not in use, a waterproof cover is recommended. For every four hours of use, shut the sauna down for one hour to cool down.



Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Karlstad" 6 Person Outdoor-Indoor PureTech Hybrid Full Spectrum Sauna
Model Number: GDI-8226-01
Collection: Modern Series Outdoor-Indoor Hybrid Sauna
Product Type: Outdoor/Indoor hybrid sauna -- full-spectrum infrared and traditional stove
Exterior Material: All-weather composite construction (Espresso finish)
Interior Material: Natural Canadian Red Cedar (no stain; must remain natural)
Production Status: Custom production unit -- limited quantity available
Use: Indoor or Outdoor / Residential / Light Commercial

EXTERIOR DIMENSIONS:
Assembled Dimensions Exterior (W x D x H): 79.2 in x 84.7 in x 88.3 in

INTERIOR DIMENSIONS:
Interior Dimensions (W x D x H): 75 in x 67.2 in x 75 in

WEIGHT:
Assembled Weight: 1,350 lbs
Shipping Weight: 1,575 lbs
LTL Pallet Dimensions: 90 in W x 54 in D x 92 in H

SHIPPING:
Ships in: 10 boxes
Carton A: 77 in W x 5 in D x 86 in H, 236 lbs
Carton B: 81 in W x 8 in D x 89 in H, 247 lbs
Carton C: 84 in W x 6 in D x 89 in H, 201 lbs
Carton D: 84 in W x 8 in D x 89 in H, 209 lbs
Carton E: 77 in W x 9 in D x 81 in H, 225 lbs
Carton F: 45 in W x 11 in D x 84 in H, 214 lbs
Carton G: 6 in W x 20 in D x 27 in H, 13 lbs (stove)
Carton H: 12 in W x 12 in D x 16 in H, 5 lbs
Stove: 13 in W x 20 in D x 28 in H, 35 lbs
Stones: 11 in W x 16 in D x 6 in H, 45 lbs
Delivery Method: LTL freight, curbside only, pallet delivery
Ships From: Ontario, CA (ZIP 91761)
Processing Time: 1 business day

CONSTRUCTION:
Exterior: All-weather composite material (Espresso finish)
Interior: Natural Canadian Red Cedar (walls, ceiling, benches, backrest, bench support panels)
Door: Clear tempered glass with door handle
Bench System: Two-tier (first and second level bench supports with bench panels; second-level support beam unique to 6-person model)
Bench Support NIR Heaters: Yes -- individually togglable from infrared control panel
Control Panels: Located on right side wall panel
Speakers: Located on rear wall panel
Upper Vent: Left side wall panel (upper)
Lower Vent: Right side wall panel (lower)
Capacity: 6 people

HEATING SYSTEMS:
Traditional Stove: Harvia "WALL" 8kW with built-in controls
Stove Stones: Included
Stove Guard: Included (wood housing)
Traditional Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Traditional Maximum Temperature: 190 degrees Fahrenheit
Full Spectrum Infrared: 13 total emitters -- 4 Carbon PureTech Near Zero EMF FAR infrared heating panels, 9 near-infrared heating elements (wall panels and bench support panels)
Infrared Ideal Temperature Range: 118 to 132 degrees Fahrenheit
Infrared Maximum Temperature: 140 degrees Fahrenheit
Simultaneous Operation: Not supported -- main power switch selects stove (position 1), infrared (position 2), or off (position 0)

LIGHTING AND AUDIO:
Interior Lighting: Oversize chromotherapy color lighting system with red light therapy feature; remote control included (must be used from inside sauna room)
Bench Lighting: Interior backrest bench accent lighting (controlled separately via Light/BT panel)
Exterior Lighting: Exterior roof accent lighting
Control Panel 1 (Sauna Control Panel): Touch key; manages infrared temperature, timer, and on/off; 3-minute auto-lock
Control Panel 2 (Light/BT Control Panel): Touch key; manages chromotherapy lighting, bench lights, Bluetooth, and FM radio; 3-minute auto-lock
Bluetooth: Included (no password required; display shows "bLU")
FM Radio: Included (TUN-/TUN+ to scroll stations)
Audio: Built-in performance speakers (rear wall panel)
Control System Voltage: AC100V to AC240V, 50Hz/60Hz

ELECTRICAL:
Required Circuit: Dedicated 240V/40AMP hardwired circuit (covers both Harvia stove and full-spectrum infrared system)
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all connections must be made by a certified licensed electrician

ASSEMBLY:
Adults Required: 3
Tools Required: Battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, 2 ladders

BASE REQUIREMENTS:
Approved base types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
Surface must be level, dry, and capable of supporting assembled weight plus occupants
Base not included

MAINTENANCE:
Interior: Wipe with plain water and soft cloth only; no chemical-based or aerosol cleaners; interior must remain natural (no stain)
Exterior: All-weather composite -- no stain maintenance required. Note: cedar wood starts turning grey after approximately 1-2 years if not maintained with a UV protectant when applicable.
Heater and stones: Follow Harvia manufacturer instructions; heater must be off and covered during interior cleaning

WARRANTY:
Sauna Room, Control Panel, Harnesses: 5 years from original date of purchase (when properly maintained)
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration Required: Within 60 days of purchase date
Warranty Registration: https://app.goldendesigninc.com/public/RegisteredProduct



Manuals / Downloads

Golden Designs "Karlstad" Manual
