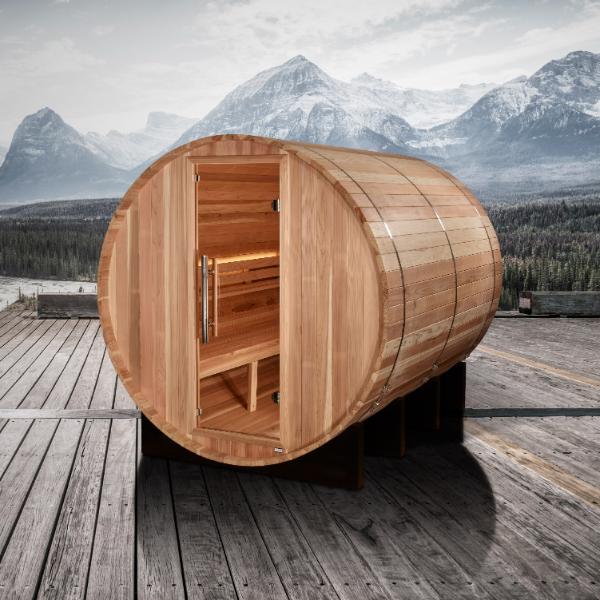

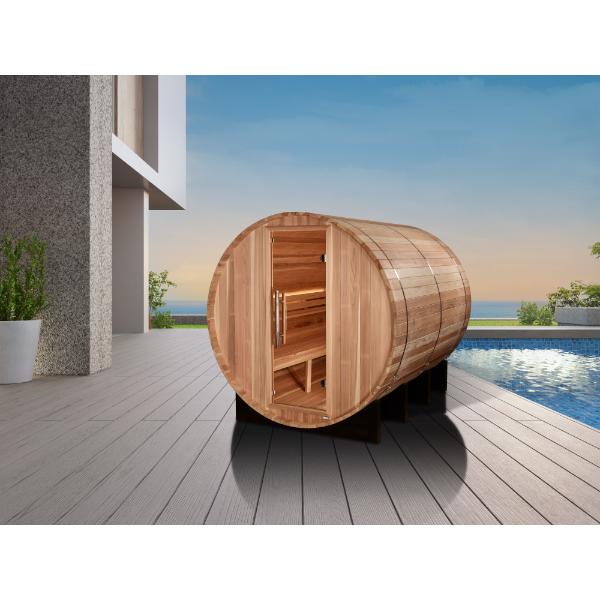

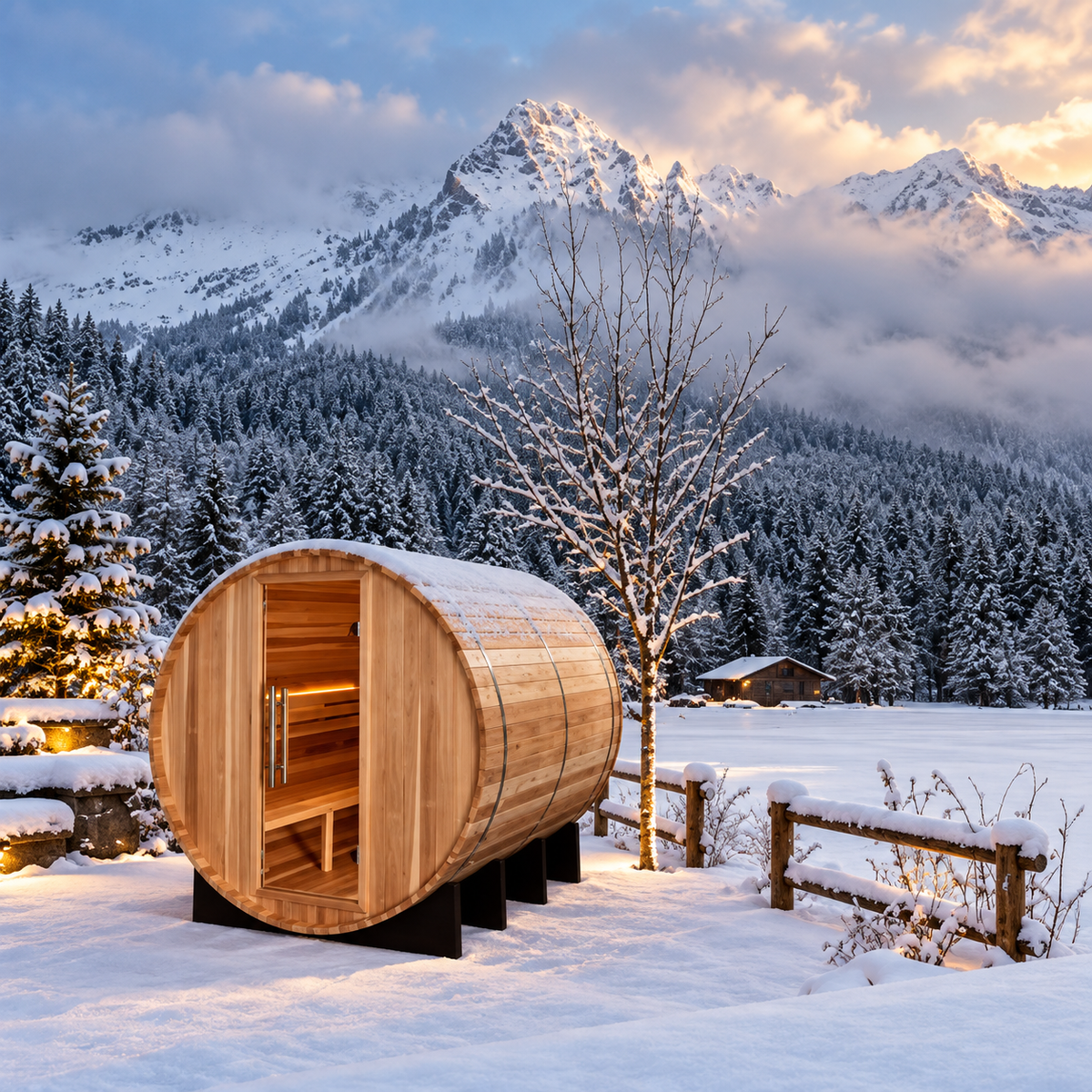

Golden Designs "Klosters" 6 Person Barrel Traditional Sauna (GDI-B006-01)

Description

The barrel sauna is the most efficient geometry in outdoor sauna design. The curved interior eliminates the dead air volume that collects in the corners of a flat-wall room, concentrates heat at bench level where the occupants actually sit, and allows the cabin to reach operating temperature faster and hold it more consistently than any box-format sauna of comparable size. The Golden Designs Klosters takes that geometry and scales it to six people -- a barrel sauna built for a household, a group, or any outdoor setting where the experience is a shared one rather than a solitary one.

The Klosters is built from Pacific Premium Cedar throughout -- a wood chosen for outdoor sauna construction because of its natural resistance to moisture and insects, its dimensional stability under the expansion and contraction cycles that heat produces, and its aromatic quality at temperature. The manufacturer notes that cedar may cause eye, skin, or respiratory irritation or an allergic reaction in some users; discontinue use if symptoms occur. For the majority of users, Pacific Premium Cedar is the sauna wood of choice, and the Klosters delivers it in a six-person format that few residential barrel saunas match. Note that the cedar exterior will begin to grey after approximately one to two years if not maintained with a UV protectant -- this is a normal characteristic of the wood, not a defect.

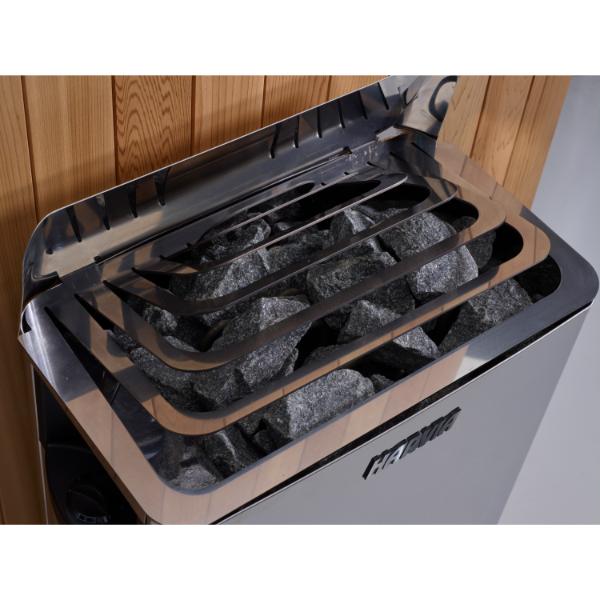

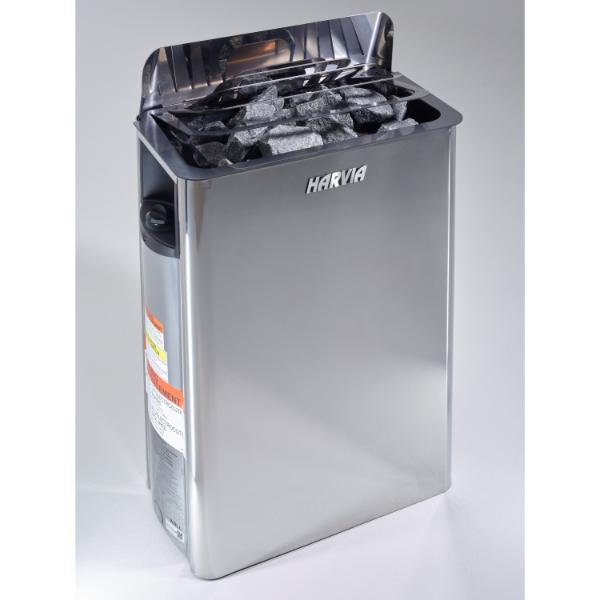

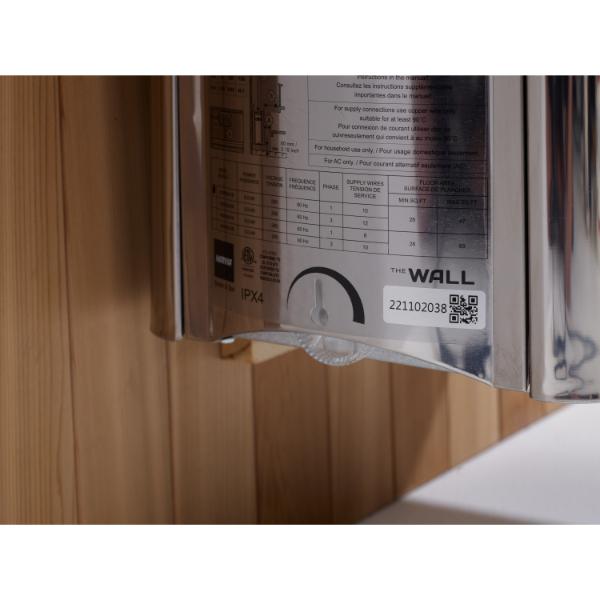

The stove is the Harvia WALL 8kW, a wall-mounted electric heater with built-in controls that provides the full traditional sauna experience: the kind of radiant heat that produces deep perspiration, muscle relaxation, and the high ambient temperature -- ideal range 170 to 185 degrees Fahrenheit, maximum 190 degrees -- that defines the traditional sauna session. The stove must be installed by a certified licensed electrician on a dedicated 240V/40AMP hardwired circuit using copper wire rated to 90 degrees Celsius. Aluminum wiring is not permitted in this application.

The stave assembly, bench system, interior backrests with integrated accent lighting, and bronze privacy tempered glass door all ship in three boxes and assemble with three adults, a battery-operated Phillips screwdriver, claw hammer, 17mm wrench, and a ladder. The 6-person model uses four support cradles, eight stainless steel screws to anchor the stave assembly, and four bench support pieces specific to this model. The stainless steel bands that hold the barrel together must be inspected and tightened every four to six months as the wood expands and contracts seasonally.

A separate 120V/15AMP outlet powers the interior LED control panel for accent lighting and the backrest accent light. Note that the "Light 1" button has no function on this barrel model -- only the "Light 2" button activates the interior lighting. The sandglass, bucket, and scoop ship with the unit for immediate use.

The Klosters is rated for outdoor use. When installed outdoors and not under a covered structure, a waterproof rain cover (optional accessory) is available and recommended. Water seepage between staves is normal for an outdoor barrel installation and does not damage the wood. For every four hours of continuous use, the sauna should be powered off for one hour to cool down.

Warranty registration requires mailing the completed warranty card with proof of purchase to Golden Designs within 60 days of purchase. The warranty is void if the card is not mailed within that window.

Backyard Prime Living is a certified authorized reseller of Golden Designs Inc. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.

Features

• 6-Person Pacific Premium Cedar Barrel Sauna -- Full six-person barrel sauna built from Pacific Premium Cedar throughout. Natural moisture and insect resistance, dimensional stability under heat cycling, and the aromatic cedar character that defines the traditional sauna experience. Cedar exterior will grey after approximately 1-2 years without UV protectant maintenance -- a normal wood characteristic.
• Barrel Format for Efficient Heating -- The curved barrel geometry eliminates dead air at the corners, concentrates heat at bench level, and allows the interior to reach operating temperature faster and hold it more consistently than a flat-wall cabin of comparable size.

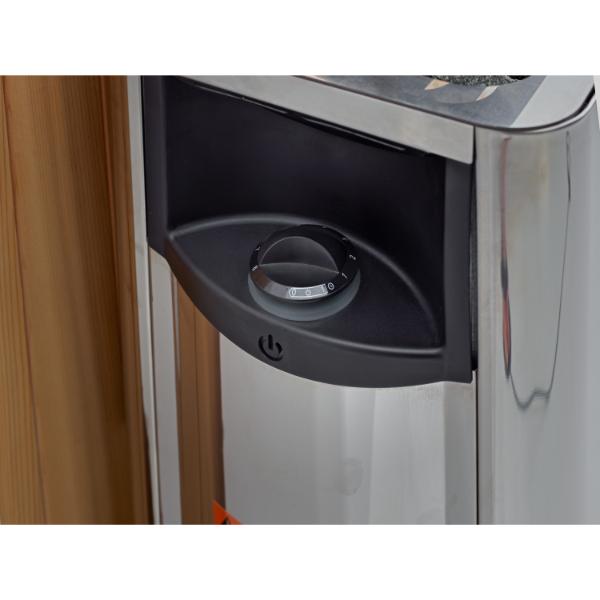

• Harvia WALL 8kW Traditional Stove with Built-In Controls -- Wall-mounted inside the cabin. Ideal operating temperature range: 170 to 185 degrees Fahrenheit. Maximum: 190 degrees Fahrenheit. Must be installed by a certified licensed electrician on a dedicated 240V/40AMP hardwired circuit using copper wire rated to 90 degrees Celsius. Aluminum wiring is not permitted.

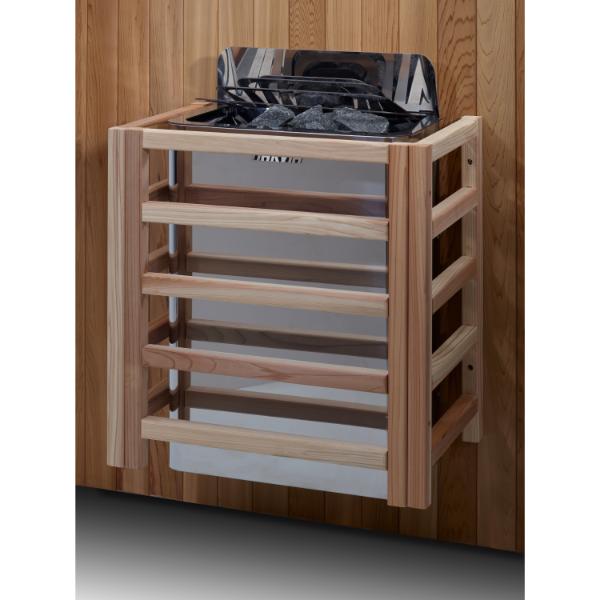

• Stove Guard Wood Housing -- A wood guard housing assembles around the Harvia stove and mounts to the front panel interior to protect occupants during sessions.
• Bronze Privacy Tempered Glass Door -- Provides privacy while allowing ambient light into the interior. The glass door hinges become very hot during use -- do not touch during sessions.
• Interior Backrests with Accent Lighting -- Backrests on both sides of the interior include integrated accent lighting. LED connection is made during assembly at the rear panel. Backrest hardware: four screws per backrest (two per side, left and right).
• Interior LED Control Panel -- Controls interior accent lighting only. "Light 2" button operates the interior lights. "Light 1" has no function on this barrel model. Powered by a separate 120V/15AMP outlet (not the stove circuit).
• Stainless Steel Band Assembly -- Stainless steel bands fasten the barrel stave assembly together. Must be inspected and tightened with a 17mm wrench every 4 to 6 months as the wood expands and contracts seasonally with temperature and humidity changes.
• 66-68 Staves Plus Narrow Stave Set -- The barrel uses 66 to 68 staves plus one set of narrow staves for the final barrel closure. Extra staves are included -- use the less attractive staves in the floor position where they are not visible.

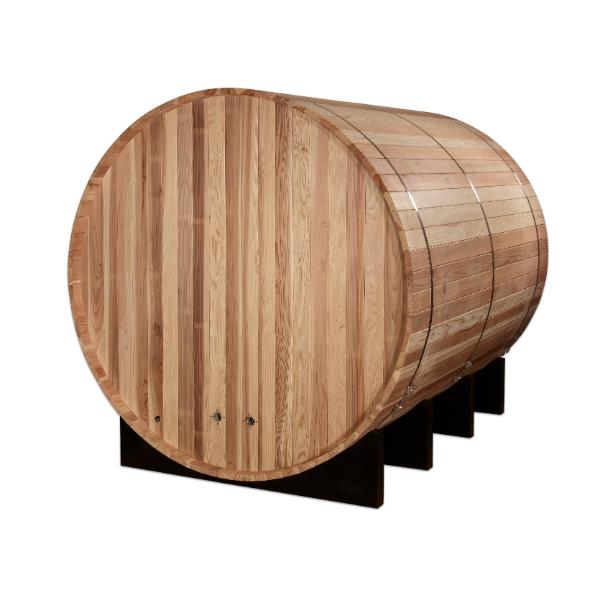

• Four Support Cradles (6-Person Specific) -- The Klosters uses four support cradles; the 2 and 4-person barrel models use three. Cradles must rest on cinder blocks or similar structure if installed directly on ground to prevent settling over time.
• Four Bench Support Pieces (6-Person Specific) -- The bench support system for the GDI-B006-01 uses four pieces -- two per side -- with two bench supports mounted per bench front wood plank. This is specific to the 6-person model; the 2 and 4-person models use two bench support pieces.
• Sandglass, Bucket, and Scoop Included -- Traditional sauna accessories included for immediate use at first session.

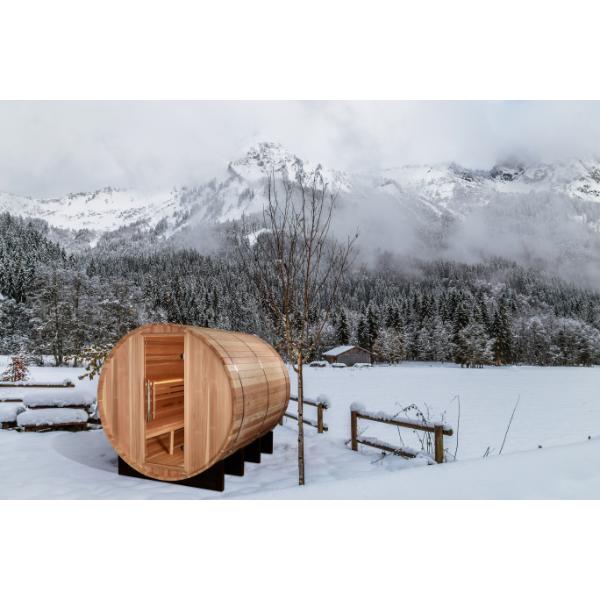

• Outdoor Rated -- Designed for outdoor installation. Water seepage between staves is normal in an outdoor barrel installation and does not damage the wood. A waterproof rain cover is available as an optional accessory and recommended for open installations.
• Optional Rain Cover -- An optional rain cover accessory is available for installations where the barrel is not under a covered structure. Secured with pushpins at front, rear, and horizontal edges.
• Three Adults Required for Assembly -- Assembly requires three adults, a battery-operated Phillips screwdriver, claw hammer, 17mm wrench, and a ladder. A rope or strap is optional for holding staves in place during the upper stave installation.
• Ships in 3 Boxes -- The Klosters arrives in three boxes via LTL freight.
• Warranty Registration by Mail Required -- Warranty must be activated by mailing the completed warranty card with proof of purchase to Golden Designs within 60 days of purchase date. The warranty is void if not mailed within that window.
• 5-Year Limited Warranty on Wood Structure, Control Panel, and Harnesses -- Golden Designs warrants the sauna room, control panel, and applicable harnesses and lights for 5 years from date of purchase when properly maintained. The Harvia stove is covered under its own manufacturer warranty.

What's Included

ALL GDI-B006-01 CONFIGURATIONS INCLUDE:

• All Pacific Premium Cedar stave components (66-68 staves wide plus narrow stave set; extra wide staves included)
• Four bottom support cradles (6-person model specific)
• Stainless steel bands with bolts for barrel assembly (17mm wrench required for tightening)
• Rear wall panel (two-piece assembly; pre-drilled with light connection)
• Front wall panel (three-piece assembly; pre-drilled)
• Bronze privacy tempered glass door with door handle hardware (M8x70 stainless steel screws)
• Interior bench panels, bench front wood planks, and bench support wood (four bench support pieces -- two per side -- specific to GDI-B006-01)
• Interior backrests with integrated accent lighting harnesses (two backrests, four screws each -- two left, two right)
• Stove guard wood housing (assembled around Harvia stove on front panel interior after electrician installation)
• Interior LED control panel (powered by 120V/15AMP outlet; Light 2 button controls interior accent lighting; Light 1 has no function on this model)
• Sandglass (sand timer)
• Wooden bucket and scoop
• All stainless steel assembly hardware (M4x40 and M4x50 screws, stainless steel nails, bolts)
• Assembly instructions and owner's manual
• Warranty card (must be mailed with proof of purchase within 60 days)

NOT INCLUDED / SOLD SEPARATELY:

• Electrical wiring and circuit installation: dedicated 240V/40AMP hardwired circuit for Harvia stove (copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted) plus a separate 120V/15AMP outlet for LED control panel and accent lighting -- all connections by a certified licensed electrician per local codes
• Foundation or base (concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck required; cinder blocks or equivalent required under support cradles if installed directly on ground to prevent settling)
• UV protectant stain for exterior cedar maintenance (recommended; never apply stain or lacquer to interior surfaces -- interior must remain all natural wood)

INSTALLATION NOTE: Three adults required for assembly. Approved base types: concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck. Support cradles must rest on cinder blocks or equivalent structure if installed directly on the ground to prevent settling over time. The surface must be level and capable of supporting over 1,000 lbs (sauna plus occupants). Maintain adequate clearance around the sauna and ensure ventilation vents remain unobstructed at all times. The 240V/40AMP stove circuit and the 120V/15AMP lighting circuit must both be installed by a certified licensed electrician using copper wire rated to 90 degrees Celsius minimum -- aluminum wiring is not permitted. The Harvia stove guard must be assembled and installed prior to first use. Inspect and tighten stainless steel bands with a 17mm wrench every 4 to 6 months. The Harvia stove must be off and covered when cleaning the sauna interior. Never apply stain to interior surfaces. For every 4 hours of continuous use, power the sauna off for 1 hour. Do not use during electrical storms. Warranty registration requires mailing the warranty card with proof of purchase to Golden Designs within 60 days of purchase date.

Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Klosters" 6 Person Barrel Traditional Sauna
Model Number: GDI-B006-01
Collection: Pacific Premium Cedar Barrel Sauna Series
Product Type: Outdoor barrel sauna -- traditional electric stove
Material: Pacific Premium Cedar (staves, benches, panels, backrests)
Use: Outdoor (indoor installation also permitted on appropriate level surface)

ASSEMBLED EXTERIOR DIMENSIONS (W x D x H):84 in x 91 in x 84 in
ASSEMBLED INTERIOR DIMENSIONS (W x D x H): 78 in x 83 in x 78 in

SHIPPING DIMENSIONS WITH STOVE (W x D x H): 44 in x 93 in x 39 in
SHIPPING DIMENSIONS WITHOUT STOVE (W x D x H): 44 in x 93 in x 26 in

WEIGHT:
Assembled Weight: 548 lbs
Shipping Weight with Stove and Stones: 795 lbs
Shipping Weight without Stove and Stones: 715 lbs

SHIPPING:
Ships In: 3 boxes
Delivery Method: LTL freight, curbside

CAPACITY:
6 persons

CONSTRUCTION:
Stave System: 66-68 staves (wide) plus 1 set narrow staves for barrel closure; extra staves included
Support Cradles: 4 (6-person specific; 2 and 4-person models use 3)
Stave Mounting Hardware: 8 stainless steel screws (6-person specific; 2 and 4-person models use 6)
Bench Support Pieces: 4 total (2 per side, 2 per bench front wood plank -- 6-person specific)
Stainless Steel Bands: Yes -- must be inspected and tightened every 4-6 months with 17mm wrench
Door: Bronze privacy tempered glass

HEATING:
Stove: Harvia WALL 8kW with built-in controls
Stove Guard: Yes -- wood housing included; assembles on front panel interior
Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Maximum Temperature: 190 degrees Fahrenheit / 88 degrees Celsius
Session Limit: Maximum 4 hours continuous use; power off 1 hour before next session

ELECTRICAL:
Stove Circuit: Dedicated 240V/40AMP hardwired (by certified licensed electrician)
Lighting Circuit: Separate 120V/15AMP outlet (for LED control panel and backrest accent lights)
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all electrical connections by certified licensed electrician per local codes

LIGHTING:
Interior: LED accent lighting via interior LED control panel -- Light 2 button activates; Light 1 has no function on this model
Backrest Accent Lights: Yes -- integrated into both backrests; connected during assembly

ACCESSORIES INCLUDED:
Sandglass (sand timer): Yes
Wooden Bucket and Scoop: Yes

ASSEMBLY:
Adults Required: 3
Tools Required: Battery-operated Phillips screwdriver, claw hammer, 17mm wrench, ladder; rope or strap optional for stave placement

BASE REQUIREMENTS:
Approved Types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
Ground Installation: Cinder blocks or equivalent required under support cradles to prevent settling
Surface: Must be level; must support 1,000+ lbs (sauna plus occupants)
Base not included

MAINTENANCE:
Stainless Steel Bands: Inspect and tighten every 4-6 months with 17mm wrench
Cedar Exterior: Treat with UV protectant every 1-2 years to prevent natural graying; never apply stain or lacquer to interior surfaces
Cleaning Interior: Water and non-toxic cleaner with damp cloth only; no chemical cleaners; stove must be off and covered during cleaning
Stove and Stones: Follow Harvia manufacturer instructions

WARRANTY:
Sauna Room, Control Panel, Harnesses and Lights: 5 years from date of purchase (when properly maintained)
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration: Mail completed warranty card with proof of purchase within 60 days of purchase to: Golden Designs, Inc., 3550 Jurupa Street, Unit B, Ontario, CA 91761
Warranty VOID if card is not mailed within 60 days
Online Registration: https://app.goldendesigninc.com/public/RegisteredProduct
