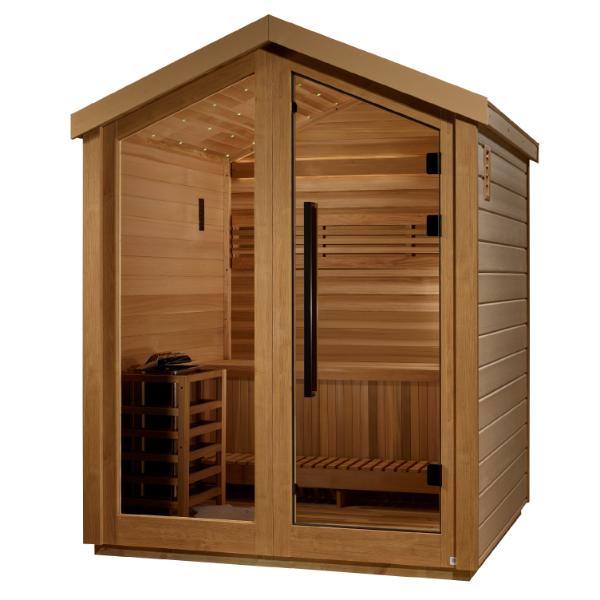

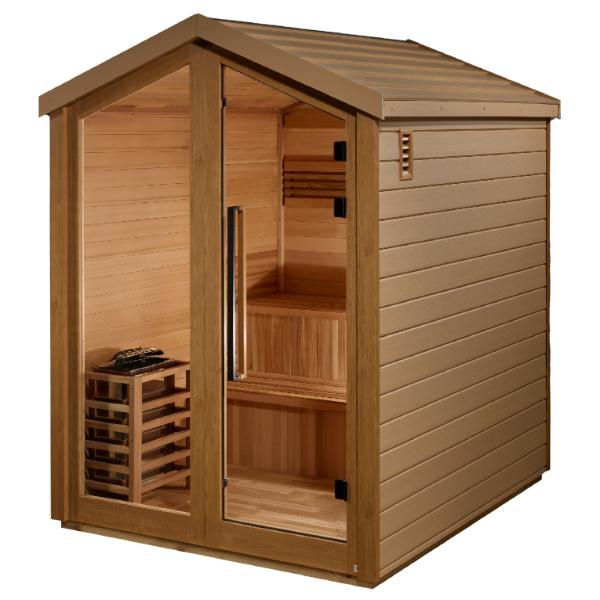

Golden Designs "Savonlinna" 3 Person Barn Outdoor Traditional Sauna (GDI-8503-01)

Features

A 3-person traditional sauna does not need to compromise on the experience to fit a smaller footprint. The Savonlinna proves that. At 69 inches wide by 68 inches deep by 89 inches tall, it carries the full barn silhouette of the larger Kaarina in a compact that works for a couple, a small household, or a solo buyer who wants generous headroom and room to move rather than a tight 2-person enclosure. The interior runs 63 inches wide by 62 inches deep by 82 inches tall -- proportioned right, lined entirely in natural Canadian Red Cedar, and heated by the same Harvia "WALL" 8kW stove used in the full-size 6-person model.



The Savonlinna is a custom production unit with limited quantity available. The exterior is all-weather composite construction built to handle outdoor exposure year-round without requiring the stain maintenance that natural wood exteriors demand. The interior is a different story entirely -- every surface is natural Canadian Red Cedar: walls, ceiling, benches, backrest, and floor, all left without stain or applied finish because the interior must remain completely natural. Red cedar is the material that defines the traditional sauna experience for most of the world, and that is not incidental. Its naturally occurring oils create the aroma, its fiber structure creates the warmth, and the visible grain of a well-installed cedar interior creates the aesthetic that makes a sauna feel like a sauna rather than a heated room. The Savonlinna delivers all of that in a structure that weighs 1,185 pounds assembled and does not require the footprint of a 6-person cabin to do it.



The Harvia "WALL" 8kW stove wall-mounts inside the cabin per the assembly instructions, with a dedicated 240V/40AMP hardwired circuit installed by a certified electrician. The lighting and audio system runs independently on a separate 120V/15AMP outlet: a Light/BT control panel manages the interior galaxy star ceiling color therapy lighting, the bench accent lighting, FM radio, and Bluetooth audio through the built-in performance speakers. The panel uses touch key technology with a 3-minute auto-lock safety feature. Both circuits are required; neither powers the other. The bronze privacy tempered glass door faces out with the wood handle inside and stainless steel handle outside, providing one-directional privacy from outside the cabin while letting ambient light through into the red cedar interior.



Unlike the 6-person Kaarina, the Savonlinna uses a single lower bench support rather than the upper-and-lower two-support system of the larger model, and includes a bench foot step -- a separate step panel that mounts on the floor panel in front of the bench support at the installer's preferred position. The stove guard wood housing assembles around the Harvia stove to protect occupants from the heater surface. The sandglass, wooden bucket, and scoop ship with the unit.



Assembly is designed for two adults on most steps, with the manual noting that two adults are sufficient for the 3-person side and left side wall panel lifts (versus the two-to-four required for the larger 6-person model). A battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders are required. The roof installs in two sections with internal wire routing for the ceiling lighting connections made before tile sections are replaced and the stainless steel flange is installed at the ridge.



Backyard Prime Living is a certified authorized reseller of Golden Designs. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.





Features

• Traditional Stove Only -- No Infrared -- The Savonlinna is a pure traditional sauna with a Harvia "WALL" 8kW stove as the sole heat source. No infrared system, no mode switching -- the full-intensity traditional steam and loyly experience in a 3-person cabin format.
• Harvia "WALL" 8kW Traditional Stove with Built-In Controls -- Wall-mounted inside the cabin with built-in controls. Ideal operating temperature is 170 to 185 degrees Fahrenheit; maximum is 190 degrees. Runs on a dedicated 240V/40AMP hardwired circuit.
• Stove Guard Included -- A wood housing assembles around the Harvia stove and mounts to the wall panel to protect occupants from the heater surface during sessions.
• 3-Person Capacity -- Interior dimensions of 63 inches wide by 62 inches deep by 82 inches tall provide genuine room for three adults with comfortable headroom. The Savonlinna is sized for couples and small households who want the quality of the Barn Series without the footprint of the 6-person Kaarina.
• All-Weather Exterior with Canadian Red Cedar Interior -- The exterior is all-weather composite construction requiring no stain maintenance. The interior is fully lined in natural Canadian Red Cedar -- walls, ceiling, benches, and backrest -- left completely natural without stain or finish. The interior must remain natural.
• Barn Silhouette -- The Savonlinna carries the same barn-style roof profile as the 6-person Kaarina in a compact 3-person form, giving it a more architecturally intentional presence than a flat-roof or gable-roof box sauna.
• Custom Production Unit -- The Savonlinna is a custom production, limited-quantity model. Availability is subject to Golden Designs' production schedule.
• Bronze Privacy Tempered Glass Door -- The entry door is bronze privacy tempered glass, providing one-directional privacy from outside view. Door handle installs wood-side interior and stainless steel-side exterior.
• Interior Galaxy Star Ceiling Color Therapy Lighting -- The ceiling features a galaxy star color therapy lighting system controlled via the Light/BT control panel. Operated independently from the bench accent lighting via separate buttons on the same panel.
• Interior Bench Accent Lighting -- Bench-level accent lighting is controlled independently from the ceiling lighting via the Light/BT control panel.
• Light/BT Control Panel with FM Radio and Bluetooth -- Manages ceiling lights, bench lights, FM radio, and Bluetooth audio. Touch key technology with a 3-minute auto-lock safety feature. Unlock by pressing and holding the power button. Bluetooth pairing requires no password; display shows "bLU" when enabled. FM available via TUN-/TUN+ buttons.
• Built-In Performance Speakers -- Interior audio speakers deliver Bluetooth streaming or FM radio directly inside the cabin.
• Two Separate Electrical Circuits -- The Harvia stove requires a dedicated 240V/40AMP hardwired circuit. The Light/BT control panel for lights and audio requires a separate 120V/15AMP outlet. The two circuits operate independently.
• Bench Foot Step Included -- The GDI-8503-01 includes a bench foot step that mounts on the floor panel in front of the bench support at the installer's preferred position. This is specific to the 3-person model; the 6-person Kaarina does not include a bench foot step.
• Single Lower Bench Support -- The 3-person format uses a single lower bench support (not the upper-and-lower two-support system of the 6-person Kaarina). The bench installs on top of the lower support.
• Roof Installs in Two Sections -- Left and right roof panels install separately with internal wire connections for ceiling lighting made before tile sections are replaced and the stainless steel flange is installed at the ridge.
• Two Adults Sufficient for Most Steps -- The manual specifies that two adults are sufficient for the side wall panel lifts on the 3-person model, compared to two-to-four adults required for the 6-person Kaarina.
• Ships in 11 Boxes -- The Savonlinna arrives in 11 separate boxes via LTL freight on a pallet. Curbside delivery only.
• Outdoor Use Rated -- The all-weather exterior composite is built for year-round outdoor exposure. A waterproof cover is recommended when the sauna is not in use for extended periods.
• 5-Year Warranty on Wood Structure, Control Panel, and Harnesses -- Golden Designs warrants the sauna room, control panel, and harnesses for 5 years from original date of purchase (when properly maintained). Harvia stove is covered under its own manufacturer warranty. Warranty registration required within 60 days of purchase.



What's Included

ALL GDI-8503-01 CONFIGURATIONS INCLUDE:

• All-weather exterior cabin structural kit -- floor panel, rear wall panel, left side wall panel, right side wall panel, right side front wall panel (includes bronze privacy tempered glass door), left side front wall panel, left and right roof panel sections, stainless steel roof tile flange
• Harvia "WALL" 8kW traditional sauna stove with built-in controls and stove stones (shipped separately)
• Stove guard wood housing
• Lower bench support (single; 3-person model -- no upper bench support on this model)
• Bench panels
• Bench foot step (mounts on floor panel in front of bench support; included on 3-person model only)
• Canadian Red Cedar natural interior finish throughout (walls, ceiling, benches, backrest)
• Interior backrest with bench accent lighting
• Interior galaxy star ceiling color therapy lighting system
• Light/BT control panel (touch key; manages ceiling lights, bench lights, Bluetooth audio, and FM radio; 3-minute auto-lock)
• Built-in performance speakers
• Bronze privacy tempered glass door with wood interior handle and stainless steel exterior handle
• Sandglass (sauna sand timer)
• Wooden bucket and scoop
• All assembly hardware and screws
• Owner's manual

NOT INCLUDED / SOLD SEPARATELY:

• Sauna foundation or base (concrete slab, concrete pavers, gravel, cinder blocks, or solid wood deck -- customer responsibility; structure must prevent settling into ground)
• Electrical wiring and circuit installation: dedicated 240V/40AMP hardwired circuit for Harvia stove, PLUS separate 120V/15AMP outlet for Light/BT control panel -- all connections must be made by a certified electrician; copper wire with 90-degree Celsius rating required; aluminum wiring not permitted
• Waterproof cover for periods of extended non-use (recommended; sold separately)
• Additional accessories (robe hooks, thermometer -- available separately)



INSTALLATION NOTE: The location must be dry, level, and away from any water source. Two adults are sufficient for most assembly steps on the 3-person model. Tools required: battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, and two ladders. The surface must be capable of supporting the assembled weight plus occupants. Approved base types include concrete slab, concrete pavers, gravel, cinder blocks, and solid wood deck. For the Harvia WALL stove, the electrician must run the power line through the vent hole in the wall panel and close the vent before mounting the heater -- the vent cannot be opened once the heater is installed. The roof installs in two sections; ceiling light wire connections must be made during installation before tile sections are replaced and the stainless steel flange is installed. The blue antenna wire at the circuit connection junction box must be uncoiled and extended before the bench support is installed. All electrical connections must be made by a certified licensed electrician using copper wire rated at 90 degrees Celsius minimum; aluminum wiring is not permitted. Do not use the sauna during electrical storms. For every four hours of use, shut the sauna down for one hour to cool down.





Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Savonlinna" 3 Person Barn Outdoor Traditional Sauna
Model Number: GDI-8503-01
Collection: Barn Series Outdoor Traditional Sauna
Product Type: Outdoor traditional sauna -- electric stove only, no infrared
Exterior Material: All-weather composite construction
Interior Material: Natural Canadian Red Cedar (no stain; must remain natural)
Roof Style: Barn silhouette
Production Status: Custom production unit -- limited quantity available

EXTERIOR DIMENSIONS:
Assembled Dimensions Exterior (W x D x H): 69 in x 68 in x 89 in
Roof Overhang: Adds approximately 4 in to depth (total depth with overhang: approx. 72 in)

INTERIOR DIMENSIONS:
Interior Dimensions (W x D x H): 63 in x 62 in x 82 in

WEIGHT:
Assembled Weight: 1,185 lbs
Shipping Weight: 1,385 lbs

SHIPPING:
Ships in: 11 boxes
Delivery Method: LTL freight, curbside only, pallet delivery
Ships From: Ontario, CA (ZIP 91761)

CONSTRUCTION:
Exterior: All-weather composite material
Interior: Natural Canadian Red Cedar (walls, ceiling, benches, backrest)
Door: Bronze privacy tempered glass; wood handle interior, stainless steel handle exterior
Bench System: Single lower bench support with bench panels and bench foot step (3-person specific)
Capacity: 3 people

HEATING:
Stove: Harvia "WALL" 8kW with built-in controls
Stove Stones: Included
Stove Guard: Included (wood housing)
Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Maximum Temperature: 190 degrees Fahrenheit
Infrared System: None -- traditional stove only

LIGHTING AND AUDIO:
Interior Ceiling Lighting: Galaxy star ceiling color therapy lighting system
Interior Bench Lighting: Backrest bench accent lighting (controlled separately from ceiling lights)
Control Panel: Light/BT control panel; touch key technology; manages ceiling lights, bench lights, Bluetooth audio, and FM radio; 3-minute auto-lock safety feature (press and hold power button to unlock)
Bluetooth: Included (no password required; display shows "bLU" when enabled; TUN-/TUN+ to scroll songs; VOL-/VOL+ for volume)
FM Radio: Included (TUN-/TUN+ to scroll stations; simple antenna system may not receive all stations in all areas)
Audio: Built-in performance speakers

ELECTRICAL:
Stove Circuit: Dedicated 240V/40AMP hardwired circuit (installed by certified electrician)
Lights and Audio Circuit: Separate 120V/15AMP outlet
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all connections must be made by a certified licensed electrician

ASSEMBLY:
Adults Recommended: 2 (sufficient for most steps on 3-person model)
Tools Required: Battery-operated Phillips screwdriver, rubber mallet, claw hammer, leveler, 2 ladders

BASE REQUIREMENTS:
Approved base types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
Surface must be level, dry, and capable of supporting assembled weight plus occupants
Base not included

MAINTENANCE:
Interior: Wipe with plain water and soft cloth only; no chemical-based or aerosol cleaners; interior must remain natural (no stain)
Exterior: All-weather composite -- no stain maintenance required
Heater and stones: Follow Harvia manufacturer instructions; heater must be off and covered during interior cleaning

WARRANTY:
Sauna Room, Control Panel, Harnesses: 5 years from original date of purchase (when properly maintained)
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration Required: Within 60 days of purchase date
Warranty Registration: https://app.goldendesigninc.com/public/RegisteredProduct



Downloads / Manuals

Golden Designs "Savonlinna" Manual
