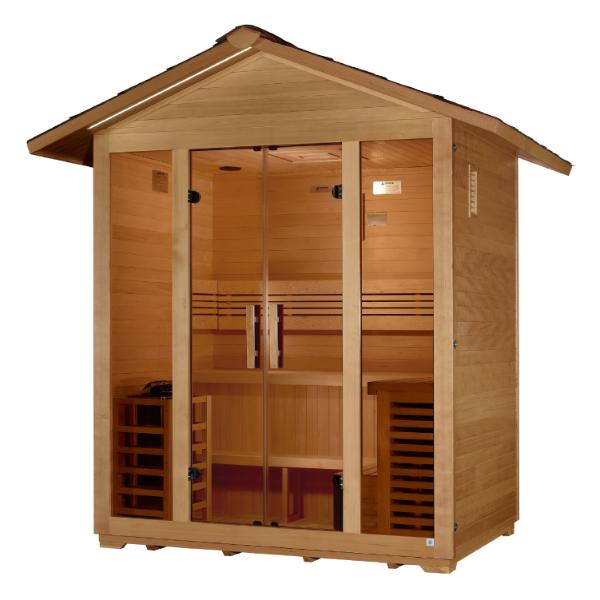

Golden Designs "Vorarlberg" 5 Person Traditional Outdoor Sauna (GDI-8105-01)



Description

The Vorarlberg is what a traditional sauna looks like when the design starts from the outside in -- when the goal is an outdoor cabin that belongs in the backyard as a permanent structure, not a box you work around or hide under a cover. With a peaked gable roof finished in asphalt shingles, a natural reforested Canadian Hemlock exterior with a waterproof clear stain, and a full-height front wall with a bronze privacy tempered glass door flanked by fixed glass stationary panels, the Vorarlberg presents the way a sauna should -- confident, finished, and built to stay. It is the traditional steam sauna format with no infrared compromise and no hybrid complexity, just a Harvia "WALL" 8kW stove and the kind of cabin that makes the heat better because the space feels right.



The structure arrives as a pre-cut, pre-finished panel kit that assembles with a battery-operated screwdriver, rubber mallet, and two ladders. Three adults are recommended -- not because the system is technically difficult, but because the wall panel installation involves lifting and holding the rear, side, and front wall panels into position while they are buckle-clamped together. The panel system itself is engineered for clean, repeatable alignment: each panel slides onto the floor panel and locks to the adjacent walls via integrated buckles, eliminating the need for extensive fastener placement during the critical structural steps. The exterior roof panels -- each carrying the asphalt shingle finish -- install over triangular support frames attached to the front and rear wall panels, with a ridge tile piece completing the peak. The result is a fully weather-sealed gable roof that sheds rain and snow without requiring a separate rain cover over the sauna during normal use.



Inside, the Vorarlberg is a purpose-built traditional sauna room for five people. The bench system includes multiple bench supports, two full benches, a backrest positioned approximately 9 inches above the bench surface, and entry steps -- all in natural Canadian Hemlock interior finish that runs throughout the walls, ceiling, and floor. The Harvia WALL stove mounts to the interior wall per the assembly instructions, with the power line routed through the dedicated vent hole in the wall panel before heater installation; the vent cannot be opened once the heater is in place. The stove guard -- a three-sided wood housing installed around the heater -- protects occupants from the heater surface and is included in the kit. Sessions run between 170 and 185 degrees Fahrenheit for ideal traditional heat, with the ability to push to 190 degrees for a more intense experience.



The interior control panel runs on touch key technology and manages roof accent lighting, interior chromotherapy color lighting with a red light therapy feature, FM radio, and Bluetooth audio through the built-in performance speakers -- all independent of the stove, which runs on its own dedicated 240V/40AMP hardwired circuit. The lighting and audio systems run on a separate 120V/15AMP outlet. A sandglass, wooden bucket, and ladle scoop ship in the kit for an authentic traditional session from the first use.



The Vorarlberg carries a 5-year warranty on the wood structure, control panel, and harnesses for residential use and 1 year for commercial use, with the Harvia stove covered under its own manufacturer warranty. Warranty registration is required within 60 days of purchase.



Backyard Prime Living is a certified authorized reseller of Golden Designs. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Natural Reforested Canadian Hemlock Construction -- The Vorarlberg is built from 100% natural reforested Canadian Hemlock throughout, finished with a waterproof clear stain on the exterior. The clear stain requires annual reapplication to maintain its protective qualities and keep the natural hemlock color from graying due to UV exposure.
• Peaked Gable Roof with Asphalt Shingles -- A full gable roof finished in asphalt shingles is part of the structural kit, providing permanent, year-round weather protection without requiring a separate rain cover during normal use. The roofline overhang extends the overall footprint to 98.9 inches wide by 72.6 inches deep.
• Pre-Cut Panel System with Buckle-Clasp Assembly -- Wall panels, floor panel, bench system, and roof panels arrive pre-cut and pre-finished. Panels align and lock together via integrated buckles, eliminating the need for extensive field fastening during the structural build. Three adults and a battery-operated screwdriver are recommended for assembly.
• Harvia "WALL" 8kW Traditional Stove with Built-In Controls -- The Vorarlberg ships with a Harvia "WALL" 8kW traditional sauna stove, wall-mounted inside the cabin per the assembly instructions. Harvia is one of the most respected stove manufacturers in traditional sauna. Ideal operating temperature is 170 to 185 degrees Fahrenheit; maximum is 190 degrees.
• Stove Guard Included -- A three-sided wood housing installs around the Harvia stove to protect occupants from direct contact with the heater surface during sessions.
• Bronze Privacy Tempered Glass Door with Stationary Glass Side Panels -- The front wall of the Vorarlberg features a full-height bronze privacy tempered glass door flanked by fixed glass stationary panels, giving the front face a clean, open appearance while maintaining privacy from outside view.
• 5-Person Capacity -- Interior dimensions of 74.2 inches wide by 53.2 inches deep by 78 inches tall provide genuine room for group sessions, making the Vorarlberg appropriate for families and light commercial wellness settings.
• Full Interior Bench System with Steps and Backrest -- Two full benches, multiple bench supports, entry steps, and a backrest (positioned approximately 9 inches above the bench surface) are included and install as part of the standard assembly sequence. All bench and interior components are natural Canadian Hemlock.
• Interior Chromotherapy Color Lighting System with Red Light Therapy -- Full chromotherapy color lighting runs from the interior control panel with a dedicated red light therapy feature accessible via the included remote. All chromotherapy and red light functions operate via the remote control from inside the sauna.
• Exterior Roof Accent Lighting -- Integrated lighting along the roof exterior provides ambient lighting after dark.
• Touch Key Interior Control Panel with FM Radio and Bluetooth -- The touch key control panel manages roof lighting, chromotherapy lighting, FM radio, and Bluetooth streaming from inside the cabin. The panel has a 3-minute auto-lock safety feature; press and hold the power button to unlock.
• Built-In Performance Speakers -- Interior audio speakers deliver sound directly inside the cabin from either Bluetooth or FM radio.
• Sandglass, Bucket, and Ladle Scoop Included -- Traditional sauna accessories ship in the kit for immediate use.
• Two Separate Electrical Circuits Required -- The Harvia stove requires a dedicated 240V/40AMP hardwired circuit installed by a certified electrician. Interior lighting and audio control panel requires a separate 120V/15AMP outlet.
• Outdoor Use Only -- The Vorarlberg is designed and rated for outdoor installation. The gable roof provides weather protection; however, a waterproof cover is recommended when the sauna is not in use for extended periods, particularly in harsh climates.
• Residential and Light Commercial Use -- The Vorarlberg is rated for both residential backyard installations and light commercial applications.
• Ships in 10 Cartons -- The sauna arrives in 10 separate cartons via LTL freight on a pallet. Curbside delivery only.
• 5-Year Residential Warranty / 1-Year Commercial Warranty -- Golden Designs warrants the wood structure, control panel, and harnesses for 5 years for residential use and 1 year for commercial use from original date of purchase. Harvia stove is covered under its own manufacturer warranty. Warranty registration required within 60 days of purchase.

What's Included

ALL GDI-8105-01 CONFIGURATIONS INCLUDE:

• Canadian Hemlock cabin structural kit -- floor panel, rear wall panel, left side wall panel, right side wall panel, front wall panel (includes bronze privacy tempered glass door and stationary glass side panels), inner roof panel, left and right exterior roof panels with asphalt shingles, ridge tile
• Triangular exterior roof panel supports
• Harvia "WALL" 8kW traditional sauna stove with built-in controls and stove stones (shipped in separate carton)
• Three-sided stove guard wood housing
• Bench support panels (multiple)
• Two full benches - Entry steps (multi-piece step assembly)
• Interior backrest - Interior chromotherapy color lighting system with red light therapy feature and remote control
• Exterior roof accent lighting (integrated into left exterior roof panel)
• Touch key interior control panel with FM radio and Bluetooth
• Built-in performance speakers - Stainless steel door hinges and door handle (interior and exterior)

• All assembly hardware, buckle clamps, and screws - Owner's manual

NOT INCLUDED / SOLD SEPARATELY:

• Sauna foundation or base (concrete slab, pavers, gravel, cinder blocks, or solid wood deck -- customer responsibility)
• Electrical wiring and circuit installation: dedicated 240V/40AMP circuit (hardwired) for Harvia stove, PLUS separate 120V/15AMP outlet for lighting and audio control panel -- all connections must be made by a certified electrician
• Copper wire with 90-degree Celsius rating (supplied by electrician; aluminum wiring not permitted)
• Exterior waterproof cover for periods of extended non-use (recommended; sold separately)
• Exterior clear waterproof stain for annual re-application (not included; customer maintenance responsibility)
• Thermometer (not listed in standard kit -- verify current inclusion with Golden Designs)
• Additional accessories (robe hooks, magazine rack, drink shelf -- available separately)



INSTALLATION NOTE: Location must be dry, level, and away from any water source. The sauna surface must support the assembled weight plus occupants, which can exceed 1,000 lbs. Approved base types include concrete slab, concrete pavers, gravel, cinder blocks, and solid wood deck. Three adults are required for installation. For the Harvia WALL stove, the electrician must run the power line through the dedicated vent hole in the wall panel and close the vent before mounting the heater -- the vent cannot be opened once the heater is installed. All electrical connections must be made by a certified licensed electrician using copper wire rated at 90 degrees Celsius minimum; aluminum wiring is not permitted. The exterior clear waterproof stain must be reapplied annually to prevent the hemlock from graying due to UV exposure. Do not use the sauna during electrical storms.



Specifications

Manufacturer: Golden Designs Inc.
Model Name: "Vorarlberg" 5 Person Traditional Outdoor Sauna
Model Number: GDI-8105-01
Collection: Classic Series Outdoor Traditional Sauna
Product Type: Outdoor traditional sauna -- electric stove, no infrared
Wood Species: Natural Reforested Canadian Hemlock
Exterior Finish: Waterproof clear stain (requires annual reapplication)
Roof: Asphalt shingle gable roof
Use: Residential / Light Commercial

EXTERIOR DIMENSIONS:
Assembled Dimensions with Roof Overhang (W x D x H): 98.9 in x 72.6 in x 97.4 in
Assembled Dimensions without Overhang (W x D x H): 78 in x 56.7 in x 97.4 in

INTERIOR DIMENSIONS:
Interior Dimensions (W x D x H): 74.2 in x 53.2 in x 78 in

WEIGHT:
Assembled Weight: 1,010 lbs
Shipping Weight: 1,120 lbs
LTL Pallet Dimensions: 85 in W x 42 in D x 95 in H

SHIPPING:
Ships in: 10 cartons
Carton A: 79 in W x 4 in D x 79 in H, 179 lbs
Carton B: 76 in W x 7 in D x 79 in H, 95 lbs
Carton C: 56 in W x 7 in D x 80 in H, 130 lbs
Carton D: 56 in W x 10 in D x 77 in H, 187 lbs
Carton E: 55 in W x 8 in D x 76 in H, 245 lbs
Carton F: 33 in W x 9 in D x 79 in H, 110 lbs
Carton G: 10 in W x 6 in D x 79 in H, 18 lbs
Carton H: 11 in W x 11 in D x 16 in H, 5 lbs
Stove Carton: 13 in W x 20 in D x 28 in H, 35 lbs
Stones Carton: 11 in W x 16 in D x 6 in H, 45 lbs
Delivery Method: LTL freight, curbside only, pallet delivery
Ships From: Ontario, CA (ZIP 91761)
Processing Time: 1 business day

CONSTRUCTION:
Material: Natural Reforested Canadian Hemlock
Exterior Finish: Waterproof clear stain (annual reapplication required)
Roof: Asphalt shingle gable roof with asphalt ridge tile
Door: Bronze privacy tempered glass with stainless steel hinges and handle
Front Wall: Full-height door with flanking fixed glass stationary panels
Interior Panels: Natural Canadian Hemlock (no stain; must remain natural)
Assembly System: Pre-cut panel buckle-clasp system; three adults required; battery-operated screwdriver, rubber mallet, and two ladders needed

HEATING:
Stove: Harvia "WALL" 8kW traditional sauna stove with built-in controls
Stove Stones: Included
Stove Guard: Included (three-sided wood housing)
Ideal Temperature Range: 170 to 185 degrees Fahrenheit
Maximum Temperature: 190 degrees Fahrenheit

LIGHTING AND AUDIO:
Interior Lighting: Interior chromotherapy color lighting system with red light therapy feature; includes remote control
Exterior Lighting: Roof accent lighting (integrated into exterior roof panel)
Control Panel: Touch key technology; manages roof lighting, chromotherapy lighting, FM radio, and Bluetooth audio; 3-minute auto-lock safety feature
Bluetooth Range: Approximately 10 feet
Audio: Built-in performance speakers
Control System Voltage: AC110V to AC240V, 50Hz/60Hz

ELECTRICAL:
Stove Circuit: Dedicated 240V/40AMP hardwired circuit (installed by certified electrician)
Lighting/Audio Circuit: Separate 120V/15AMP outlet
Wire Requirement: Copper wire, 90-degree Celsius rating minimum; aluminum wiring not permitted
Electrician Required: Yes -- all connections must be made by a certified licensed electrician

CAPACITY: 5 people

BASE REQUIREMENTS:
Approved base types: Concrete slab, concrete pavers, gravel, cinder blocks, solid wood deck
Surface must be level, dry, and capable of supporting assembled weight plus occupants (can exceed 1,000 lbs)
Base not included

MAINTENANCE:
Exterior stain: Reapply clear waterproof stain annually (more frequently in harsh climates; apply sealant up to twice per year in severe environments)
Interior: Wipe with plain water and soft cloth only; no chemical-based or aerosol cleaners; no stain on interior surfaces
Heater/stones: Follow Harvia manufacturer instructions; heater must be off and covered during interior cleaning

WARRANTY:
Wood Structure, Control Panel, Harnesses (Residential): 5 years from original date of purchase
Wood Structure, Control Panel, Harnesses (Commercial): 1 year from original date of purchase
Stove: Covered under Harvia manufacturer warranty (separate)
Warranty Registration Required: Within 60 days of purchase date
Warranty Registration: https://app.goldendesigninc.com/public/RegisteredProduct
