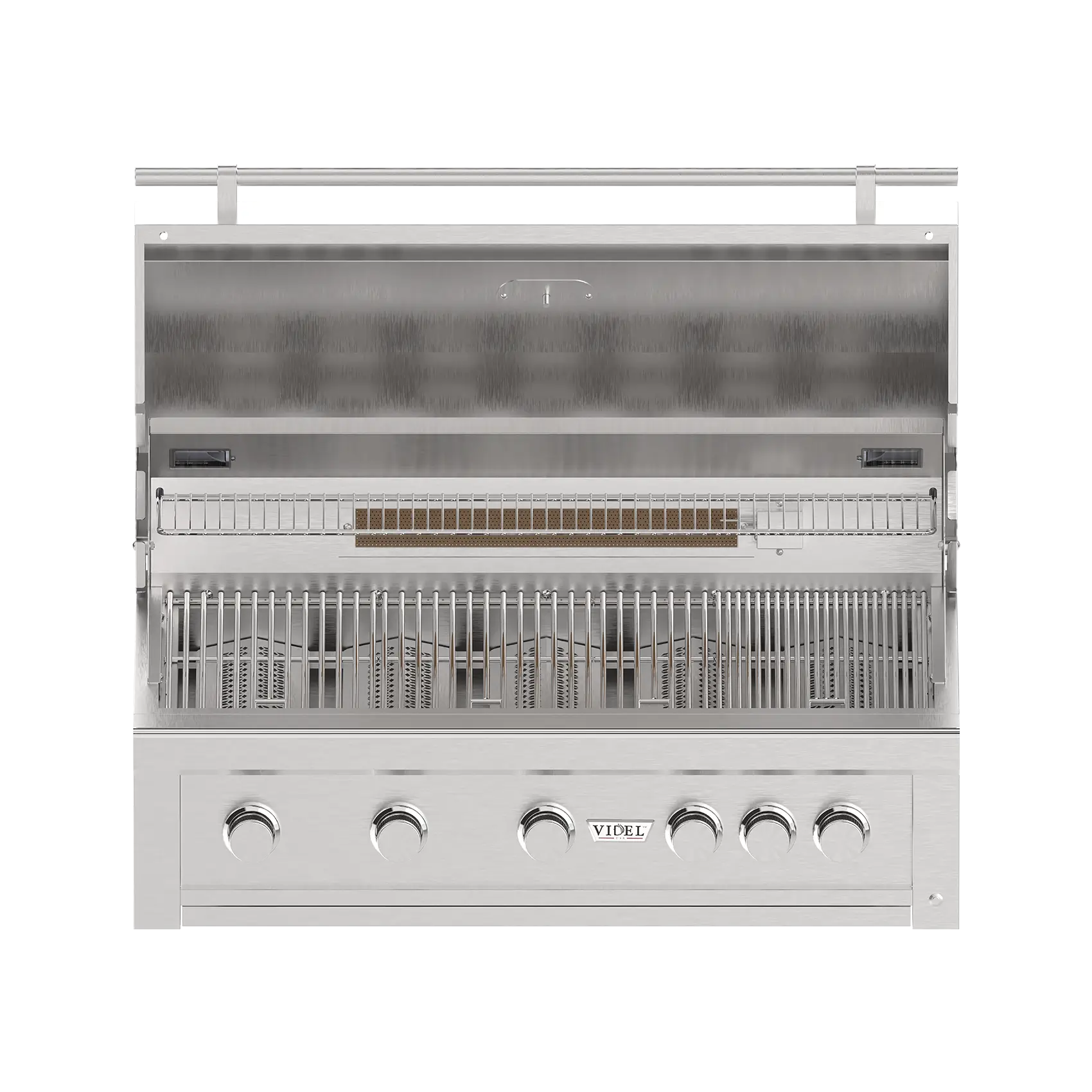

Videl USA Gran Fuego 42



Description

A built-in grill earns its place in an outdoor kitchen by doing things a freestanding cart grill cannot: integrating cleanly into the surrounding structure, holding heat more efficiently because the island contains it on three sides, and anchoring the entire outdoor kitchen layout as the piece everything else is designed around. The Videl Gran Fuego 42 is built for that role. At 42 inches wide, five Cast Stainless Steel Onyx Pro Burners, and 114,000 BTU of total output, it is designed to occupy the center position of a serious outdoor kitchen and perform at the level the size suggests.



The burner system is the core of the Gran Fuego 42 and where Videl concentrates the most of its engineering. The five Cast Stainless Steel Onyx Pro Burners are built to a commercial-grade specification -- cast, not tubular, because cast stainless steel holds its shape and maintains even gas distribution over years of high-heat cycling in ways that formed steel burners do not. Four of the five burners are the primary cooking burners covering the 770 square inch primary cooking area. The fifth is a built-in infrared burner positioned for precision searing at intense heat -- the kind of surface temperature that caramelizes the exterior of a steak without overcooking the interior, which is what separates a properly seared piece of protein from one that just gets hot. The Flame Thrower ignition system lights the burners electronically. Flame Stabilizing Grids and Flame Tamers sit below the cooking grates to distribute heat evenly across the cooking surface and vaporize drippings into flavor. The full-width drip tray spans the entire grill interior for clean, contained grease management.



Above the burners, the 9mm stainless steel cooking rods -- thicker than the 6mm or 7mm rods on most grill grates in this category -- retain heat and produce deep, consistent sear marks without the temperature drop that thinner rods cause when cold protein hits the surface. An adjustable and removable warming rack adds 243 square inches of secondary cooking area for holding finished proteins, toasting buns, or keeping sides warm while the main grill stays hot. Total cooking surface is 1,013 square inches.



The Hood System on the Gran Fuego 42 is double-lined and designed for natural convection -- the curved interior profile channels hot air in a continuous loop that eliminates hot spots and cold zones and allows the hood to function as a genuine convection oven when fully closed, appropriate for smoking, indirect cooking, and roasting at temperature. CoolGrip handles on the hood and CoolTouch Knobs on the front panel let the cook operate the grill without pot holders. Dual interior lights illuminate the cooking surface. A premium temperature gauge on the hood face reads the hood temperature accurately. The Quick Release Panel on the front provides access to internal components without disassembly of the island.



The grill ships ready for Natural Gas installation. A gas conversion kit is included for Liquid Propane conversion. All gas connections must be made by a licensed gas professional in accordance with local codes. Natural gas supply pressure must be set to 4.0 inches water column with the supplied NG regulator. LP supply pressure must be set to 11 inches water column with an LP regulator.



Certified to ANSI STD Z21.58-2022 / CSA STD 1.6-2022 (Outdoor Cooking Appliance). Made in the USA. Backed by Videl's tiered limited warranty: Lifetime on cast stainless steel burners, 2-year on major structural and functional components, 1-year on valves, knobs, and lights.



Backyard Prime Living is a certified authorized reseller of Videl USA. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• 5 Cast Stainless Steel Onyx Pro Burners -- Four primary cooking burners plus one dedicated built-in infrared burner. Cast stainless steel construction maintains even gas distribution and structural integrity over years of high-heat cycling. Covered by Videl's Lifetime Limited Warranty.
• Built-In Infrared Burner -- High-intensity infrared burner for precision searing at temperatures that caramelize the exterior without overcooking the interior. Delivers intense, even radiant heat across the searing zone.
• 114,000 BTU Total Output -- High-output burner system for fast preheating, high-heat searing, and sustained temperature across the full cooking surface.
• 1,013 Square Inches Total Cooking Surface -- 770 square inches primary cooking area plus 243 square inches on the adjustable, removable warming rack. Full-sized capacity for large-group grilling.
• 9mm Stainless Steel Cooking Grate Rods -- Thicker than standard grate rods, retaining more heat and delivering deeper sear marks with less temperature drop when protein hits the surface.
• Double-Lined Natural Convection Hood -- The double-lined hood is engineered for natural convection: the curved interior profile circulates heat continuously to eliminate hot and cold spots, allowing the Gran Fuego 42 to function as a full convection cooking chamber for smoking, indirect roasting, and temperature-maintained baking with the lid closed.
• HeatWave Chamber -- Videl's HeatWave Chamber system provides unparalleled heat retention and distribution across the cooking surface. Ensures consistent cooking results at every position on the grill.
• Flame Stabilizing Grids and Flame Tamers -- Positioned below the cooking grates to distribute heat evenly across the full cooking surface and vaporize drippings for enhanced flavor. Reduces flare-ups and ensures consistent surface temperature.
• Flavor Bars -- Vaporize drippings to infuse food with smoky, flavorful undertones on every cook.
• Flame Thrower Ignition -- Electronic ignition system for fast, reliable burner lighting. The Flame Runner ignition system channels ignition to each burner in sequence.
• CoolTouch Knobs -- Front panel control knobs remain cool to the touch during operation. Five individual burner controls for precise zone cooking.
• CoolGrip Handle -- Ergonomic hood handle designed to remain cool and comfortable during operation.
• Dual Interior Lights -- Two interior lights illuminate the full cooking surface for evening and low-light grilling sessions.
• Premium Temperature Gauge -- Hood-mounted temperature gauge provides accurate readings of the interior cooking environment.
• Adjustable / Removable Warming Rack -- 243 square inches of secondary cooking area for holding, toasting, or warming. Adjustable height and removable for when the full primary grill surface is needed.
• Quick Release Panel -- Front panel opens with a quick release for easy access to internal grill components and gas connections without island disassembly.
• Full-Width Drip Tray -- Spans the entire interior width to capture grease and drippings cleanly. Removable for easy cleaning.
• 304 Stainless Steel Construction Throughout -- Full 304-grade stainless steel exterior, hood, and structural components for corrosion resistance and long-term outdoor durability.
• Storm Guard Resilience -- Weather-resistant construction designed to withstand outdoor conditions including rain, wind, and temperature extremes year-round.
• Ships Ready for Natural Gas -- Arrives configured for NG. Gas conversion kit included for LP conversion. All conversions must be performed by a licensed gas professional.
• Certified to ANSI STD Z21.58-2022 / CSA STD 1.6-2022 -- Certified outdoor cooking appliance. Certification code: LC16070-1.
• Lifetime Warranty on Cast Stainless Steel Burners -- Videl's Lifetime Limited Warranty covers the cast stainless steel burners against defects in materials and workmanship under normal residential use.



What's Included

GRAN FUEGO 42 (VG-5B42) INCLUDES:

• Videl Gran Fuego 42 built-in grill unit (304 stainless steel exterior and hood; fully assembled)
• 5 Cast Stainless Steel Onyx Pro Burners (4 primary + 1 infrared; pre-installed)
• 9mm Stainless Steel Cooking Grates
• Flame Stabilizing Grids
• Flame Tamers / Heat Deflectors
• Flavor Bars
• Full-Width Drip Tray
• Adjustable / Removable Warming Rack
• CoolTouch Knobs (5)
• CoolGrip Handle
• Dual Interior Lights
• Flame Thrower Ignition System
• Premium Hood Temperature Gauge
• Quick Release Panel
• Natural Gas Regulator (set to 4.0" W.C.; included for NG installation)
• Gas Conversion Kit (for LP conversion -- all conversions by licensed gas professional)
• Owner's Manual / Installation Guide (ANSI STD Z21.58-2022 / CSA STD 1.6-2022 certified)
• Warranty documentation

OPTIONAL ACCESSORIES (SOLD SEPARATELY):

• Onyx Sear Burner
• Smoker Box
• Charcoal Tray
• VIDEL Pro Grates
• Commercial Timer
• Grilling Basket
• Wireless Probe
• Grill Cart
• Dual Tank Regulator
• LP/NG Quick Release

NOT INCLUDED / SOLD SEPARATELY:

• Gas supply line and outdoor kitchen island cutout
• LP regulator (required for LP installation; supply to LP at 11" W.C.; sold separately)
• Installation labor (all gas connections must be made by a licensed gas professional in accordance with local codes and ANSI Z223.1 / NFPA 54)



INSTALLATION NOTE: This grill is designed for built-in installation into an outdoor kitchen island. The outdoor kitchen cavity must be adequately vented -- failure to vent can result in fire or explosion. All gas connections must be made by a licensed gas professional. Never use this grill in enclosed areas. For Natural Gas: use the supplied NG regulator set to 4.0" water column pressure. For Liquid Propane: use an LP regulator set to 11" water column pressure. Perform a leak test before each use using soapy water solution -- never use an open flame to check for gas leaks. The grill must be installed per the installation guide on pages 8-24 of the owner's manual; failure to comply with basic setup instructions may void all warranties. Do not use the grill without first leak testing all gas connections.

CUTOUT DIMENSIONS FOR ISLAND INSTALLATION:
Cutout Width: 38.5 in
Cutout Height: 10 in
Cutout Depth: 22 in



Specifications

Manufacturer: Videl USA (a division of The Outdoor Plus Company, Inc.)
Product Name: Gran Fuego 42 -- 42 Inch 5-Burner Built-In Grill with Infrared Burner
Country of Origin: USA
Installation Type: Built-In

OVERALL DIMENSIONS:
Width: 42 in
Height: 22 in
Depth: 25.75 in

CUTOUT DIMENSIONS:
Cutout Width: 38.5 in
Cutout Height: 10 in
Cutout Depth: 22 in

COOKING SURFACE:
Primary Cooking Area: 770 sq. in
Secondary Cooking Area (Warming Rack): 243 sq. in
Total Cooking Surface: 1,013 sq. in

BTU RATING:
114,000 BTU total

BURNERS:
Number of Burners: 5 (4 primary + 1 infrared)
Burner Type: Cast Stainless Steel Onyx Pro Burners
Burner Material: Cast 304 Stainless Steel

COOKING GRATES:
Rod Thickness: 9mm
Material: Stainless Steel

CONSTRUCTION:
Material: 304 Stainless Steel (exterior, hood, and structural components)
Hood: Double-lined, natural convection design

FUEL:
Gas Type: Natural Gas (NG) or Liquid Propane (LP)
Ships As: Natural Gas ready; LP conversion kit included
NG Supply Pressure: 4.0 in W.C. (with supplied NG regulator)
LP Supply Pressure: 11 in W.C. (with LP regulator -- sold separately)

IGNITION:
Flame Thrower electronic ignition system

WARRANTY:
Cast Stainless Steel Burners: Lifetime Limited Warranty (residential use)
Fire Box, Hood, Handle, Bezel, Grates, Flavor Bars, Drip Pan, Rotisserie Burner, Transformer, Warming Rack, Flame Tamer: 2-Year Limited Warranty (residential use)
Gas Valve, Knob, Light: 1-Year Limited Warranty (residential use)
Warranty applies to products purchased and located within the United States and Canada. Proof of purchase required. Commercial use not covered.
Warranty Service: support@videlusa.com | (909) 460-5579 | Mon-Fri 7am-5pm PST



Manuals / Downloads

Videl USA Gran Fuego 42 Spec Sheet

Videl USA Gran Fuego 42 Grill Manual

Videl USA Gran Fuego 42 Grill Features Sheet
