Videl Grill Signature Collection 1



Description

The Videl Grill Signature Collection 1 is a complete 72-inch knock-down BBQ island package built around the Gran Fuego 36 -- Videl USA's flagship 4-burner 304 stainless steel built-in grill. The island assembles from two modular sections: a 48-inch knock-down island and a 24-inch knock-down island that combine to form a 72-inch wide, 36-inch tall, 32-inch deep outdoor kitchen frame. The entire package is 304 stainless steel throughout.



The format is a working outdoor kitchen in one package. The Gran Fuego 36 occupies the grill section. The 36-inch double-door cabinet below the grill provides enclosed storage for tools, accessories, and outdoor essentials. The two KD island sections are designed for fast field assembly -- the knock-down build means all components arrive flat-packed and go together on site without cutting or fabrication. Once the frame is assembled, customers add their own cement board and finishing material to complete the exterior cladding in whatever material and aesthetic suits the installation.

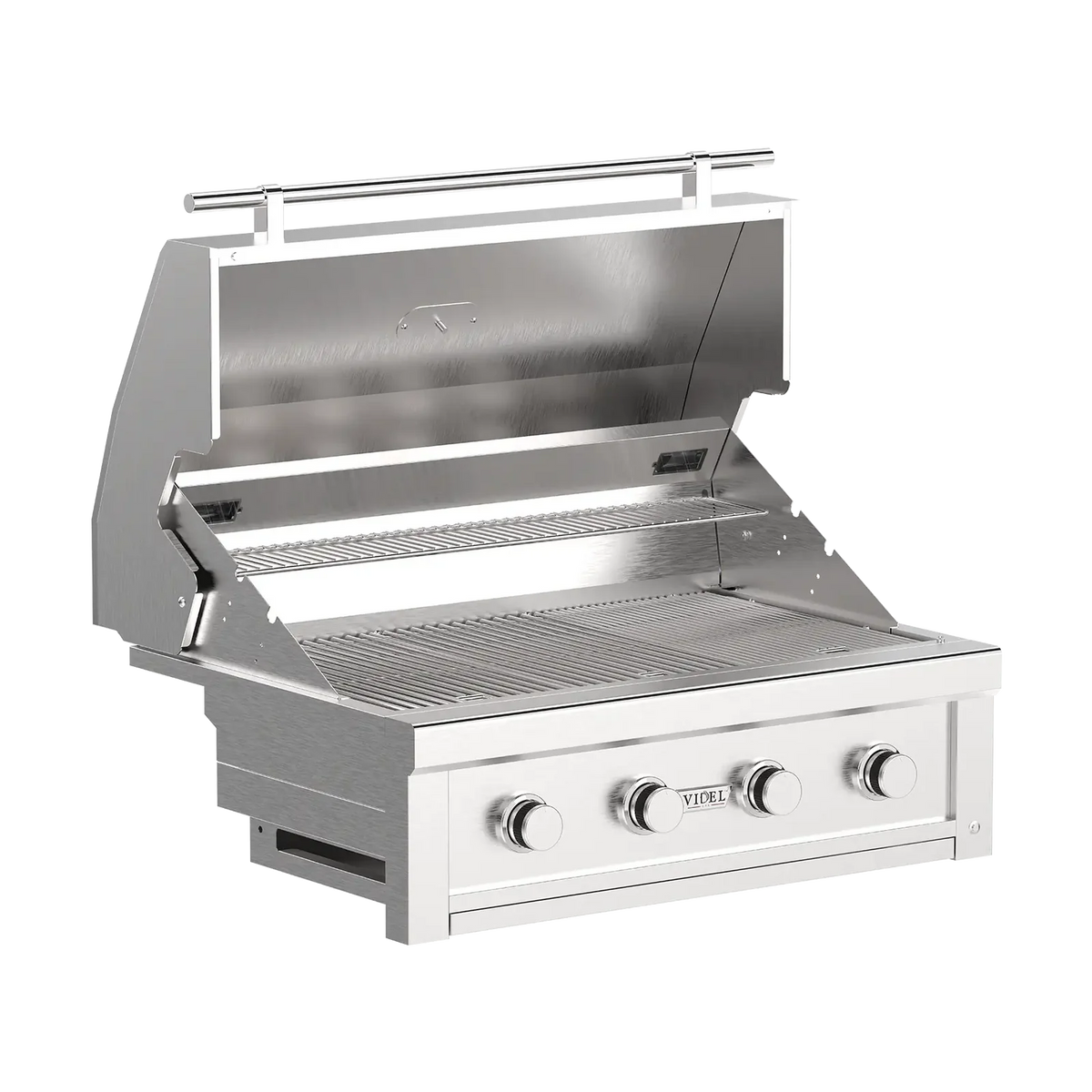

The Gran Fuego 36 is a 4-burner, 60,000 BTU built-in grill with cast stainless steel burners, 304 stainless steel construction, and Videl's HeatWave Chamber -- a double-wall hood design that traps and circulates heat inside the cook chamber for more even temperature across the grates. The CoolTouch knobs use silicone inserts to stay cool to the touch during cooking. The ignition system is electronic valve ignition -- a spark fires at the burner from the knob without a separate lighter. The grill ships configured for natural gas with a convertible regulator and LP conversion orifices included, so it can be run on either fuel without additional parts. The grill is certified to ANSI Z21.58-2022 / CSA STD 1.6-2022.



The Gran Fuego 36 includes an adjustable warming rack, two grill lights, a full-width grease tray, and a built-in thermometer as standard features. The rotisserie system (electric motor, spit rod, and prong forks) is listed in the grill's parts components. Cooking grates, flame tamers, and flavor bars are all 4-piece sets matched to the 4-burner configuration.



Backyard Prime Living is a certified authorized reseller of Videl USA. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• 72-Inch Combined Island Width -- 48-inch KD island section plus 24-inch KD island section combine for a 72-inch wide outdoor kitchen footprint. 36 inches tall, 32 inches deep.
• Knock-Down (KD) Assembly -- Island sections ship flat-packed and assemble on site without cutting or fabrication. Designed for fast, straightforward field assembly.
• Customer-Finished Exterior -- Frame accepts cement board and finishing material of the customer's choice. Videl does not supply the cladding; finishing is done by the installer.
• Gran Fuego 36 Flagship Grill (VG-4B36) -- 4-burner, 60,000 BTU built-in grill. 304 stainless steel construction throughout.
• Cast Stainless Steel Burners -- Four cast stainless steel burners, 15,000 BTU each. Lifetime warranty.
• HeatWave Chamber -- Double-wall hood design traps and circulates heat inside the cook chamber for even temperature across the grates.
• CoolTouch Knobs -- Silicone-insert knobs stay cool to the touch during cooking.
• Electronic Valve Ignition -- Spark fires at the burner directly from the knob. No separate lighter required. Long-neck lighter port also provided as a backup lighting method.
• Natural Gas / LP Convertible -- Ships configured for natural gas. Convertible regulator and LP orifice set included; converts to liquid propane without additional parts.
• Adjustable Warming Rack and Two Grill Lights -- Standard features on the Gran Fuego 36.
• Built-In Thermometer and Full-Width Grease Tray -- Hood thermometer for at-a-glance temperature monitoring. Full grease tray beneath the grates.
• ANSI / CSA Certified Grill -- ANSI Z21.58-2022 / CSA STD 1.6-2022.
• 36-Inch Double Door Storage (VG-36DD) -- 36-inch wide, 20.75-inch tall double-door cabinet beneath the grill. Island cutout 33.75"W x 18.5"H x 1.75"D.
• 304 Stainless Steel Throughout -- Island frame, grill, and doors are all 304 stainless steel.
• Two Configurations Available -- Complete BBQ Island or Equipment Only. Contact Backyard Prime Living for configuration details.
• California Prop 65 Warning -- This product can expose you to lead and carbon monoxide, known to the State of California to cause cancer and birth defects or other reproductive harm.




What's Included

VG-PAKG1 INCLUDES:

• Gran Fuego 36 4-burner built-in grill (VG-4B36) -- grill body, 4 cast stainless steel burners, 4 cooking grates, 4 flavor bars, 3 flame tamers, 1 full-width grease tray, 1 adjustable warming rack, 2 grill lights, 1 built-in thermometer, 4 NG orifices, 4 LP orifices, 1 convertible gas regulator (DG-RGUTR), 1 electronic ignition transformer, hood assembly with HeatWave Chamber, CoolTouch knobs, anti-rotation handle and lock
• 36-inch double door storage cabinet (VG-36DD)
• 48-inch knock-down (KD) island section
• 24-inch knock-down (KD) island section

NOT INCLUDED:

• Cement board, cladding, or exterior finishing material (customer-supplied and installed)
• Countertop material (customer-supplied)
• Gas supply line, LP tank, or connection hardware
• Certified gas technician installation (required; all gas connections must be made by a licensed professional)
• Outdoor refrigerator, side burner, or other accessories (sold separately)
• Cover (contact Backyard Prime Living for availability)



Specifications

Manufacturer: Videl USA (videlusa.com)
Package Name: Grill Signature Collection 1 -- KD BBQ Island
SKU: VG-PAKG1
Product Type: KD (knock-down) outdoor BBQ island package
Use: Outdoor

ISLAND FRAME:
Combined Width: 72 in (48-inch section + 24-inch section)
Height: 36 in
Depth: 32 in
Material: 304 Stainless Steel
Assembly: Knock-down (KD) flat-pack; assembles on site
Exterior Finishing: Customer-supplied cement board and finish material

GRILL (GRAN FUEGO 36 -- VG-4B36):
Burner Count: 4
BTU Per Burner: 15,000
Total BTU: 60,000
Burner Material: Cast stainless steel
Construction: 304 Stainless Steel
Hood: Double-wall HeatWave Chamber
Knobs: CoolTouch silicone-insert
Ignition: Electronic valve ignition (spark from knob); long-neck lighter backup port
Fuel: Natural gas or LP (ships NG; convertible regulator and LP orifice set included)
NG Inlet Pressure: 7" W.C. nominal (3.5" min, 14" max); regulator set to 4.0" W.C.
LP Inlet Pressure: 11" W.C. nominal (8" min, 14" max); regulator set to 11" W.C.
Orifice Size: 1.07 mm (LP) / 1.70 mm (NG)
Electrical: 120V, 60Hz, under 1 amp (ignition transformer)
Overall Grill Dimensions: 22"H x 36"W x 26.75"D (from spec sheet)
Island Cutout (grill): 10"H x 32.5"W x 22"D (from spec sheet)
Cooking Area: Not published -- contact Backyard Prime Living for cooking surface area
Cooking Grates: 4
Flame Tamers: 3
Flavor Bars: 4
Warming Rack: 1 adjustable
Grease Tray: Full width
Grill Lights: 2
Thermometer: Built-in, hood-mounted
Certification: ANSI Z21.58-2022 / CSA STD 1.6-2022
Regulator: Convertible gas regulator (DG-RGUTR), included

DOUBLE DOOR STORAGE (VG-36DD):
Overall Dimensions: 20.75"H x 36"W x 2.75"D
Island Cutout: 18.5"H x 33.75"W x 1.75"D

WEIGHT: Not published -- contact Backyard Prime Living for shipping weight

GRILL WARRANTY (GRAN FUEGO 36):
Lifetime: Cast stainless steel burners
2 years: Fire box, hood, handle, bezel, grates, flavor bars, drip pan, rotisserie burner, transformer, warming rack, flame tamer
1 year: Gas valve, knob, light
Full Warranty Terms: videlusa.com (contact Videl USA at (909) 460-5579 for warranty documentation)



Manuals / Downloads

36" Grill Spec Sheet
