Videl Grill Signature Collection 2



Description

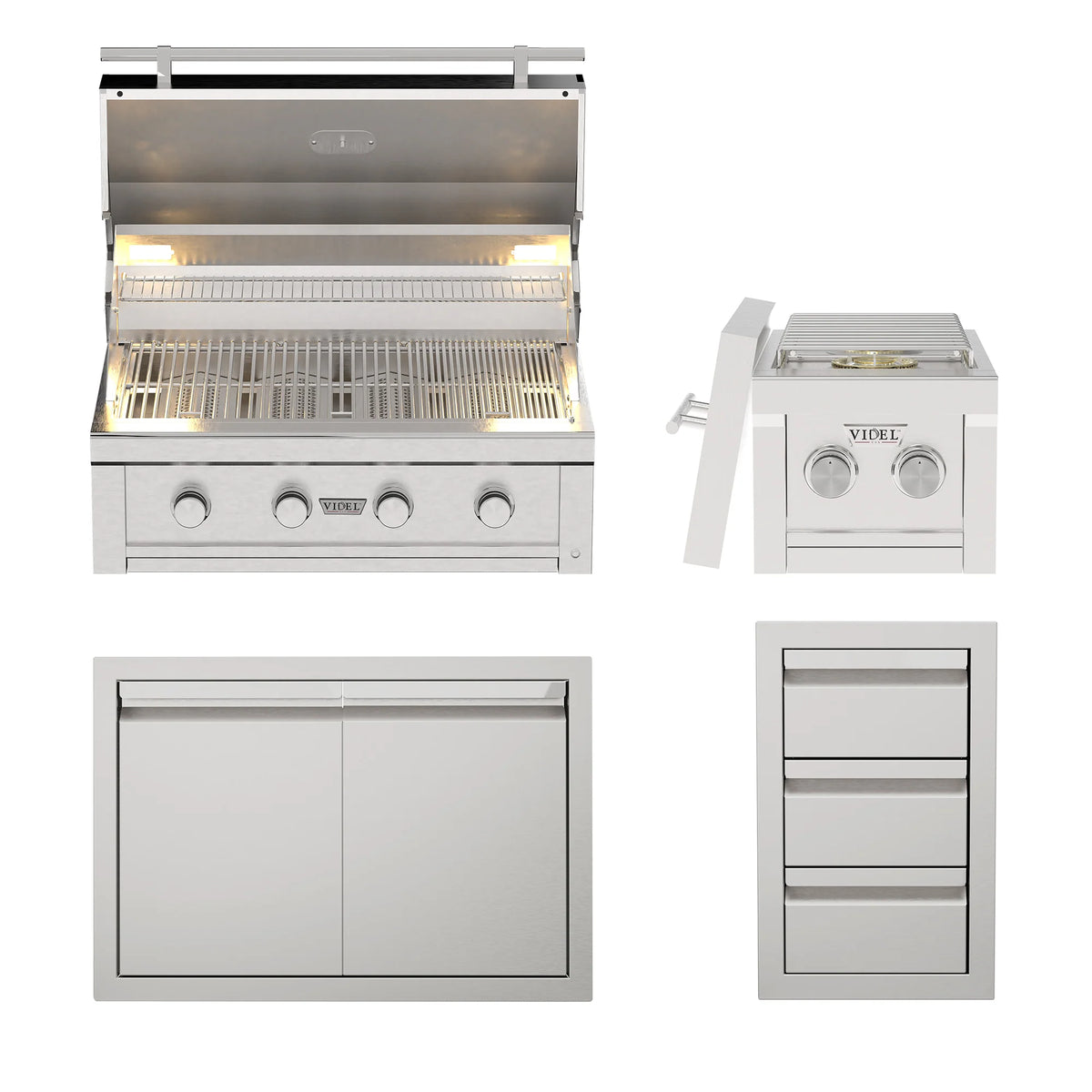

The Videl Grill Signature Collection 2 Complete BBQ Island is a 72-inch knock-down outdoor kitchen package that combines the Gran Fuego 36 flagship grill with a Fuego Vivo Double Side Burner, 36-inch double doors, a triple access drawer cabinet, and two knock-down island sections in one complete setup. The six-component package assembles in knock-down format: all sections ship flat-packed and go together on site without cutting or fabrication. Once the frame is assembled, customers add cement board and exterior finishing material of their choice to complete the cladding. The island is 304 stainless steel throughout and spans 72 inches wide, 36 inches tall, and 32 inches deep.



The Gran Fuego 36 (VG-4B36) is a 4-burner, 60,000 BTU built-in grill certified to ANSI Z21.58-2022 / CSA STD 1.6-2022. Its cast stainless steel burners output 15,000 BTU each. The HeatWave Chamber is a double-wall hood design that traps and circulates heat inside the cook chamber for even temperature distribution across the grates. CoolTouch silicone-insert knobs stay cool during cooking. Electronic valve ignition fires directly from the knob; a long-neck lighter port is provided as a manual backup. The grill ships configured for natural gas with a convertible regulator and LP conversion orifices included. Standard features include an adjustable warming rack, two grill lights, a full-width grease tray, and a built-in hood thermometer.



The Fuego Vivo Double Side Burner (DG-DSB) adds two independent 304 stainless steel burners for a combined 34,000 BTU of dedicated side cooking capacity. CoolTouch knobs, a stainless steel cooking grate with 9mm steel rods, dual burner rings, and an easy-access grease tray are all standard. The side burner ships configured for natural gas with an LP conversion kit included, and carries both ANSI Z21.58-2022 / CSA STD 1.6-2022 and LC certification. Made in the USA.



The 36-inch double doors and triple access drawers provide two separate storage zones across the 72-inch island. The double doors give access to the bay beneath the grill. The triple access drawers organize tools and accessories in individual drawers within a dedicated 13-inch wide cabinet.



Backyard Prime Living is a certified authorized reseller of Videl USA. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• 72-Inch Combined Island Width -- 48-inch and 24-inch KD island sections combine for a 72-inch wide outdoor kitchen footprint. 36 inches tall, 32 inches deep.
• Knock-Down (KD) Assembly -- Island sections ship flat-packed and assemble on site without cutting or fabrication.
• Customer-Finished Exterior -- Frame accepts cement board and finishing material of the customer's choice. Videl does not supply the cladding; finishing is done by the installer.
• Gran Fuego 36 Flagship Grill (VG-4B36) -- 4-burner, 60,000 BTU built-in grill. 304 stainless steel construction throughout. Grill overall: 22"H x 36"W x 26.75"D. Island cutout: 10"H x 32.5"W x 22"D.
• Cast Stainless Steel Burners (Gran Fuego 36) -- Four cast stainless steel burners, 15,000 BTU each. Lifetime warranty on burners.
• HeatWave Chamber -- Double-wall hood design traps and circulates heat inside the cook chamber for even temperature across the grates.
• CoolTouch Knobs -- Silicone-insert knobs stay cool to the touch during cooking.
• Electronic Valve Ignition (Gran Fuego 36) -- Spark fires at the burner directly from the knob. Long-neck lighter backup port also provided.
• Gran Fuego 36 Natural Gas / LP Convertible -- Ships NG; convertible regulator and LP orifice set included.
• Adjustable Warming Rack and Two Grill Lights -- Standard features on the Gran Fuego 36.
• Built-In Thermometer and Full-Width Grease Tray -- Hood thermometer and full-width grease tray standard on the Gran Fuego 36.
• Gran Fuego 36 Certified -- ANSI Z21.58-2022 / CSA STD 1.6-2022.
• Fuego Vivo Double Side Burner (DG-DSB) -- Two independent 304 stainless steel burners, 34,000 BTU total. CoolTouch knobs. Stainless steel cooking grate with 9mm steel rods. Dual burner rings. Easy-access grease tray. 217 sq. in. cooking area. Side burner overall: 10-3/4"H x 13"W x 21"D. Island cutout: 7-1/2"H x 12-1/2"W x 20-1/2"D. Made in USA.
• Side Burner Natural Gas / LP Convertible -- Ships NG; LP conversion kit included.
• Side Burner Certified -- ANSI Z21.58-2022 / CSA STD 1.6-2022 and LC certified.
• 36-Inch Double Door Storage (VG-36DD) -- 36-inch wide double-door storage cabinet. Overall: 20.75"H x 36"W x 2.75"D. Island cutout: 18.5"H x 33.75"W x 1.75"D.
• Triple Access Drawers -- Dedicated drawer storage cabinet, 13 inches wide. Overall: 20-3/4"H x 13"W x 20-3/4"D. Cutout not published -- contact Backyard Prime Living for installation details.
• 304 Stainless Steel Throughout -- Island frame, grill, side burner, doors, and drawers are all 304 stainless steel.
• California Prop 65 Warning -- This product can expose you to lead and carbon monoxide, known to the State of California to cause cancer and birth defects or other reproductive harm.




What's Included

VG-PAKG2 COMPLETE BBQ ISLAND INCLUDES:

• Gran Fuego 36 4-burner built-in grill (VG-4B36) -- grill body, 4 cast stainless steel burners, 4 cooking grates, 4 flavor bars, 3 flame tamers, 1 full-width grease tray, 1 adjustable warming rack, 2 grill lights, 1 built-in thermometer, 4 NG orifices, 4 LP orifices, 1 convertible gas regulator (DG-RGUTR), 1 electronic ignition transformer, hood assembly with HeatWave Chamber, CoolTouch knobs, anti-rotation handle and lock
• Fuego Vivo Double Side Burner (DG-DSB) -- side burner body, 2 cooking grates, 2 burner rings, 2 burners, 2 bezels, 2 CoolTouch knobs, 2 valves, 2 NG orifices, 2 LP orifices, 1 NG/LP regulator (DG-RGUTR), 1 flex gas hose
• 36-inch double door storage cabinet (VG-36DD)
• Triple access drawers
• 48-inch knock-down (KD) island section
• 24-inch knock-down (KD) island section

NOT INCLUDED:

• Cement board, cladding, or exterior finishing material (customer-supplied and installed)
• Countertop material (customer-supplied)
• Gas supply line, LP tank, or connection hardware
• Certified gas technician installation (required; all gas connections must be made by a licensed professional)
• Outdoor refrigerator or other accessories (sold separately)
• Cover (contact Backyard Prime Living for availability)



Specifications

Manufacturer: Videl USA (videlusa.com)
Package Name: Grill Signature Collection 2 -- Complete BBQ Island
SKU: VG-PAKG2
Product Type: KD (knock-down) outdoor BBQ island package
Configuration: Complete BBQ Island
Use: Outdoor

ISLAND FRAME:
Combined Width: 72 in (48-inch section + 24-inch section)
Height: 36 in
Depth: 32 in
Material: 304 Stainless Steel
Assembly: Knock-down (KD) flat-pack; assembles on site
Exterior Finishing: Customer-supplied cement board and finish material

GRILL (GRAN FUEGO 36 -- VG-4B36):
Burner Count: 4
BTU Per Burner: 15,000
Total BTU: 60,000
Burner Material: Cast stainless steel
Construction: 304 Stainless Steel
Hood: Double-wall HeatWave Chamber
Knobs: CoolTouch silicone-insert
Ignition: Electronic valve ignition (spark from knob); long-neck lighter backup port
Fuel: Natural gas or LP (ships NG; convertible regulator and LP orifice set included)
NG Inlet Pressure: 7" W.C. nominal (3.5" min, 14" max); regulator set to 4.0" W.C.
LP Inlet Pressure: 11" W.C. nominal (8" min, 14" max); regulator set to 11" W.C.
Orifice Size: 1.07 mm (LP) / 1.70 mm (NG)
Electrical: 120V, 60Hz, under 1 amp (ignition transformer)
Overall Grill Dimensions: 22"H x 36"W x 26.75"D
Island Cutout (grill): 10"H x 32.5"W x 22"D
Cooking Area: Not published -- contact Backyard Prime Living
Cooking Grates: 4
Flame Tamers: 3
Flavor Bars: 4
Warming Rack: 1 adjustable
Grease Tray: Full width
Grill Lights: 2
Thermometer: Built-in, hood-mounted
Certification: ANSI Z21.58-2022 / CSA STD 1.6-2022
Regulator: Convertible gas regulator (DG-RGUTR), included

DOUBLE SIDE BURNER (FUEGO VIVO -- DG-DSB):
Model: DG-DSB (Fuego Vivo Double Side Burner)
Burner Count: 2
Total BTU: 34,000
Burner Material: Stainless steel
Cooking Grate: Stainless steel, 9mm rods
Construction: 304 Stainless Steel
Knobs: CoolTouch
Ignition: Electronic ignition; manual backup
Fuel: Natural gas or LP (ships NG; LP conversion kit included)
NG Supply Pressure: Min. 3.5" W.C. / Nominal 7" W.C. / Max 14" W.C.
LP Supply Pressure: Min. 8" W.C. / Nominal 11" W.C. / Max 14" W.C.
Overall Dimensions: 10-3/4"H x 13"W x 21"D
Island Cutout: 7-1/2"H x 12-1/2"W x 20-1/2"D
Cooking Area: 217 sq. in.
Origin: Made in USA
Certification: ANSI Z21.58-2022 / CSA STD 1.6-2022; LC certified

DOUBLE DOOR STORAGE (VG-36DD):
Overall Dimensions: 20.75"H x 36"W x 2.75"D
Island Cutout: 18.5"H x 33.75"W x 1.75"D

TRIPLE ACCESS DRAWERS:
Overall Dimensions: 20-3/4"H x 13"W x 20-3/4"D (1" foot reveal)
Island Cutout: Not published -- contact Backyard Prime Living for installation details

WEIGHT: Not published -- contact Backyard Prime Living for shipping weight by component

GRILL WARRANTY (GRAN FUEGO 36 -- VG-4B36):
Lifetime: Cast stainless steel burners
2 years: Fire box, hood, handle, bezel, grates, flavor bars, drip pan, rotisserie burner, transformer, warming rack, flame tamer
1 year: Gas valve, knob, light

SIDE BURNER WARRANTY (FUEGO VIVO -- DG-DSB):
2 years: Burner, regulator, grate, bezel, fire box (defects in materials and workmanship)
1 year: Gas valve, knob, cover
Exclusions: Labor; commercial or rental use; damage from neglect, misuse, or improper installation; rust/corrosion/oxidation unless the part is inoperable
Warranty service: (909) 460-5579 or support@videlgrills.com | Monday-Friday 7:00 am - 5:00 pm PST; customer pays shipping for warranty parts

Full Warranty Terms: videlusa.com (contact Videl USA at (909) 460-5579 for warranty documentation)



Manuals / Downloads

36" Grill Spec Sheet
