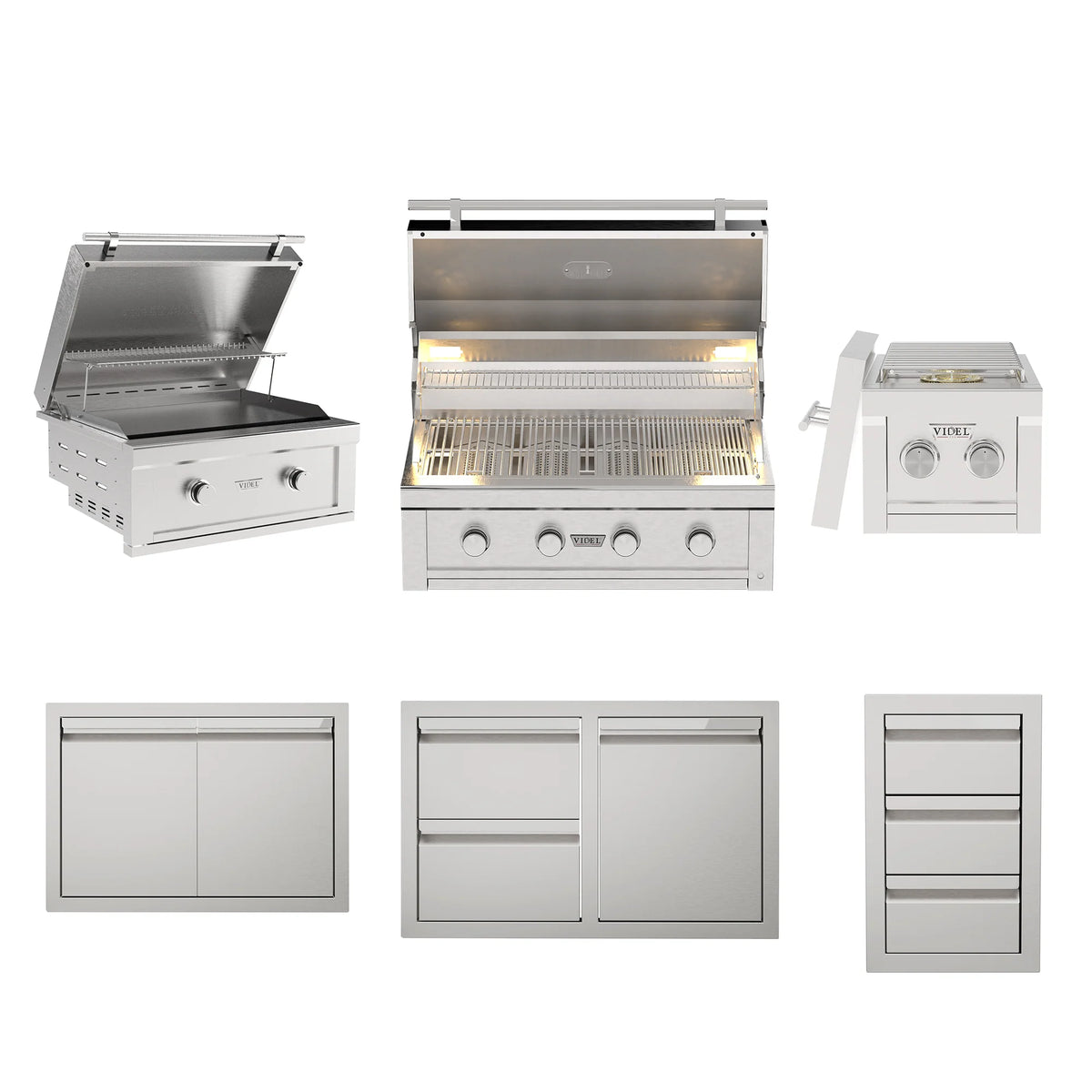

Videl Grill Signature Collection 4



Description

The Videl Grill Signature Collection 4 Complete BBQ Island is a 132-inch (11-foot) knock-down outdoor kitchen package -- the most expansive configuration in the Signature Collection line. The package combines the Gran Fuego 36 flagship grill, the Gran Plancha 30 flat-top griddle, a Fuego I Double Side Burner, 30-inch double doors, a 36-inch combo doors and drawers cabinet, and a triple access drawer cabinet across four knock-down island sections (48-inch, 36-inch, and two 24-inch) that assemble into the full 11-foot frame.



The island assembles in knock-down format: all four KD sections arrive flat-packed and go together on site without cutting or fabrication. Once assembled, customers add cement board and exterior finishing material of their choice to complete the cladding. The island is 304 stainless steel throughout, 36 inches tall and 32 inches deep across the full 132-inch run.



The Gran Fuego 36 (VG-4B36) is a 4-burner, 60,000 BTU built-in grill certified to ANSI Z21.58-2022 / CSA STD 1.6-2022. Its cast stainless steel burners output 15,000 BTU each. The HeatWave Chamber is a double-wall hood design that traps and circulates heat inside the cook chamber for even temperature distribution across the grates. CoolTouch silicone-insert knobs stay cool during cooking. Electronic valve ignition fires directly from the knob; a long-neck lighter port is provided as a manual backup. The grill ships configured for natural gas with a convertible regulator and LP conversion orifices included. Standard features include an adjustable warming rack, two grill lights, a full-width grease tray, and a built-in hood thermometer.



The Gran Plancha 30 (VG-G30) is a 2-burner, 36,000 BTU built-in flat-top griddle station. Its two cast stainless steel burners output 18,000 BTU each. The griddle plate is a full-width cooking surface suited to searing, smash burgers, eggs, vegetables, and anything that benefits from direct contact with a large flat cooking surface at high heat. A match holder and carry-over tube light the second burner from the first. The Gran Plancha ships configured for natural gas with an LP conversion kit included. Certified ANSI Z21.58-2022 / CSA STD 1.6-2022.



The Fuego I Double Side Burner (VG-DSB) adds two independent 15,000 BTU burners for a combined 30,000 BTU dedicated side cooking station. Push-and-turn electronic ignition lights each burner from the knob. CoolTouch knobs and an easy-access grease tray are standard. The side burner ships configured for natural gas with an LP conversion kit included. Certified ANSI Z21.58-2022 / CSA STD 1.6-2022.



The 30-inch double doors, 36-inch combo doors and drawers, and triple access drawer cabinet together provide three distinct storage zones across the 11-foot island. The double doors give access to the bay beneath the griddle. The combo doors and drawers unit combines door storage with organized drawer access. The triple access drawers add a dedicated drawer stack for tools, marinades, and accessories.



This is the Complete BBQ Island configuration. This is a made-to-order product. A Videl USA team member will contact you after purchase to confirm configuration details and lead time.



Backyard Prime Living is a certified authorized reseller of Videl USA. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• 132-Inch Combined Island Width -- 48-inch, 36-inch, and two 24-inch KD island sections combine for an 11-foot wide outdoor kitchen footprint. 36 inches tall, 32 inches deep.
• Knock-Down (KD) Assembly -- Island sections ship flat-packed and assemble on site without cutting or fabrication.
• Customer-Finished Exterior -- Frame accepts cement board and finishing material of the customer's choice. Videl does not supply the cladding; finishing is done by the installer.
• Gran Fuego 36 Flagship Grill (VG-4B36) -- 4-burner, 60,000 BTU built-in grill. 304 stainless steel construction throughout. Grill overall: 22"H x 36"W x 26.75"D. Island cutout: 10"H x 32.5"W x 22"D.
• Cast Stainless Steel Burners (Gran Fuego 36) -- Four cast stainless steel burners, 15,000 BTU each. Lifetime warranty on burners.
• HeatWave Chamber -- Double-wall hood design traps and circulates heat inside the cook chamber for even temperature across the grates.
• CoolTouch Knobs -- Silicone-insert knobs stay cool to the touch during cooking.
• Electronic Valve Ignition (Gran Fuego 36) -- Spark fires at the burner directly from the knob. Long-neck lighter backup port also provided.
• Gran Fuego 36 Natural Gas / LP Convertible -- Ships NG; convertible regulator and LP orifice set included.
• Adjustable Warming Rack and Two Grill Lights -- Standard features on the Gran Fuego 36.
• Built-In Thermometer and Full-Width Grease Tray -- Hood thermometer and full-width grease tray standard on the Gran Fuego 36.
• Gran Fuego 36 Certified -- ANSI Z21.58-2022 / CSA STD 1.6-2022.
• Gran Plancha 30 Griddle (VG-G30) -- 2-burner, 36,000 BTU built-in flat-top griddle. Cast stainless steel burners, 18,000 BTU each. Full-width griddle plate for high-heat searing and flat-top cooking. Griddle overall: 16.25"H x 30"W x 28.5"D. Island cutout: 11.5"H x 28.5"W x 24.75"D.
• Gran Plancha Match-Lit Ignition -- Match holder with carry-over tube to second burner. No electricity required.
• Gran Plancha Natural Gas / LP Convertible -- Ships NG; LP conversion kit included. Certified ANSI Z21.58-2022 / CSA STD 1.6-2022.
• Fuego I Double Side Burner (VG-DSB) -- Two independent stainless steel burners, 15,000 BTU each, 30,000 BTU total. Push-and-turn electronic ignition. CoolTouch knobs. Easy-access grease tray. 304 stainless steel construction. Side burner overall: 10.75"H x 13"W x 24.5"D. Island cutout: 7.75"H x 12"W x 20.5"D.
• Side Burner Natural Gas / LP Convertible -- Ships NG; LP conversion kit included. Certified ANSI Z21.58-2022 / CSA STD 1.6-2022.
• 30-Inch Double Door Storage (VG-30DD) -- 30-inch wide double-door storage cabinet. Overall: 20.75"H x 30"W x 2.75"D. Island cutout: 18.5"H x 28"W x 1.75"D.
• 36-Inch Combo Doors and Drawers (VG-33DC) -- Combined door and drawer cabinet. Overall: 20.75"H x 33"W x 20.25"D. Island cutout: 18.25"H x 30.75"W x 19.25"D.
• Triple Access Drawers -- Dedicated drawer storage cabinet, 13 inches wide. Overall: 20-3/4"H x 13"W x 20-3/4"D. Cutout not published -- contact Backyard Prime Living for installation details.
• 304 Stainless Steel Throughout -- Island frame, grill, griddle, side burner, doors, and drawers are all 304 stainless steel.
• California Prop 65 Warning -- This product can expose you to lead and carbon monoxide, known to the State of California to cause cancer and birth defects or other reproductive harm.




What's Included

VG-PAKG4 COMPLETE BBQ ISLAND INCLUDES:

• Gran Fuego 36 4-burner built-in grill (VG-4B36) -- grill body, 4 cast stainless steel burners, 4 cooking grates, 4 flavor bars, 3 flame tamers, 1 full-width grease tray, 1 adjustable warming rack, 2 grill lights, 1 built-in thermometer, 4 NG orifices, 4 LP orifices, 1 convertible gas regulator (DG-RGUTR), 1 electronic ignition transformer, hood assembly with HeatWave Chamber, CoolTouch knobs, anti-rotation handle and lock
• Gran Plancha 30 flat-top griddle (VG-G30) -- griddle body, 2 cast stainless steel burners, griddle plate, grease tray, griddle cover, 2 CoolTouch knobs, 2 burner valves, bezel, match holder, carry-over tube, flue cover, 2 NG orifices, 2 LP orifices, 1 convertible regulator
• Fuego I Double Side Burner (VG-DSB) -- side burner body, 2 cooking grates, 2 burner rings, 2 burners, 2 bezels, 2 CoolTouch knobs, 2 valves, 2 NG orifices, 2 LP orifices, 1 NG/LP regulator, 1 flex gas hose
• 30-inch double door storage cabinet (VG-30DD)
• 36-inch combo doors and drawers cabinet (VG-33DC)
• Triple access drawers
• 48-inch knock-down (KD) island section
• 36-inch knock-down (KD) island section
• 24-inch knock-down (KD) island section
• 24-inch knock-down (KD) island section

NOT INCLUDED:

• Cement board, cladding, or exterior finishing material (customer-supplied and installed)
• Countertop material (customer-supplied)
• Gas supply line, LP tank, or connection hardware
• Certified gas technician installation (required; all gas connections must be made by a licensed professional)
• Outdoor refrigerator or other accessories (sold separately)
• Cover (contact Backyard Prime Living for availability)



Specifications

Manufacturer: Videl USA (videlusa.com)
Package Name: Grill Signature Collection 4 -- Complete BBQ Island
SKU: VG-PAKG4
Product Type: KD (knock-down) outdoor BBQ island package
Configuration: Complete BBQ Island
Use: Outdoor

ISLAND FRAME:
Combined Width: 132 in (48-inch section + 36-inch section + 24-inch section + 24-inch section)
Height: 36 in
Depth: 32 in
Material: 304 Stainless Steel
Assembly: Knock-down (KD) flat-pack; assembles on site
Exterior Finishing: Customer-supplied cement board and finish material

GRILL (GRAN FUEGO 36 -- VG-4B36):
Burner Count: 4
BTU Per Burner: 15,000
Total BTU: 60,000
Burner Material: Cast stainless steel
Construction: 304 Stainless Steel
Hood: Double-wall HeatWave Chamber
Knobs: CoolTouch silicone-insert
Ignition: Electronic valve ignition (spark from knob); long-neck lighter backup port
Fuel: Natural gas or LP (ships NG; convertible regulator and LP orifice set included)
NG Inlet Pressure: 7" W.C. nominal (3.5" min, 14" max); regulator set to 4.0" W.C.
LP Inlet Pressure: 11" W.C. nominal (8" min, 14" max); regulator set to 11" W.C.
Orifice Size: 1.07 mm (LP) / 1.70 mm (NG)
Electrical: 120V, 60Hz, under 1 amp (ignition transformer)
Overall Grill Dimensions: 22"H x 36"W x 26.75"D
Island Cutout (grill): 10"H x 32.5"W x 22"D
Cooking Area: Not published -- contact Backyard Prime Living
Cooking Grates: 4
Flame Tamers: 3
Flavor Bars: 4
Warming Rack: 1 adjustable
Grease Tray: Full width
Grill Lights: 2
Thermometer: Built-in, hood-mounted
Certification: ANSI Z21.58-2022 / CSA STD 1.6-2022
Regulator: Convertible gas regulator (DG-RGUTR), included

GRIDDLE (GRAN PLANCHA 30 -- VG-G30):
Burner Count: 2
BTU Per Burner: 18,000
Total BTU: 36,000
Burner Material: Cast stainless steel
Construction: 304 Stainless Steel
Ignition: Match-lit (match holder + carry-over tube to second burner); no electricity required
Fuel: Natural gas or LP (ships NG; LP conversion kit included)
NG Inlet Pressure: 7" W.C. nominal (3.5" min, 14" max); regulator set to 4.0" W.C.
LP Inlet Pressure: 11" W.C. nominal (8" min, 14" max)
Orifice Size: 1.30 mm (LP) / 2.08 mm (NG)
Overall Dimensions: 16.25"H x 30"W x 28.5"D
Island Cutout: 11.5"H x 28.5"W x 24.75"D
Certification: ANSI Z21.58-2022 / CSA STD 1.6-2022

DOUBLE SIDE BURNER (FUEGO I -- VG-DSB):
Burner Count: 2
BTU Per Burner: 15,000
Total BTU: 30,000
Ignition: Push-and-turn electronic ignition
Construction: 304 Stainless Steel
Knobs: CoolTouch
Fuel: Natural gas or LP (ships NG; LP conversion kit included)
Overall Dimensions: 10.75"H x 13"W x 24.5"D
Island Cutout: 7.75"H x 12"W x 20.5"D
Certification: ANSI Z21.58-2022 / CSA STD 1.6-2022

DOUBLE DOOR STORAGE (VG-30DD):
Overall Dimensions: 20.75"H x 30"W x 2.75"D
Island Cutout: 18.5"H x 28"W x 1.75"D

COMBO DOORS AND DRAWERS (VG-33DC):
Overall Dimensions: 20.75"H x 33"W x 20.25"D
Island Cutout: 18.25"H x 30.75"W x 19.25"D

TRIPLE ACCESS DRAWERS:
Overall Dimensions: 20-3/4"H x 13"W x 20-3/4"D (1" foot reveal)
Island Cutout: Not published -- contact Backyard Prime Living for installation details

WEIGHT: Not published -- contact Backyard Prime Living for shipping weight by component

GRILL WARRANTY (GRAN FUEGO 36 -- VG-4B36):
Lifetime: Cast stainless steel burners
2 years: Fire box, hood, handle, bezel, grates, flavor bars, drip pan, rotisserie burner, transformer, warming rack, flame tamer
1 year: Gas valve, knob, light

GRIDDLE WARRANTY (GRAN PLANCHA 30 -- VG-G30):
2 years: Drip tray, griddle plate, burner, bezel, regulator, fire box (defects in materials and workmanship)
1 year: Gas valve, knob, cover
Exclusions: Labor; commercial or rental use; damage from neglect, misuse, or improper installation; rust/corrosion/oxidation unless the part is inoperable

SIDE BURNER WARRANTY (VG-DSB):
2 years: Burner, regulator, grate, bezel, fire box (defects in materials and workmanship)
1 year: Gas valve, knob, cover
Exclusions: Labor; commercial or rental use; damage from neglect, misuse, or improper installation; rust/corrosion/oxidation unless the part is inoperable

Warranty service: (909) 460-5579 or support@videlgrills.com | Monday-Friday 7:00 am - 5:00 pm PST; customer pays shipping for warranty parts

Full Warranty Terms: videlusa.com (contact Videl USA at (909) 460-5579 for warranty documentation)



Manuals / Downloads

36" Grill Spec Sheet
