HPC Fire 35-Inch Round Powder Coated Aluminum Spun Gas Fire Bowl

Description

Concrete is heavy, requires curing, and does not move without equipment. The HPC Fire Aluminum Spun Bowl gives the design exactly what concrete-look fire bowls deliver visually -- the modern, matte, elemental look of a concrete or natural wood vessel -- without any of the weight, handling difficulty, or installation constraints that come with the real material. The bowl is spun from 5052 aluminum, the alloy chosen by engineers who need a material that is simultaneously lightweight, corrosion resistant, and structurally precise, and finished with a powder coat in your choice of two finishes: Concrete, which resembles real concrete without any of the hassle, or Walnut, which offers a warmer, wood-toned aesthetic for settings that call for something less industrial. Both finishes are weather-proof powder coat. Neither requires the ongoing maintenance that natural materials demand.

At 35 inches in diameter and 14.5 inches tall, the bowl is sized for a standard seating group, with a rim height and flame position that works at ground level, on a column, or recessed into a table or outdoor kitchen surround. The ventilation is engineered into the structure of the bowl itself -- not an afterthought, but a purpose-built airflow system designed to cool both the internal ignition components and the outside shell of the bowl during operation. The lip pan separates from the bowl easily for simplified access during maintenance, gas connection work, or fire media management without disturbing the bowl's placement. A precut hole at the base routes the gas line through the bottom of the bowl for a clean installation.

Three ignition levels are available. The Match Lit version delivers 65,000 BTU with key valve ignition -- no electronics, no batteries, no power source required. The Electronic Ignition On/Off version delivers 125,000 BTU with the standard burner or 140,000 BTU with the Torpedo burner upgrade, on 120VAC or 24VAC, with one-touch operation and continuous flame sensing. The Electronic Ignition Hi/Lo version delivers the same output with variable flame height control via the HPC Bluetooth app, controllable from a phone or tablet without a separate remote. The Torpedo burner upgrade -- which applies HPC's patented nozzle technology to compress gas flow and introduce oxygen at the nozzle ports for taller, fuller flames -- is available as an upgrade on all three ignition configurations and produces its BTU advantage on the EI configurations. Both fuel types (Natural Gas and Liquid Propane) and both power configurations (120VAC and 24VAC) are available by SKU modifier. Products ship in 1 to 2 business days from HPC's warehouses in Las Vegas, NV and Dayton, OH.

Backyard Prime Living is a certified authorized reseller of HPC Fire. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.

Features

• Spun 5052 Aluminum Construction -- The bowl is precision-spun from 5052 aluminum alloy, chosen for its combination of lightweight handling, corrosion resistance, and structural consistency. 5052 aluminum is the same alloy used in marine and aerospace applications where weight and weather resistance are both requirements.
• Two Powder Coat Finish Options -- Concrete finish: a matte, modern look that resembles real concrete without the weight or maintenance. Walnut finish: a warm, wood-toned aesthetic for settings that want something less industrial. Both are weather-proof powder coat. Both available on all ignition configurations.
• 35 Inch Diameter, 14.5 Inches Tall -- Sized for a standard outdoor seating group of four to six. Suitable for ground-level placement, column installation, or recessed applications in outdoor kitchen surrounds or table tops.
• Engineered Ventilation -- The ventilation is purpose-built into the bowl's structure to cool both the internal electronic ignition components and the outside shell of the bowl during operation. Do not block the precut ventilation openings along the bottom of the bowl.
• Separating Lip Pan -- The lip pan separates from the bowl easily without tools, simplifying access to the burner, gas connections, and fire media during maintenance or seasonal service.
• Precut Base Hole for Gas Line -- A precut hole at the base of the bowl routes the gas supply line through the bottom for a clean, hidden installation.
• Turnkey Complete Fire Feature -- The bowl ships fully assembled and ready to connect to gas. No assembly of the burner system required.

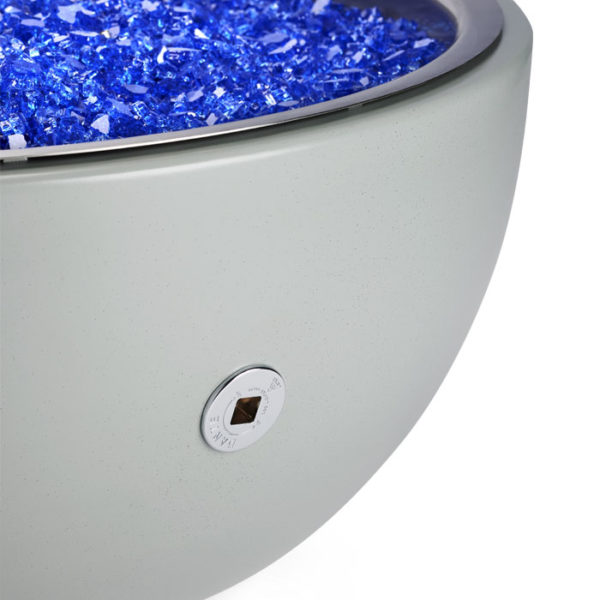

• Match Lit (MLFPK) -- 65,000 BTU regardless of burner type. Key valve ignition. No electricity or batteries required. Simple, reliable, and appropriate for any installation where electronics are not wanted.
• Electronic Ignition On/Off -- 125,000 BTU (Standard burner) / 140,000 BTU (Torpedo burner). 120VAC or 24VAC. One-touch on/off operation with continuous flame sensing and automatic gas shutoff if flame is extinguished.
• Electronic Ignition Hi/Lo with Bluetooth App Control -- 125,000 BTU (Standard burner) / 140,000 BTU (Torpedo burner). 120VAC or 24VAC. Variable flame height control via the HPC Bluetooth app -- controllable from a phone or tablet. No separate remote required.
• Standard Penta Burner or Torpedo Burner Upgrade -- The standard configuration uses a Penta burner producing up to 125,000 BTU on EI configurations. The Torpedo burner upgrade applies HPC's patented nozzle technology for taller, fuller flames and 140,000 BTU on EI configurations. Both are stainless steel. Torpedo upgrade available on all three ignition configurations.
• Available in Natural Gas or Liquid Propane -- Change "NG" to "LP" in the SKU for liquid propane. Both fuel types available on all configurations.
• Available in 120VAC or 24VAC -- Change "120VAC" to "24VAC" in the SKU for 24-volt applications. Both power configurations available on EI models.
• Fire Rock and Fire Glass Included -- 2 bags of fire rock and 90 lbs of fire glass ship with all configurations. Fire rock goes on the burner first; fire glass covers the rock. Do not cover burner orifices.
• Ships in 1 to 2 Business Days -- HPC ships from warehouses in Las Vegas, NV and Dayton, OH.
• 1-Year Warranty on Aluminum Bowl -- The aluminum bowl carries a 1-year warranty for both residential and commercial applications.
• Lifetime Warranty on Stainless Steel Burner and Pan -- Lifetime for both residential and commercial use.
• 3-Year Warranty on Electronics (Residential) / 1-Year (Commercial) -- Electronics warranted 3 years residential, 1 year commercial.



What's Included

ALL CONFIGURATIONS (MLFPK, EI ON/OFF, EI HI/LO -- CONCRETE AND WALNUT):

• 35 Inch Round Aluminum Spun Fire Bowl in selected finish (Concrete or Walnut powder coat)
• Fully assembled CSA-certified fire pit insert (pre-installed in bowl)
• Standard Penta Burner OR Torpedo Penta Burner (based on selected burner option)
• Lip pan (separates from bowl for easy maintenance access)
• 2 bags fire rock media
• 90 lbs fire glass media - Instructions

MLFPK (Match Lit) ALSO INCLUDES:

• Key valve and chrome key

EI ON/OFF AND EI HI/LO (Electronic Ignition) ALSO INCLUDE:

• Electronic ignition control system
• 120VAC or 24VAC power connection hardware (per selected power option)
• Bluetooth app connectivity (Hi/Lo configuration only; HPC app downloadable on iOS and Android)

NOT INCLUDED / SOLD SEPARATELY:

• Gas supply line, natural gas stub-out, or LP tank
• AC power wiring (required for EI models; 120VAC or 24VAC; must be installed by a certified electrician)
• LP regulator and connection hose (for LP applications)
• Additional fire rock or fire glass beyond included amounts
• Bowl cover (third-party sizing required for 35-inch round bowl)

INSTALLATION NOTE: Place the bowl on a level surface. Do not block the precut ventilation openings along the bottom ring of the bowl. The gas supply line routes through the precut hole at the base of the bowl. Natural gas minimum supply pressure: 3.5 in W.C., maximum 7.0 in W.C. Liquid propane minimum supply pressure: 8.0 in W.C., maximum 11.0 in W.C. All gas connections must be made by a certified gas technician. All AC electrical connections must be made by a certified electrician. Fire rock must be placed directly on the burner surface first; do not cover burner orifices. Fire glass is placed over and around the fire rock after. For Hi/Lo Bluetooth app control, download the HPC Fire app on iOS or Android and pair via Bluetooth.

Specifications

Manufacturer: HPC Fire (Hearth Products Controls)
Product Name: 35 Inch Round Powder Coated Aluminum Spun Gas Fire Bowl
Product Line: Aluminum Spun Bowl Series
Product Type: Complete fire bowl (turnkey appliance)
Material: Spun 5052 aluminum with powder coat finish
Finish Options: Concrete (matte concrete appearance), Walnut (warm wood-tone appearance)
Certification: CSA Certified (burner insert) -- Outdoor Use Only

DIMENSIONS:
Overall Diameter: 35 in
Overall Height: 14.5 in

CONSTRUCTION:
Bowl Material: Spun 5052 aluminum
Finish: Powder coat (weather-proof; Concrete or Walnut)
Ventilation: Engineered ventilation along bottom ring; cools internal components and outside shell
Gas Line Access: Precut hole at base of bowl
Pan Design: Lip pan separates from bowl for easy maintenance

BURNER OPTIONS:
Standard Penta Burner: Stainless steel Penta burner
Torpedo Penta Burner: Stainless steel Torpedo Penta burner (patented nozzle; taller, fuller flame)

IGNITION CONFIGURATIONS AND BTU OUTPUT:

Ignition Configuration	Standard Burner	Torpedo Burner
Match Lit (MLFPK)	65,000 BTU	65,000 BTU
EI On/Off	125,000 BTU	140,000 BTU
EI Hi/Lo (Bluetooth App)	125,000 BTU	140,000 BTU

GAS SUPPLY PRESSURE:
Natural Gas: Minimum 3.5 in W.C.; Maximum 7.0 in W.C.
Liquid Propane: Minimum 8.0 in W.C.; Maximum 11.0 in W.C.

POWER OPTIONS:
EI Models: 120VAC or 24VAC (select at time of order)
Match Lit: No power required (N/A)

HI/LO BLUETOOTH APP:
Control Method: HPC Fire app (iOS and Android)
Connection: Bluetooth

FIRE MEDIA (INCLUDED):
Fire Rock: 2 bags
Fire Glass: 90 lbs

SHIPPING:
Lead Time: Typically 1 to 2 business days
Warehouses: Las Vegas, NV and Dayton, OH
Method: UPS / FedEx standard; freight for large orders

WARRANTY:
Aluminum Bowl: 1 year (residential and commercial)
Burner and Pan (Stainless Steel): Lifetime (residential and commercial)
Electronics: 3 years (residential) / 1 year (commercial)
Pilot Assembly: 2 years (residential) / 1 year (commercial)
Warranty Page: https://hpcfire.com/warranty-information/

Manuals / Downloads

HPC Aluminum Spun Fire Bowl Spec Sheet
