HPC Fire Mesa 32-Inch Round Hammered Copper Gas Fire Bowl

Description

Copper does something that powder coat and concrete cannot: it changes. The HPC Fire Mesa 32 Inch Round Hammered Copper Gas Fire Bowl arrives with an oil-rubbed, hand-hammered finish that already carries the character of something made with intention -- each copper sheet individually worked by artisans at HPC's facility before being shaped into the tapered bowl form that defines the Mesa. And from that first session onward, the copper continues its work, developing the naturally distressed, aged look that is not a flaw in the material but the point of it. A copper fire bowl does not look like it just came out of a box a year after it is installed. It looks like it has always been there.



The Mesa tapers from a 32-inch top diameter down to a 15-inch base, standing 15 inches tall. The tapered geometry is a design decision with a functional consequence: it positions the flame at a comfortable viewing height for seated guests while keeping the bowl's visual weight low and proportional to the seating group around it. The bowl is deep enough to house the control box of the Electronic Ignition system inside the vessel itself, giving the flexibility to install the Mesa at column level or flush to the ground without exposing hardware above the rim. The side access door allows for maintenance and inspection without disturbing the fire media layout, and spacers are included to provide the minimum 3/4-inch elevation gap required for proper ventilation through the base.



The Mesa is available in two bowl types -- Fire, and Fire and Water. The Fire bowl is the standard configuration, available with Electronic Ignition On/Off or Match Lit ignition, in Natural Gas or Liquid Propane. The Fire and Water bowl adds an integrated water scupper that allows the Mesa to function as a water feature, using a 1-inch FIP fitting for connection to a pool pump. The Fire and Water configuration uses 12VAC power (requiring the HPC/SEBCO 12VAC 100W power supply, sold separately) and is specifically designed for poolside applications where a 12-volt system is the standard.

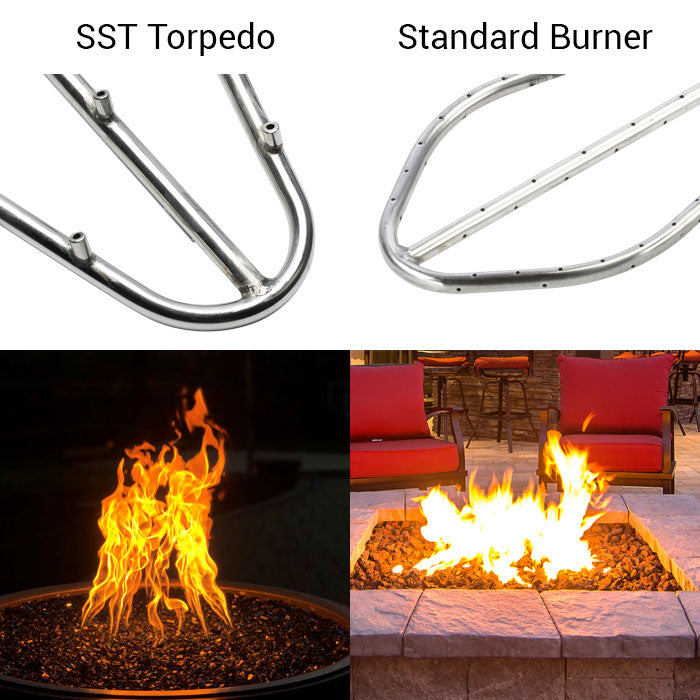

Two burner options are available for each configuration. The standard Penta burner produces 65,000 BTU on the Electronic Ignition configuration. The Torpedo burner upgrade -- which uses HPC's patented nozzle design to compress gas flow and introduce oxygen at the nozzle ports for taller, fuller flames -- produces 90,000 BTU on the Electronic Ignition configuration. Match Lit configurations deliver 65,000 BTU regardless of burner type. Both options ship with the fully assembled insert and 2 bags of fire rock and 30 lbs of fire glass media included. Products ship in 1 to 2 business days from HPC's warehouses in Las Vegas, NV and Dayton, OH.



Backyard Prime Living is a certified authorized reseller of HPC Fire. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Hand Hammered, Oiled Copper Construction -- Each copper sheet is individually hammered by artisans and finished with an oil-rubbed treatment before forming. The hand-hammered finish gives every Mesa a subtly unique surface texture. The oil-rubbed finish will develop a naturally distressed, aged patina over time -- a characteristic of copper, not a defect.
• Made in the USA -- The Mesa copper bowl is crafted in the United States by HPC's artisans. Proudly American-made at Hearth Products Controls' facility.
• Tapered Round Form -- The bowl tapers from a 32-inch top diameter to a 15-inch base diameter and stands 15 inches tall. The tapered geometry positions the flame at the right viewing height for seated guests while keeping the bowl's visual footprint low and proportional.
• Deep Bowl Design -- The Mesa is deep enough to house the Electronic Ignition control box inside the vessel, allowing the bowl to be installed at ground level or column level without hardware visible above the rim.

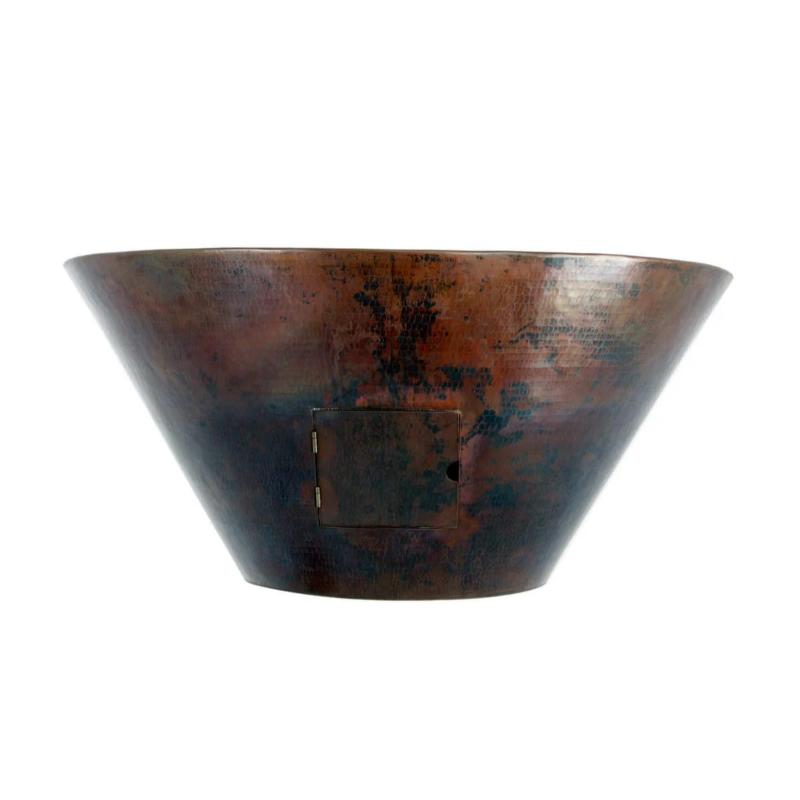

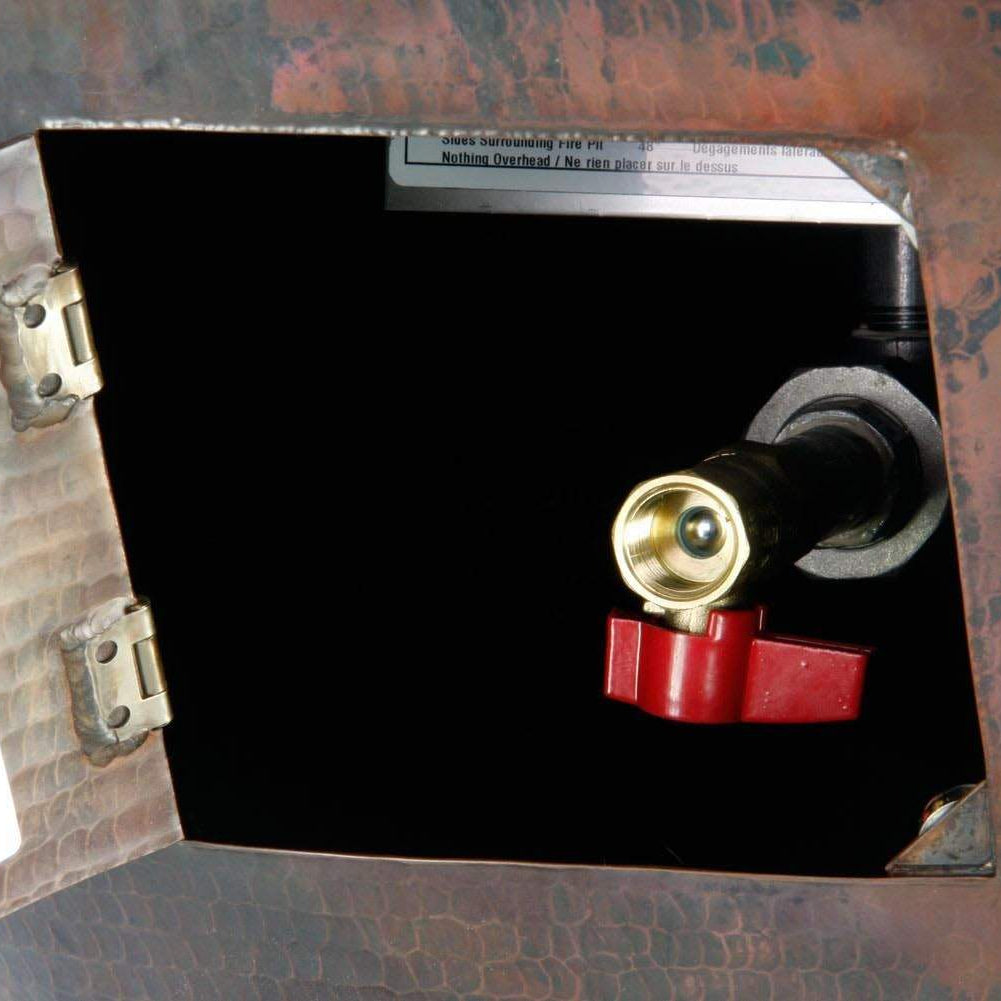

• Side Access Door -- A built-in side access door allows for convenient maintenance, gas connection access, and lighting procedures without disturbing the fire media arrangement.
• Available as Fire Bowl or Fire and Water Bowl -- The Fire bowl is the standard configuration. The Fire and Water bowl adds an integrated single scupper water flow using a 1-inch FIP fitting for pool pump connection -- designed specifically for poolside applications.
• CSA Certified Fire Pit Insert -- The fully assembled insert is CSA certified for both residential and commercial outdoor applications.

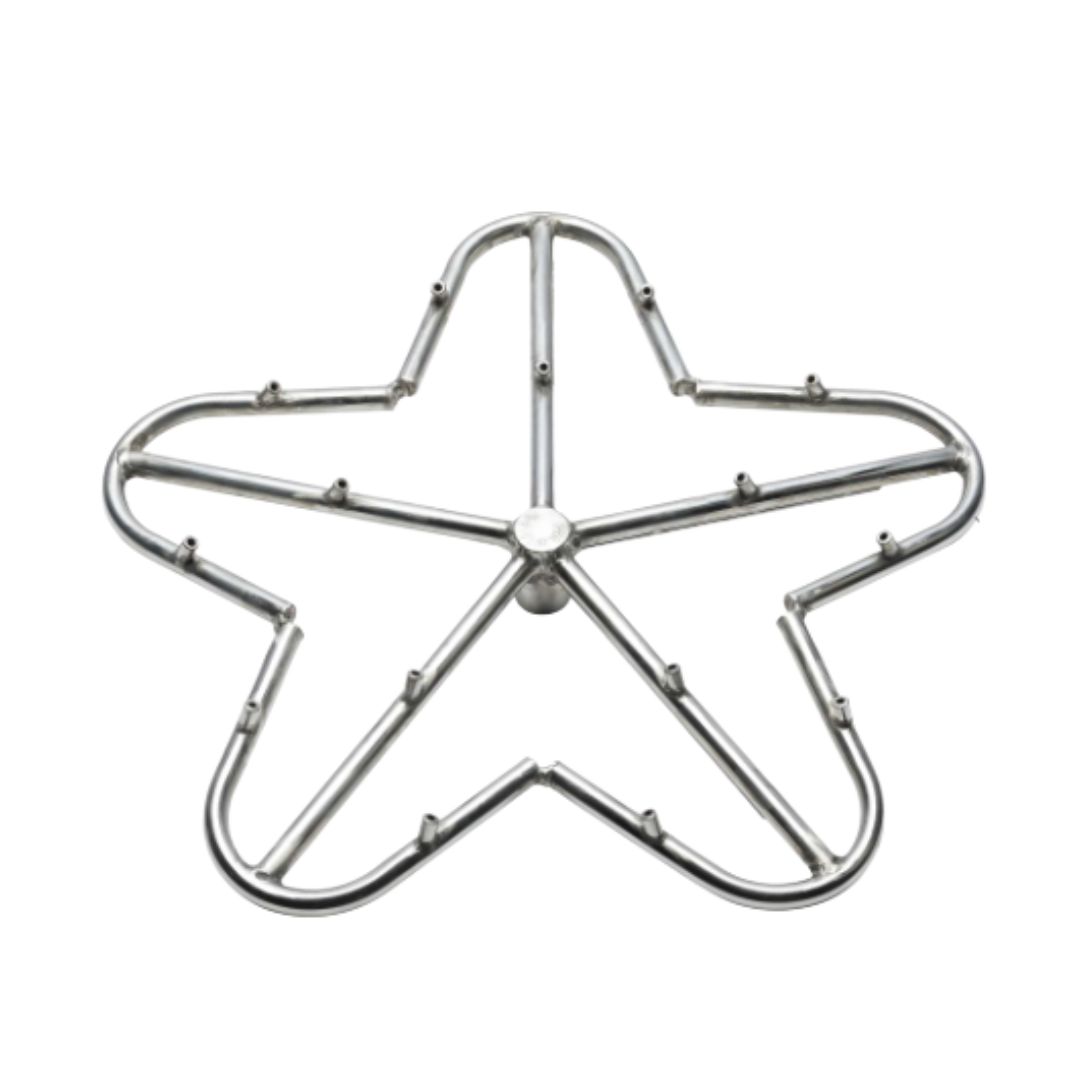

• Standard Penta Burner or Torpedo Burner Upgrade -- The standard configuration uses a 12-inch Penta Burner on an 18-inch flat pan. The Torpedo burner upgrade applies HPC's patented nozzle technology to produce taller, fuller flames at higher BTU output. Both are stainless steel construction.
• Electronic Ignition On/Off -- 65,000 BTU (Standard Penta burner) / 90,000 BTU (Torpedo burner). Fire bowl: 120VAC power. Fire and Water bowl: 12VAC power (HPC/SEBCO 12VAC 100W power supply required, sold separately). One-touch on/off operation with flame sensing.

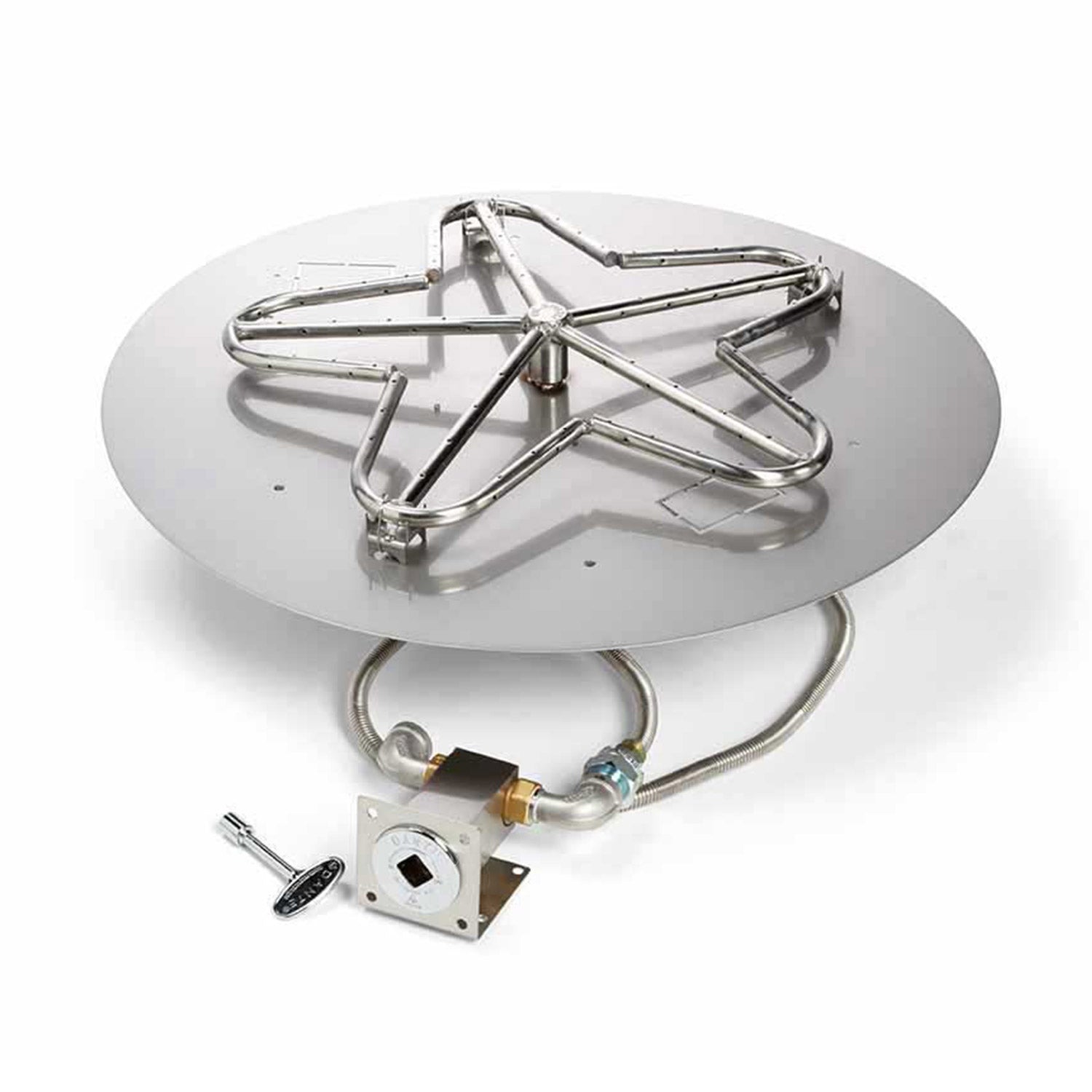

• Match Lit (MLFPK) -- 65,000 BTU regardless of burner type. Key valve ignition. No electricity or batteries required. Simple, reliable, virtually maintenance-free.
• Available in Natural Gas or Liquid Propane -- Change "NG" to "LP" in the SKU for liquid propane applications. Both fuel types available for all configurations.

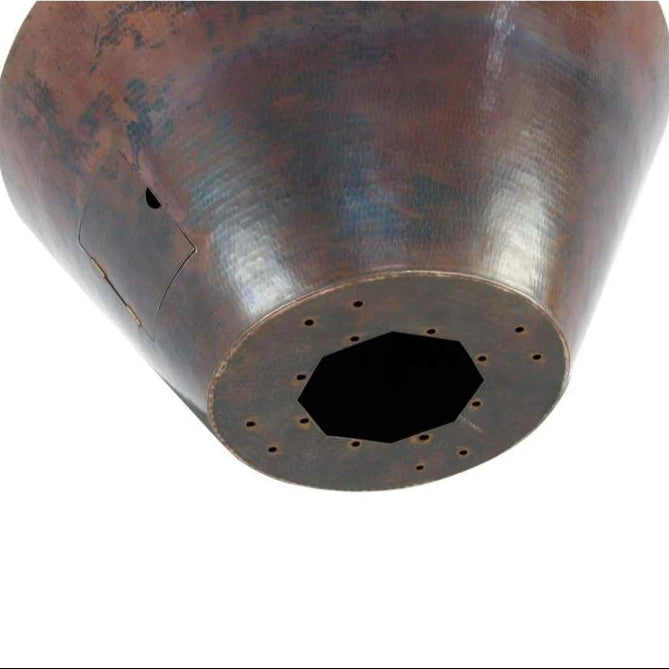

• Spacers Included for Proper Ventilation -- Spacers are provided to elevate the bowl a minimum of 3/4 inch above the mounting surface, allowing airflow through the minimum 6-inch diameter hole required in the base of the bowl. Copper bowls must be raised per the ventilation requirement.
• Fire and Water Bowl -- 12VAC Pool Application Specific -- The Fire and Water (MESA32W) configuration uses 12VAC power and a 1-inch FIP fitting for pool pump connection. Requires the HPC/SEBCO 12VAC 100W power supply (sold separately). Designed for poolside installations.
• Fire Rock and Fire Glass Included -- 2 bags of fire rock and 30 lbs of fire glass ship with all Mesa 32 configurations. Fire rock must be placed on the burner first; fire glass is placed over and around the fire rock. Do not cover burner orifices.
• Optional Copper Bowl Cover Available -- A copper bowl cover (SKU: FPHC-26TEMP/32MESA) fits the Mesa 32. Measures 19 inches in diameter at 8.5 inches tall, weighing 7.5 lbs.
• Ships in 1 to 2 Business Days -- HPC ships from warehouses in Las Vegas, NV and Dayton, OH.
• 3-Year Copper Bowl Warranty (Residential and Commercial) -- The copper bowl carries a 3-year warranty for both residential and commercial applications. This is a distinct warranty class from HPC's metal and aluminum enclosures.
• Lifetime Warranty on Stainless Steel Burner and Pan -- HPC Fire provides a lifetime warranty on the burner and pan for both residential and commercial use.
• 3-Year Warranty on Electronics (Residential) / 1-Year (Commercial) -- Electronics are warranted for 3 years residential and 1 year commercial.
• Authorized Reseller -- Backyard Prime Living is a certified authorized reseller of HPC Fire.



What's Included

ALL MESA 32 CONFIGURATIONS (MLFPK AND EI -- FIRE BOWL):

• Mesa 32 Inch Round Hand Hammered, Oiled Copper Bowl

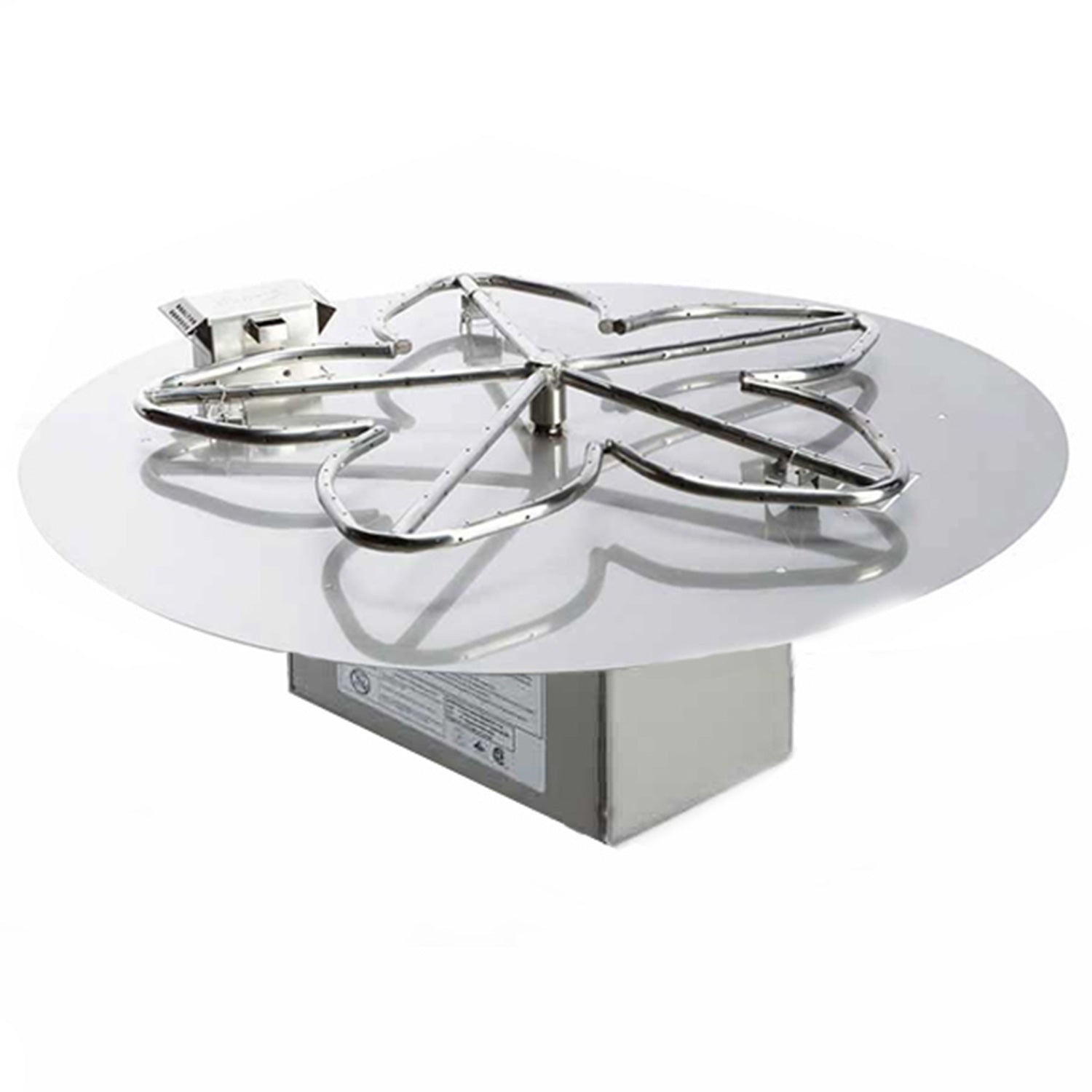

• Fully Assembled CSA Certified Fire Pit Insert (burner, pan, and ignition system pre-assembled, pre-installed)
• 18-inch flat pan with 12-inch Penta Burner (standard configuration) OR Torpedo Penta Burner (Torpedo upgrade)
• Side access door (built into bowl)
• Spacers for proper bowl elevation (minimum 3/4-inch gap required)
• 2 bags fire rock media
• 30 lbs fire glass media - Instructions / burner manufacturer's manual

MLFPK (Match Lit) ALSO INCLUDES:

• Key valve and chrome key

EI (Electronic Ignition On/Off) -- FIRE BOWL (MESA32-EI) ALSO INCLUDES:

• Electronic ignition control box (housed inside bowl)
• 120VAC power cord

EI (Electronic Ignition On/Off) -- FIRE AND WATER BOWL (MESA32W-EI) ALSO INCLUDES:

• Electronic ignition control box (housed inside bowl)
• 12VAC power cord
• Integrated water scupper with 1-inch FIP fitting for pool pump connection

NOT INCLUDED / SOLD SEPARATELY:

• Gas supply line, natural gas stub-out, or LP tank
• AC power wiring (required for EI models; must be installed by a certified electrician)
• HPC/SEBCO 12VAC 100W power supply (required for Fire and Water / MESA32W-EI models -- sold separately)
• LP regulator and connection hose (for LP applications)
• Optional copper bowl cover: FPHC-26TEMP/32MESA (19 in diameter x 8.5 in tall, 7.5 lbs -- sold separately)
• Pool pump (for Fire and Water applications)
• Additional fire rock or fire glass beyond what is included



INSTALLATION NOTE: The Mesa bowl must be placed on a level surface. The bowl must be elevated a minimum of 3/4 inch above the mounting surface using the provided spacers; a minimum 6-inch diameter hole is required in the bottom of the bowl for ventilation. Do not block ventilation openings. For poolside Fire and Water installations, the 1-inch FIP fitting connects to the pool pump return line; a pool professional must complete this connection. The Fire and Water model (MESA32W) requires the HPC/SEBCO 12VAC 100W power supply (sold separately) -- do not use standard 120VAC power supply with the MESA32W model. All gas connections must be made by a certified gas technician. All AC electrical connections must be made by a certified electrician. Natural gas minimum supply pressure: 3.5 in W.C.; maximum 7.0 in W.C. Liquid propane minimum supply pressure: 8.0 in W.C.; maximum 11.0 in W.C.



Specifications

Manufacturer: HPC Fire (Hearth Products Controls)
Model Name: Mesa Series -- 32 Inch Round Hand Hammered, Oiled Copper Gas Fire Bowl
Product Type: Complete copper fire bowl (Fire or Fire and Water)
Construction: Hand-hammered, oil-rubbed copper exterior; 18-inch flat pan with stainless steel burner
Country of Origin: USA (made in the USA by HPC Fire artisans)
Certification: CSA Certified -- Outdoor Use Only, Residential and Commercial

DIMENSIONS:
Top Diameter: 32 in
Base Diameter: 15 in
Overall Height: 15 in

BURNER AND PAN:
Standard Burner: 12-inch Penta Burner on 18-inch flat pan (stainless steel)
Torpedo Burner Upgrade: Torpedo Penta Burner on 18-inch flat pan (patented nozzle design)
Burner Material: 304 Stainless Steel

IGNITION CONFIGURATIONS AND BTU OUTPUT:

Ignition Type	Standard Penta Burner	Torpedo Burner Upgrade
Electronic Ignition On/Off	65,000 BTU	90,000 BTU
Match Lit (MLFPK)	65,000 BTU	65,000 BTU



POWER REQUIREMENTS:
Fire Bowl EI: 120VAC (standard household current)
Fire and Water Bowl EI: 12VAC -- requires HPC/SEBCO 12VAC 100W power supply (sold separately)
Match Lit: No power required

GAS SUPPLY PRESSURE:
Natural Gas: Minimum 3.5 in W.C.; Maximum 7.0 in W.C.
Liquid Propane: Minimum 8.0 in W.C.; Maximum 11.0 in W.C.

VENTILATION:
Bowl Elevation Required: Minimum 3/4 in gap above mounting surface (spacers included)
Base Hole Required: Minimum 6 in diameter hole in bottom of bowl

FIRE MEDIA (INCLUDED):
Fire Rock: 2 bags
Fire Glass: 30 lbs

OPTIONAL ACCESSORY:
Copper Bowl Cover: FPHC-26TEMP/32MESA -- 19 in diameter x 8.5 in tall, 7.5 lbs (sold separately; fits both Mesa 32 and 26-inch Tempe)

SHIPPING:
Lead Time: Typically 1 to 2 business days
Warehouses: Las Vegas, NV and Dayton, OH
Method: LTL Freight

WARRANTY:
Copper Bowl: 3 years (residential) / 3 years (commercial)
Burner and Pan (Stainless Steel): Lifetime (residential and commercial)
Electronics: 3 years (residential) / 1 year (commercial)
Pilot Assembly: 2 years (residential) / 1 year (commercial)
Warranty Page: https://hpcfire.com/warranty-information/



Manuals / Downloads

HPC Fire Mesa 32-Inch Round Hammered Copper Spec Sheet
