HPC Fire Phoenix 47x25-Inch Linear Hammered Copper Gas Fire Pit with H-Burner



Description

There are fire pits that accent an outdoor space and there are fire pits that define it. The HPC Fire Phoenix is the second kind. At 47 inches long by 25 inches wide by 18 inches tall, the Phoenix is a large-format, hand-hammered, oil-rubbed copper fire pit designed around the H-Burner configuration -- the same horizontal bar geometry that HPC uses in its professional rectangular metal enclosures, applied here to a raw copper vessel that carries the weight and presence of a significant custom fire feature rather than a commodity product. HPC describes it plainly: a head-turner, a showstopper. At 175,000 BTU in its full Electronic Ignition configuration, the output matches the description.

The Phoenix is hand-hammered by artisans at HPC Fire, finished with an oil rubbing that enhances the copper's depth and warmth, and shaped into the elongated oval bowl form that makes the Phoenix the appropriate centerpiece for a dining table, a seating group arranged around a long axis, a pool edge, or any installation where the linear flame display is the right design choice. Unlike a round bowl with a Penta burner that radiates in all directions equally, the H-Burner produces a wide, even flame across the full length of the bowl -- a horizontal display rather than a vertical one, more like a living fire in a hearth than a torch in a bowl. The visual effect at the Electronic Ignition settings is a long, low, even sheet of flame that reads beautifully at scale.

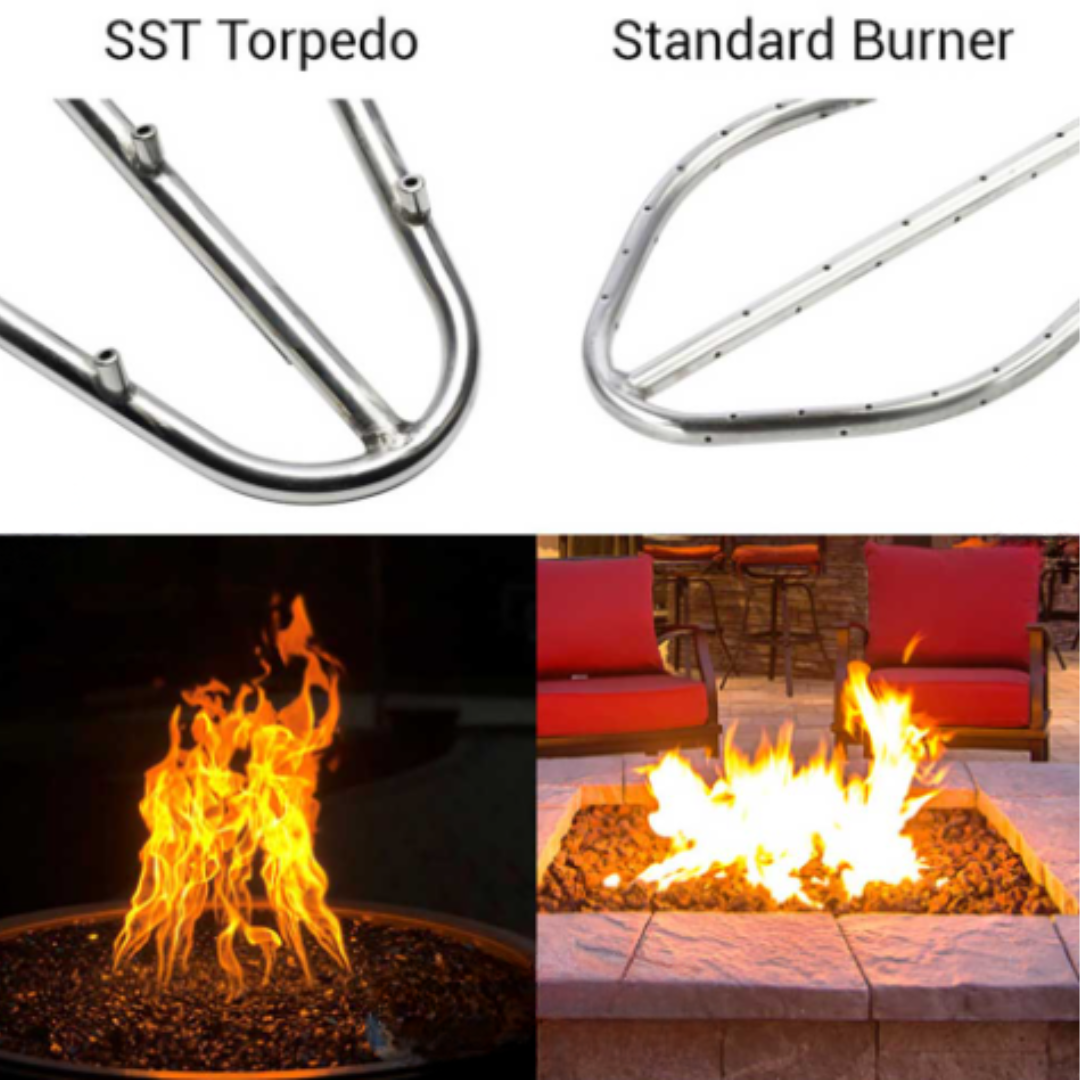

The Phoenix is available with three ignition systems. The Match Lit version (TOR-PHOEN47X25/HBURN-MLFPK) delivers 65,000 BTU via key valve -- the simplest and most reliable configuration, appropriate where a direct gas line is available and no electronics are required. The Push Button Flame Sensing version (TOR-PHOEN47X25/HBURN-FPPK) delivers 150,000 BTU with AA battery-powered ignition and automatic gas shutoff if the flame is extinguished -- no AC power line required. The Electronic Ignition On/Off version (TOR-PHOEN47X25/H-EI-NG/120VAC) delivers the full 175,000 BTU on 120VAC or 24VAC power with continuous flame monitoring. All three configurations include the Torpedo nozzle upgrade on the H-Burner -- the dealer catalog lists the Phoenix exclusively with Torpedo burner SKUs. The H-Burner's wide, even flame across the length of the bowl is further amplified by the Torpedo nozzle design, which compresses gas flow and introduces oxygen at each nozzle port for taller, more dramatic individual flame points distributed across the full width.



Both Natural Gas and Liquid Propane are available on all three ignition configurations. Fire rock (2 bags) and fire glass (60 lbs) are included with all configurations. Products ship in 1 to 2 business days from HPC's warehouses in Las Vegas, NV and Dayton, OH.



Backyard Prime Living is a certified authorized reseller of HPC Fire. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Hand Hammered, Oil Rubbed Copper Construction -- The Phoenix bowl is individually hand-hammered by artisans at HPC Fire and finished with an oil rub that enhances the copper's depth, warmth, and character. The oil-rubbed finish provides an initial warm patina that will continue to develop and deepen with outdoor exposure over time.
• Linear 47 x 25 Inch Format -- The Phoenix is 47 inches long by 25 inches wide and 18 inches tall -- a large-format oval bowl specifically proportioned for linear flame displays along a horizontal axis, suited to dining tables, linear seating arrangements, pool edges, and installations where a long, even flame is the design priority.

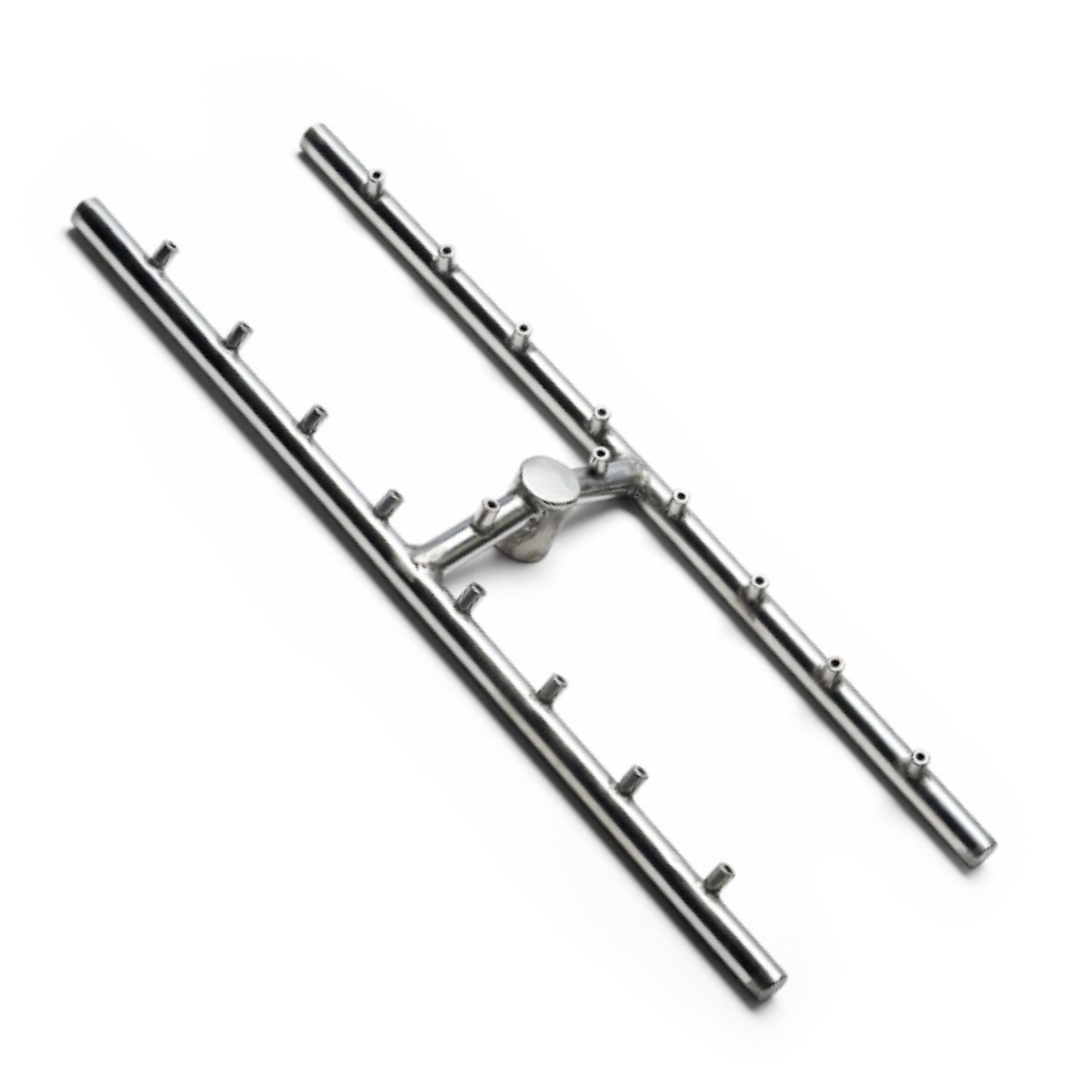

• H-Burner Configuration with Torpedo Nozzle -- The H-Burner produces a wide, even flame across the full length of the bowl -- not a concentrated center flame, but a broad horizontal display. Combined with the Torpedo nozzle upgrade, the burner delivers taller, more dramatic flame points distributed evenly across the entire width of the bowl.
• 175,000 BTU (Electronic Ignition) -- The EI On/Off configuration with the Torpedo H-Burner delivers 175,000 BTU, making the Phoenix one of the highest-output copper fire features in the HPC lineup. Push Button / Flame Sensing delivers 150,000 BTU. Match Lit delivers 65,000 BTU.
• Three Ignition Configurations Available -- Electronic Ignition On/Off (TOR-PHOEN47X25/H-EI), Push Button / Flame Sensing (TOR-PHOEN47X25/HBURN-FPPK), and Match Lit (TOR-PHOEN47X25/HBURN-MLFPK). All three configurations include the Torpedo nozzle H-Burner.
• Match Lit (MLFPK) -- 65,000 BTU. Key valve ignition with adjustable flame height. No electricity or batteries required. Simple, reliable, virtually maintenance-free. Best for installations where no power is available or desired.

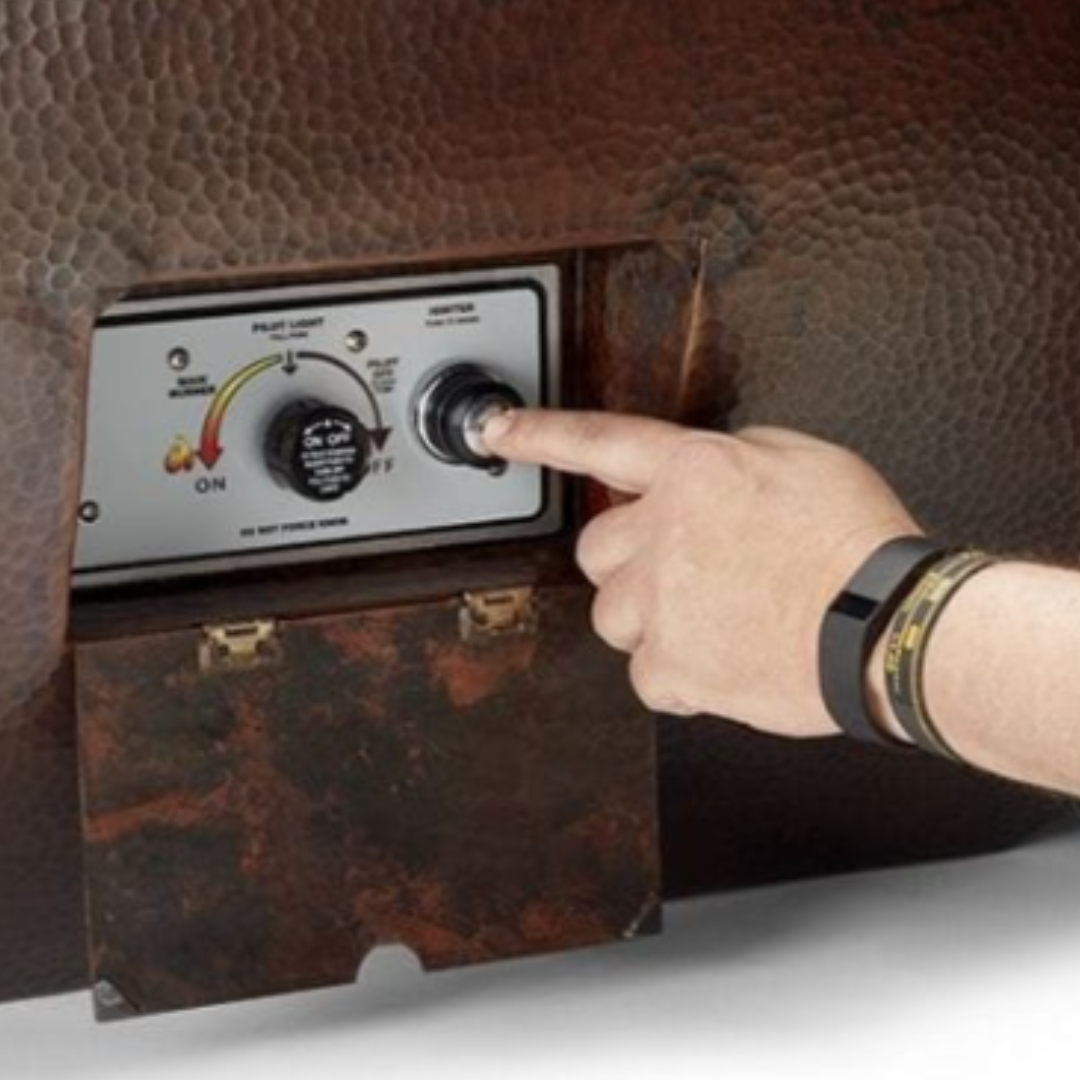

• Push Button / Flame Sensing (FPPK) -- 150,000 BTU. AA battery-powered push button ignition with flame sensing technology. Automatic gas shutoff if flame is extinguished. No AC power line required -- the highest BTU option with no electrical infrastructure.
• Electronic Ignition On/Off (EI) -- 175,000 BTU. 120VAC or 24VAC. One-touch on/off with continuous flame sensing and automatic gas shutoff on flame loss. Includes input flex line.
• CSA Certified Fire Pit Insert -- The fully assembled copper fire pit insert is CSA certified for outdoor use in both residential and commercial applications.
• Available in Natural Gas or Liquid Propane -- Both fuel types available on all three ignition configurations. Specify at time of order.
• Fire Rock and Fire Glass Included -- 2 bags of fire rock and 60 lbs of fire glass are included with all Phoenix configurations. Fire rock installs on the burner first; fire glass is placed over and around the fire rock. Do not cover burner orifices.
• Made in the USA -- The Phoenix copper bowl is hand-hammered by HPC Fire artisans. HPC is headquartered and manufactures in Miamisburg, Ohio.
• Ships in 1 to 2 Business Days -- HPC ships from warehouses in Las Vegas, NV and Dayton, OH.
• Lifetime Warranty on Stainless Steel H-Burner and Pan -- HPC Fire provides a lifetime warranty on the stainless steel burner and pan for both residential and commercial use.
• 3-Year Warranty on Electronics and Gas Valve (Residential) -- Electronics and gas valve are warranted for 3 years residential, 1 year commercial.


What's Included

ALL CONFIGURATIONS (MLFPK, FPPK, EI):

• Phoenix 47 x 25 Inch Hand Hammered, Oil Rubbed Copper Fire Bowl
• Fully assembled CSA-certified fire pit insert (Torpedo H-Burner and pan pre-assembled, pre-installed in bowl)
• 2 bags fire rock media - 60 lbs fire glass media
• Instructions

FPPK (Push Button / Flame Sensing) ALSO INCLUDES:

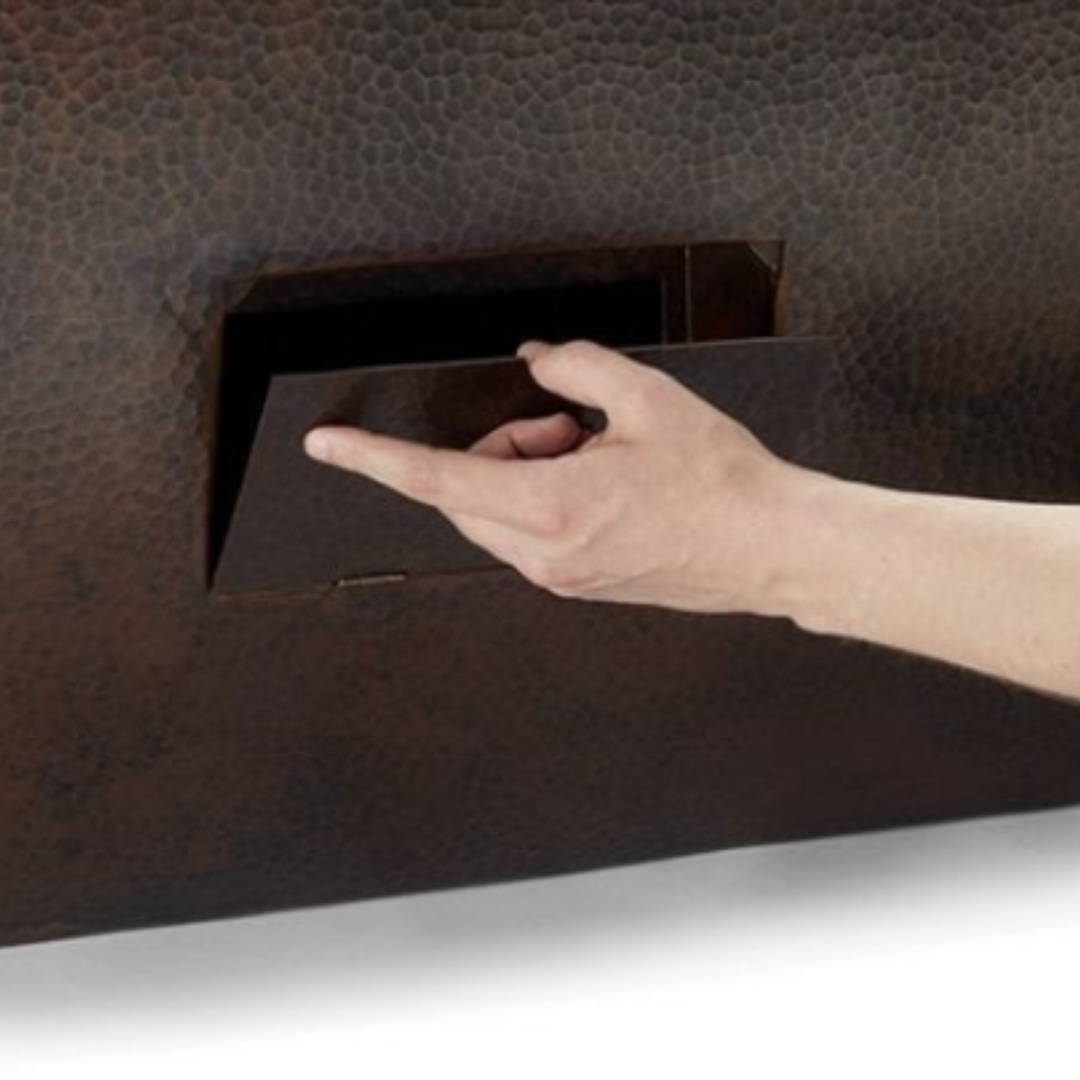

• Mounting sleeve for push button valve

EI (Electronic Ignition On/Off) ALSO INCLUDES:

• Input flex line

NOT INCLUDED / SOLD SEPARATELY:

• Gas supply line, natural gas stub-out, or LP tank
• AC power wiring (required for EI models -- 120VAC or 24VAC; must be installed by a certified electrician)
• AA batteries (required for FPPK models)
• Remote control (EI On/Off does not include a remote; contact HPC for remote or Hi/Lo upgrade availability)
• Cover or protective cover (third-party sizing required for 47 x 25-inch oval bowl)



INSTALLATION NOTE: The bowl must be placed on a level surface with adequate drainage at the installation site. Ventilation must remain unobstructed at all times. A certified gas technician must make all gas connections. A certified electrician must install all AC electrical connections for EI models. Do not cover burner orifices when placing fire rock or fire glass. Fire rock must be placed on the burner surface first; fire glass is placed over and around the fire rock. Gas inlet pressure: Natural Gas minimum 3.5 in WC, maximum 7.0 in WC; Liquid Propane minimum 8.0 in WC, maximum 11.0 in WC. Do not use a burner rated for greater than 125,000 BTU with a standard 20-pound propane tank.



Specifications

Manufacturer: HPC Fire (Hearth Products Controls)
Product Name: Phoenix 47 x 25 Inch Linear Hand Hammered Oiled Copper Gas Fire Pit with H-Burner
Country of Origin: USA (hand-hammered by HPC Fire artisans)
Product Type: Complete copper fire pit -- hand hammered, oil rubbed copper bowl with assembled insert
Certification: CSA Certified -- Outdoor Use Only, Commercial and Residential

DIMENSIONS:
Overall Length: 47 in
Overall Width: 25 in
Overall Height: 18 in

BURNER:
Type: H-Burner with Torpedo Nozzle (all Phoenix configurations include Torpedo burner; no standard burner SKU offered)
Burner Material: 304 Stainless Steel
Flame Pattern: Wide, even horizontal flame across full length of bowl (H-Burner format)

IGNITION CONFIGURATIONS AND BTU OUTPUT:
Electronic Ignition On/Off (EI) -- Torpedo H-Burner:
BTU Output: 175,000 BTU
Power: 120VAC or 24VAC
Operation: On/Off only
Includes: Bowl, fully assembled insert, input flex line, instructions

Push Button / Flame Sensing (FPPK) -- Torpedo H-Burner:
BTU Output: 150,000 BTU
Power: AA batteries (no AC power line required)
Flame Sensing: Automatic gas shutoff if flame is extinguished
Includes: Bowl, fully assembled insert, mounting sleeve, instructions

Match Lit (MLFPK) -- Torpedo H-Burner:
BTU Output: 65,000 BTU
Power: None required
Ignition: Key valve / manual
Flame Control: Adjustable (variable flame height)
Includes: Bowl, fully assembled insert, instructions

GAS SUPPLY PRESSURE:
Natural Gas: Minimum 3.5 in WC; Maximum 7.0 in WC
Liquid Propane: Minimum 8.0 in WC; Maximum 11.0 in WC
Note: Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank. The FPPK (150,000 BTU) and EI (175,000 BTU) configurations require a larger LP tank or permanent NG supply.

FIRE MEDIA (INCLUDED):
Fire Rock: 2 bags
Fire Glass: 60 lbs

SHIPPING:
Lead Time: Typically 1 to 2 business days
Warehouses: Las Vegas, NV and Dayton, OH
Method: UPS / FedEx standard; freight for large orders

WARRANTY:
Burner and Pan (Stainless Steel): Lifetime (residential and commercial)
Copper Bowl: 3 years (residential) / 3 years (commercial) -- verify current warranty terms with HPC; copper bowl warranty class differs from metal enclosure warranty
Electronics and Gas Valve: 3 years (residential) / 1 year (commercial)
Pilot Assembly: 2 years (residential) / 1 year (commercial)
Warranty Page: https://hpcfire.com/warranty-information/



Manuals / Downloads

HPC Fire Phoenix Copper Fire Pit Spec Sheet
