HPC Fire Sedona 40" Square Hammered Copper Fire Bowl



Description

The Sedona is HPC's square hammered copper fire pit, and in the copper fire pit category that shape distinction matters. Round copper bowls read as sculptural objects -- beautiful, organic, placed. Square copper fire pits read as furniture -- they anchor a seating arrangement, define a space's edges, and work with the geometry of the outdoor living room around them in a way that round bowls don't. The Sedona at 40 by 40 inches is the largest square copper fire pit in HPC's lineup, and at that scale it is not a piece you add to a space but one that organizes the space around it.



The exterior is hand-hammered copper with an oil-rubbed finish -- worked by HPC Fire artisans to produce the textured surface that gives each unit its individual character, then finished with an oil treatment that enhances the depth and warmth of the raw copper tone before the natural patina begins developing with outdoor exposure over time. The tapered square profile -- 40 inches at the top, 20 inches at the 20 by 20 inch base -- gives the bowl its visual weight at the rim where it matters and keeps the footprint proportional below. The bowl is deep enough to house the Electronic Ignition control box entirely inside the vessel, which means the Sedona can be installed at ground level or column level without hardware visible above the rim. The key valve on Match Lit configurations can also be mounted inside the bowl for the same reason.



The fire system uses a 25-inch flat pan with an 18-inch Penta burner. HPC engineers the raised central hub on the burner specifically to prevent water entry into the gas line during outdoor exposure, and the pan includes weep holes for the same reason. Both pan and burner are 304 stainless steel. The standard EI configuration delivers 125,000 BTU at 120VAC or 24VAC; the Torpedo burner upgrade delivers 140,000 BTU at the same power requirements. Match Lit delivers 65,000 BTU regardless of burner type. The Sedona is also available as a Fire & Water bowl (SEDO40W) with an integrated scupper using 12VAC power -- the same pool-compatible low-voltage system used on the Mesa Fire & Water bowl -- for installations at pool edges or water features where a 12V system is standard.



Both Natural Gas and Liquid Propane are available on all configurations. Fire rock (2 bags) and fire glass (60 lbs) are included with all Sedona configurations. An optional copper bowl cover (FPHC-40SEDONA-SQ) is available for the Sedona specifically. Products ship in 1 to 2 business days from HPC's warehouses in Las Vegas, NV and Dayton, OH.



Backyard Prime Living is a certified authorized reseller of HPC Fire. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Hand Hammered, Oil Rubbed Copper Construction -- Each Sedona is individually hand-hammered by HPC Fire artisans and finished with an oil rub that enhances the copper's depth and warmth. The oil-rubbed hammered finish will develop a natural patina with outdoor exposure over time.
• The Square Copper Fire Pit in the HPC Lineup -- The Sedona is HPC's square hammered copper fire pit, positioned between the round Mesa and Tempe bowls and the rectangular Phoenix. The square format anchors a seating arrangement and works with outdoor living room geometry in a way round bowls do not.
• 40 x 40 Inch Top, 20 x 20 Inch Base, 16 Inches Tall -- The Sedona's tapered square profile measures 40 inches across the top and tapers to a 20 x 20 inch base. At 16 inches tall, the flame is at the right height for standard outdoor seating surrounding the pit on all four sides.

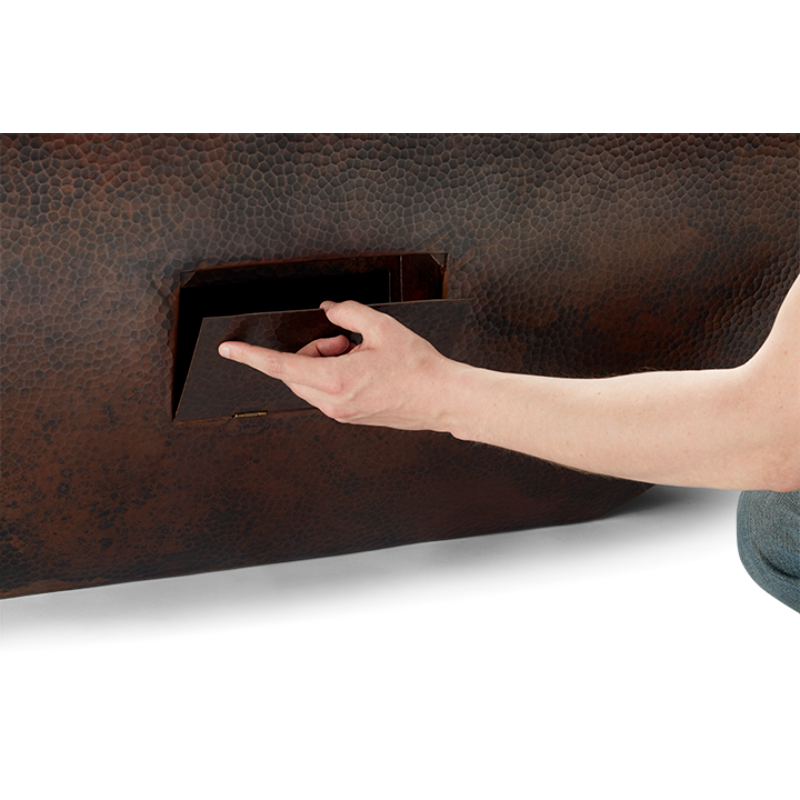

• Deep Bowl Design with Control Box Inside -- The Sedona is deep enough to house the Electronic Ignition control box entirely inside the bowl, allowing placement at ground level or column height without hardware visible above the rim. Match Lit key valve can also be mounted inside the bowl.
• 18-Inch Penta Burner on 25-Inch Flat Pan -- The 18-inch 304 stainless steel Penta burner sits in a 25-inch 304 stainless steel flat pan. The burner features a raised central hub designed to prevent water entry into the gas line. The pan includes weep holes for drainage.
• Standard Penta Burner or Torpedo Burner Upgrade -- The standard configuration uses an 18-inch Penta burner. The Torpedo burner upgrade applies HPC's patented nozzle technology to the Penta burner for taller, fuller flames and higher BTU output on EI configurations.
• 125,000 BTU (Standard EI) / 140,000 BTU (Torpedo EI) -- The Electronic Ignition configurations deliver 125,000 BTU with the standard Penta burner and 140,000 BTU with the Torpedo burner upgrade. Match Lit delivers 65,000 BTU on both burner types.
• Electronic Ignition On/Off -- 125,000 BTU (standard) / 140,000 BTU (Torpedo). 120VAC or 24VAC. One-touch on/off with continuous flame sensing and automatic gas shutoff on flame loss. Includes input flex line. Available as Fire Bowl (SEDO40-EI, 120VAC) or Fire & Water Bowl (SEDO40W-EI, 12VAC).
• Match Lit (MLFPK) -- 65,000 BTU regardless of burner type. Key valve ignition. No electricity or batteries required. Key valve can be mounted inside the bowl for a clean installation appearance. Available as Fire Bowl (SEDO40-MLFPK) or Fire & Water Bowl (SEDO40W-MLFPK).
• Available as Fire Bowl or Fire & Water Bowl -- The Fire Bowl is the standard configuration. The Fire & Water bowl (SEDO40W) adds an integrated water scupper and uses 12VAC power -- the same pool-compatible low-voltage system as the Mesa Fire & Water Bowl -- for poolside applications.
• CSA Certified Fire Pit Insert -- The fully assembled insert is CSA certified for outdoor use in both residential and commercial applications.
• Available in Natural Gas or Liquid Propane -- Both fuel types available on all configurations and both bowl types. Change "NG" to "LP" in the SKU for liquid propane.
• Available in 120VAC or 24VAC (Fire Bowl EI only) -- Fire Bowl EI configurations available in both 120VAC and 24VAC. Fire & Water Bowl EI uses 12VAC (pool-rated low voltage; requires 12VAC power supply, sold separately).
• Fire Rock and Fire Glass Included -- 2 bags of fire rock and 60 lbs of fire glass are included with all Sedona configurations. Fire rock is placed on the burner first; fire glass is placed over and around the fire rock. Do not cover burner orifices.

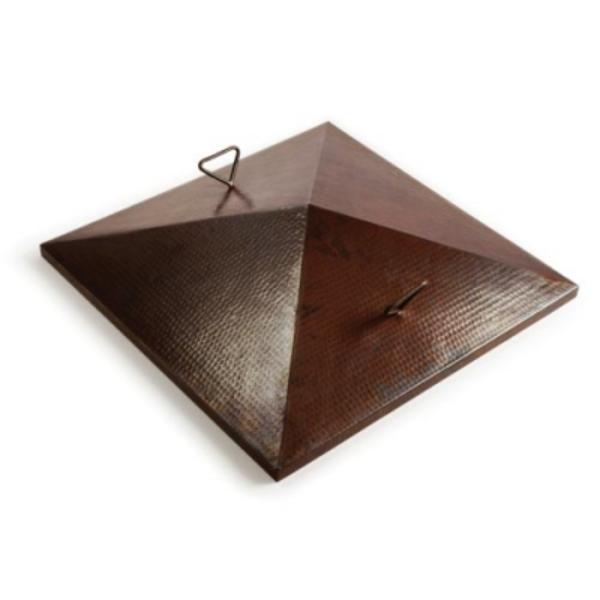

• Optional Copper Bowl Cover Available -- A Sedona-specific copper bowl cover (FPHC-40SEDONA-SQ) is available for purchase. Measures 30 x 30 inches at 7 inches tall, weighing 13.5 lbs.
• Ships in 1 to 2 Business Days -- HPC ships from warehouses in Las Vegas, NV and Dayton, OH.
• 3-Year Warranty on Copper Bowl (Residential and Commercial) -- The copper bowl carries a 3-year warranty for both residential and commercial applications.
• Lifetime Warranty on Stainless Steel Burner and Pan -- Lifetime for both residential and commercial use.
• 3-Year Warranty on Electronics (Residential) / 1-Year (Commercial) -- Electronics warranted 3 years residential, 1 year commercial.




What's Included

ALL CONFIGURATIONS (MLFPK AND EI -- FIRE AND FIRE & WATER):

• 40 x 40 Inch Square Hand Hammered, Oil Rubbed Copper Bowl
• Fully assembled CSA-certified fire pit insert pre-installed in bowl
• 25-inch flat pan with 18-inch Penta Burner (standard) OR Torpedo Penta Burner (Torpedo upgrade) -- 304 stainless steel
• 2 bags fire rock media
• 60 lbs fire glass media
• Instructions

MLFPK (Match Lit) ALSO INCLUDES:

• Key valve (mountable inside bowl) and chrome key

EI (Electric Ignition) FIRE BOWL ALSO INCLUDES:

• Electronic ignition control box (housed inside bowl)
• Input flex line

OPTIONAL ACCESSORY (SOLD SEPARATELY):

• Sedona copper bowl cover: FPHC-40SEDONA-SQ (30 x 30 in, 7 in tall, 13.5 lbs)

NOT INCLUDED / SOLD SEPARATELY:

• Gas supply line, natural gas stub-out, or LP tank
• AC power wiring (required for EI models; 120VAC or 24VAC for Fire Bowl; must be installed by a certified electrician)
• 12VAC power supply (required for Fire & Water Bowl EI -- SEDO40W-EI; sold separately)
• Pool pump (required for Fire & Water water feature)
• LP regulator and connection hose (for LP applications)
• Additional fire rock or fire glass



INSTALLATION NOTE: The bowl must be placed on a level surface with adequate drainage at the installation site. Ventilation must remain unobstructed. A certified gas technician must make all gas connections. A certified electrician must install all AC electrical connections for EI models. Fire Bowl EI (SEDO40-EI) requires 120VAC or 24VAC power. Fire & Water Bowl EI (SEDO40W-EI) requires 12VAC power -- do not use standard 120VAC with the Fire & Water configuration. All gas connections must comply with local codes. Natural gas supply pressure: minimum 3.5 in WC, maximum 7.0 in WC. Liquid propane supply pressure: minimum 8.0 in WC, maximum 11.0 in WC. Do not cover burner orifices when placing fire rock or fire glass. Fire rock must be placed on the burner first; fire glass is placed over and around the fire rock. The burner's raised central hub is designed to prevent water entry into the gas line -- do not block it with fire media.



Specifications

Manufacturer: HPC Fire (Hearth Products Controls)
Product Name: Sedona 40 Inch Square Hand Hammered Oiled Copper Gas Fire Pit
Country of Origin: USA (hand-hammered by HPC Fire artisans)
Product Type: Complete copper fire pit
Construction: Hand-hammered, oil-rubbed copper exterior; 25-inch flat pan with 304 stainless steel burner
Certification: CSA Certified -- Outdoor Use Only, Residential and Commercial

DIMENSIONS:
Overall Width: 40 in
Overall Depth: 40 in
Overall Height: 16 in
Base Dimensions: 20 in x 20 in

BURNER AND PAN:
Pan Size: 25 in flat pan (304 Stainless Steel; includes weep holes)
Burner Size: 18 in Penta Burner (304 Stainless Steel; raised central hub prevents water entry)
Standard Burner: Penta Burner
Torpedo Burner: Torpedo Penta Burner (patented nozzle; taller, fuller flame; add TOR- prefix to SKU)

BTU TABLE:
Fire Bowl -- Electronic Ignition (120VAC or 24VAC):
Standard Burner: 125,000 BTU
Torpedo Burner: 140,000 BTU

Fire Bowl -- Match Lit:
Standard Burner: 65,000 BTU (change NG to LP for propane)
Torpedo Burner: 65,000 BTU (change NG to LP)

POWER REQUIREMENTS BY CONFIGURATION:
Fire Bowl EI: 120VAC or 24VAC
Match Lit: No power required

GAS SUPPLY PRESSURE:
Natural Gas: Minimum 3.5 in WC; Maximum 7.0 in WC
Liquid Propane: Minimum 8.0 in WC; Maximum 11.0 in WC

FIRE MEDIA (INCLUDED):
Fire Rock: 2 bags
Fire Glass: 60 lbs

OPTIONAL ACCESSORY:
Sedona Copper Bowl Cover: FPHC-40SEDONA-SQ -- 30 x 30 in, 7 in tall, 13.5 lbs

SHIPPING:
Lead Time: Typically 1 to 2 business days
Warehouses: Las Vegas, NV and Dayton, OH
Method: UPS / FedEx standard; freight for large orders

WARRANTY:
Copper Bowl: 3 years (residential) / 3 years (commercial)
Burner and Pan (Stainless Steel): Lifetime (residential and commercial)
Electronics: 3 years (residential) / 1 year (commercial)
Pilot Assembly: 2 years (residential) / 1 year (commercial)
Warranty Page: https://hpcfire.com/warranty-information/



Manuals / Downloads

HPC Fire Sedona 40" Square Hammered Copper Fire Bowl Spec Sheet
