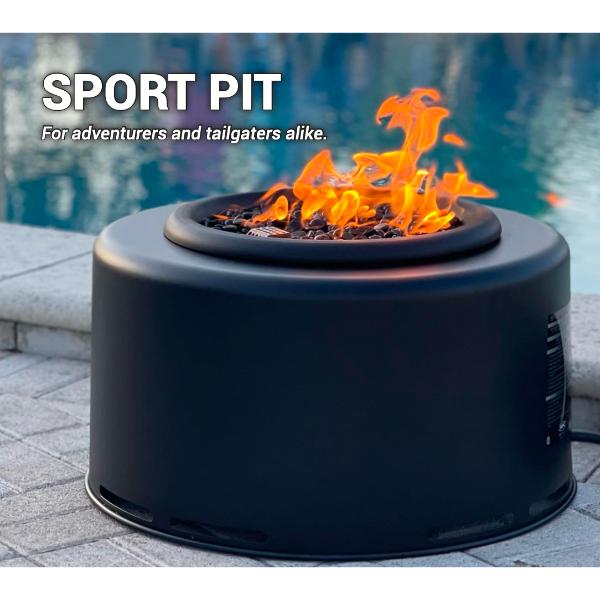

HPC Portable Sport Fire Pit



Description

The HPC Fire Inspired Sport Pit is a portable propane fire pit built for exactly what its name suggests -- a fire feature that goes where you go. At 20 inches in diameter and 13 inches tall, it is compact enough to move between the backyard, the tailgate, the campsite, and the patio without requiring installation, a gas line, or a permanent pad. The lid spins on for transport, keeping the unit sealed and ready to move in a single step. A 13-foot hose on the built-in regulator gives you enough reach to keep the 20 lb LP tank positioned away from the fire and out of foot traffic while you're running.



The insert is the complete functional package: a 10-inch round burner, thermocouple flame failure protection, a tip-over safety switch, and the built-in regulator are all integrated into the insert assembly. The thermocouple shuts off gas flow if the flame extinguishes unexpectedly. The tip-over switch shuts the unit off automatically if it tilts beyond 45 degrees. Together, these two safety systems mean the Sport Pit is rated for both residential and commercial use -- CSA certified and built to ANSI Z21.97-2017 / CSA 2.41-2017. HPC rates the unit for up to 13 hours of burn time on a single 20 lb propane tank.



The fire media -- approximately a half inch of decorative glass or lava rock over the burner -- is required for operation. Non-porous, moisture-holding materials such as river rock, gravel, or pebbles are not approved. The Sport Pit is not rated for cooking. Operate on a flat, level surface only. A 20 lb propane cylinder with a QCC1 valve is required; not included.



Ships in 1 to 2 business days from Las Vegas, NV or Dayton, OH.



Backyard Prime Living is a certified authorized reseller of HPC Fire Inspired. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Portable Propane Fire Pit -- 20-inch diameter, 13-inch height. Built to move between the backyard, tailgate, campsite, and patio. No gas line, no installation, no permanent pad required.
• Spinning Lid for Easy Transport -- Lid spins on to seal the unit for transport.
• 10-Inch Round Burner -- Integrated into the fire pit insert assembly along with the regulator, thermocouple, and tip switch.
• Built-In Regulator with 13-Foot Hose -- Keeps the LP tank positioned away from the fire. QCC1 fitting for standard 20 lb propane cylinders.
• Up to 13 Hours Burn Time -- Rated for up to 13 hours on a single 20 lb propane tank.
• Thermocouple Flame-Failure Protection -- Shuts off gas flow if the flame extinguishes unexpectedly.
• Tip-Over Safety Switch -- Shuts off the unit automatically if it tilts beyond 45 degrees.
• ANSI / CSA Certified -- Built to ANSI Z21.97-2017 / CSA 2.41-2017. CSA certified for residential and commercial use.
• Propane (LP) Only -- Manifold pressure 11.0" W.C. Do not use alternative fuels, including biofuel, ethanol, or lighter fluid.
• Not Rated for Cooking
• Outdoor Use Only -- Operate on a flat, level surface only. Keep flammable materials, gasoline, and vapors away from the unit at all times.
• Stainless Steel Burner -- Lifetime limited warranty. Stainless steel pan covered 5 years residential / 1 year commercial.



What's Included

SPORTPIT20-BLK INCLUDES:

• Fire pit insert (burner, thermocouple, regulator, tip-over switch, safety valve)
• Pan
• Lid (spinning for transport)
• Sport Pit shell
• LP tank hose (13 ft, QCC1 fitting)

NOT INCLUDED:

• 20 lb propane cylinder (required; QCC1 valve with collar, safety relief device, overfill protection, and vapor withdrawal required)
• Fire media -- approximately 1/2 inch of decorative glass or lava rock required for operation (sold separately; non-porous materials such as river rock, gravel, or pebbles are not approved)



INSTALLATION NOTE: Connect to a 20 lb propane cylinder only (self-contained units limited to 30 lb or less). Mount the tank to a solid surface with an L-bracket or enclosure to prevent tipping. Keep the tank and hose out of walkways. Perform a leak test on all connections before first use, annually, and whenever the cylinder is reconnected or a gas component is replaced -- apply 10% soapy water to all fittings with the tank open and the unit off; bubbles indicate a leak. Never test for leaks with an open flame. Do not store a spare cylinder under or near the unit. If the LP tank or any remote enclosure is used, maintain a minimum 54" separation from the fire pit. Annual service by an NFI Gas Specialist (US) or WETT-certified professional (Canada) is recommended.



Specifications

Manufacturer: HPC Fire Inspired (hpcfire.com)
Model Name: Sport Pit Portable Fire Pit
SKU: SPORTPIT20-BLK
Model No.: 950-SPORT PIT
Product Type: Portable outdoor propane fire pit
Use: Outdoor only; residential and commercial

DIAMETER: 20 in (drawing confirms 22 in overall with shell)
HEIGHT: 13 in
BURNER: 10-inch round
FUEL TYPE: Propane (LP) only -- no alternative fuels
MANIFOLD PRESSURE: 11.0" W.C.
OPERATING SUPPLY PRESSURE: 10.0" W.C. minimum / 11.0" W.C. maximum
BURN TIME: Up to 13 hours on a 20 lb propane tank
HOSE LENGTH: 13 ft
HOSE FITTING: QCC1 (standard 20 lb cylinder connection)
IGNITION: Manual match-lit (long-handled lighter or match); thermocouple flame-failure protection
SAFETY: Tip-over switch (shuts off at angles greater than 45°); thermocouple flame-failure device
CERTIFICATION: ANSI Z21.97-2017 / CSA 2.41-2017; CSA certified
NORMAL FLAME HEIGHT: 6 to 8 in
COOKING: Not rated for cooking
WEIGHT: Not published -- contact Backyard Prime Living for shipping weight

CLEARANCES (REQUIRED):
Sides from structures or combustibles: 36 in minimum (12 in for noncombustible surfaces)
Overhead clearance: 84 in minimum
LP tank or RV/camper: 54 in minimum from fire pit

LP TANK REQUIREMENTS:
Tank size: 20 lb propane cylinder (self-contained; 30 lb maximum)
Valve type: QCC1 with collar, safety relief device, overfill protection (listed), vapor withdrawal
Cylinder fill limit: 80% maximum
Tank enclosure (if used): Minimum 54 in from fire pit; open-sided or four-sided with specified top and floor venting per HPC installation instructions

MEDIA REQUIREMENTS:
Type: Decorative glass or lava rock only (approximately 1/2 in depth over burner)
Prohibited: Non-porous or moisture-holding materials (river rock, gravel, pebbles)
Wet lava rock: Allow 45 minutes of burn time before anyone comes within 15 feet

SHIPPING:
Lead Time: Ships 1 to 2 business days
Ships From: Las Vegas, NV or Dayton, OH

WARRANTY:
Stainless steel burner: Lifetime limited warranty
Stainless steel pan: 5 years residential / 1 year commercial
Coverage begins: Original sale or shipment date
Exclusions: Overheating, modification, abuse, improper storage, improper installation or maintenance; labor not covered
Full Warranty Terms: hpcfire.com/warranty-information/



Manuals / Downloads

HPC Portable Sport Fire Pit Spec Sheet
