HPC Tejas 48" x 24" Rectangular Metal Fire Pit with Torpedo Burner



Description

There is a reason landscape architects, outdoor living designers, and hospitality professionals reach for HPC Fire when they need a fire feature that can carry a project. The Tejas 48 x 24 Inch Rectangular Fire Pit is not a fire bowl or a concrete vessel -- it is a fully assembled, CSA-certified, professional-grade fire pit in a precision-welded metal enclosure, ready to perform from the moment it ships. No concrete to handcraft, no vessel to cure, no lead time of weeks. The Tejas ships in 1 to 2 business days and arrives ready to install.



The enclosure is constructed from 16-gauge cold rolled steel, welded into a rigid rectangular form and finished with a weather-proof powder coat in your choice of six colors: Black, Gray, Java, Pewter, Silver Vein, or White. At 48 inches long and 24 inches wide, the Tejas is proportioned for a dining table, a seating group, a built-in patio installation, or any outdoor space where a long, low horizontal flame is the right design choice. The H-burner configuration produces a wide, even flame that fills the full length of the pan -- not a concentrated center flame, but a broad, dramatic display that reads from across the space.



Four ignition configurations are available, each with a different performance profile. The Match Lit version (MLFPK) delivers 65,000 BTU with adjustable flame height via key valve -- the simplest and most reliable option with no electronics and no power requirements. The Push Button/Flame Sensing configuration (FPPK) runs on AA batteries, produces 150,000 BTU, and adds an automatic gas shut-off if the flame is extinguished -- no power line required, but with the safety benefit of flame sensing technology. The Electronic Ignition On/Off version (EI) and the Electronic Ignition Hi/Lo version (EI-HI/LO) both produce 150,000 BTU on 120VAC or 24VAC, with the Hi/Lo version adding variable flame height control and a remote control included in the box.



The pan assembly is a 2.5-inch deep bowl-style design with a 1-3/8-inch lip. The 18 x 6 inch 304 stainless steel H-burner (model TOR-HBSB24) sits in the pan and is pre-assembled at the factory. The enclosure is pre-cut for FPPK or MLFPK valve installation, and venting runs along the full bottom of the enclosure -- open toe-kick style ventilation that keeps the burner supplied with combustion air without requiring any field modifications. Adequate drainage at the installation site is required.



At 150 lbs, the Tejas is a substantial fire feature built for the environments where permanence matters -- hotel courtyards, restaurant patios, resort pool decks, and residential outdoor living rooms that are built to last. HPC's lifetime warranty on the burner backs that commitment.



Backyard Prime Living is a certified authorized reseller of HPC Fire. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Fully Assembled and Ready to Install -- The Tejas ships with the fully assembled fire pit insert pre-installed in the enclosure. No field assembly of the burner system required. Enclosure, insert, and hardware arrive ready to connect to gas and power.
• 48 x 24 Inch Rectangular Format -- A long, horizontal profile proportioned for dining tables, seating groups, and built-in outdoor installations where a wide, dramatic flame display is the design goal.
• H-Burner Configuration for a Full, Even Flame -- The TOR-HBSB24 H-style burner produces a wide, even flame that spans the full length of the pan rather than concentrating in the center. The H-burner format creates the broadest, most dramatic flame display in HPC's burner lineup.
• 16-Gauge Cold Rolled Steel Welded Construction -- Heavy-duty professional-grade steel construction provides superior resistance to rust, corrosion, and weather damage. This is not a lightweight consumer product -- it is a commercial-grade enclosure built to last in permanent outdoor installations.

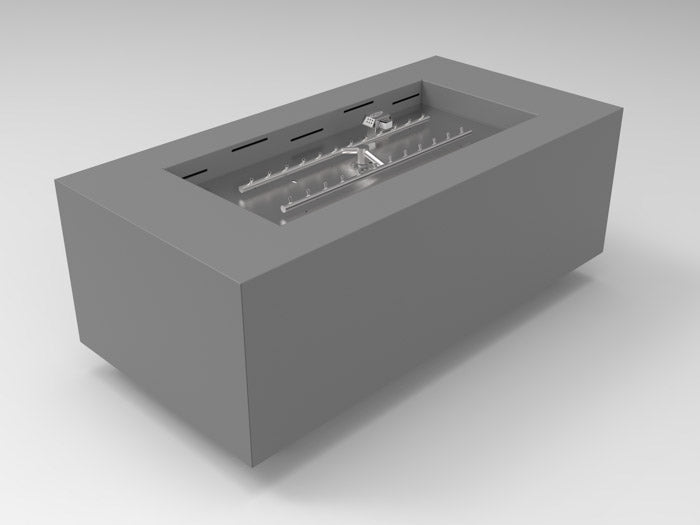

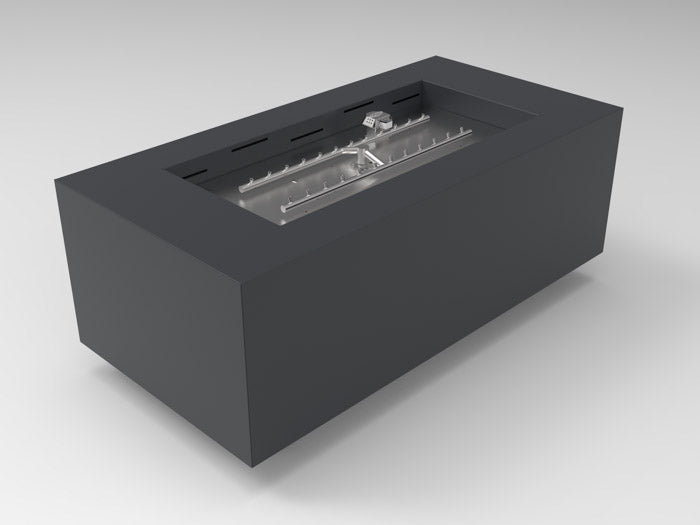

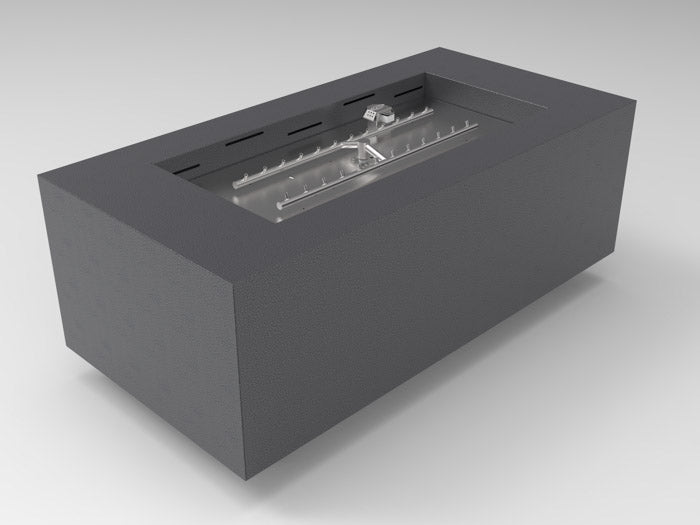

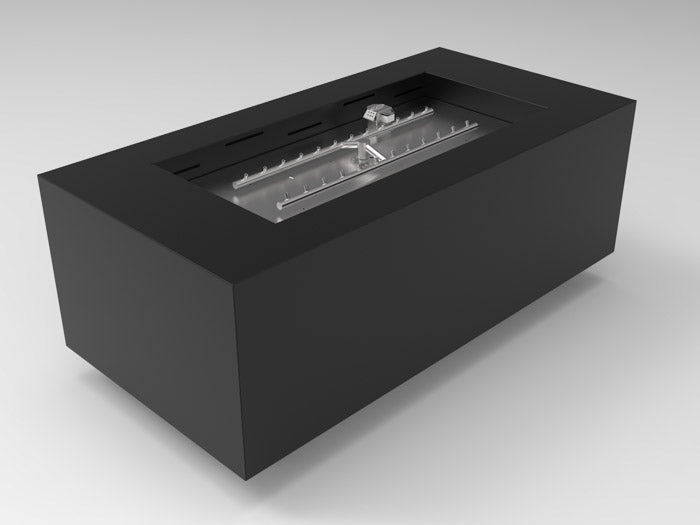

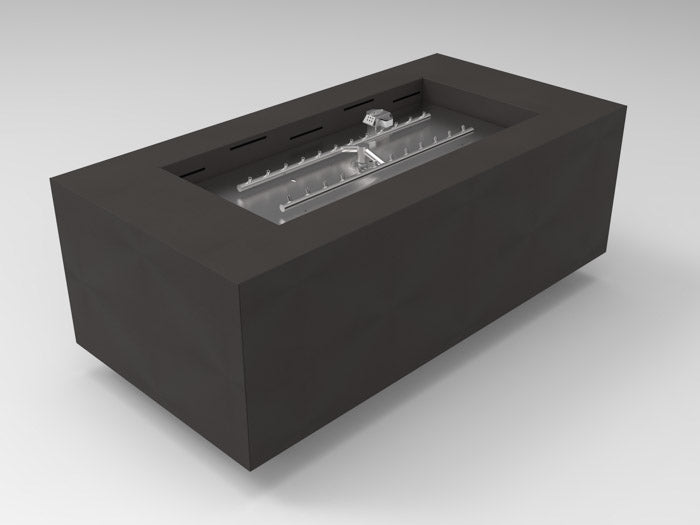

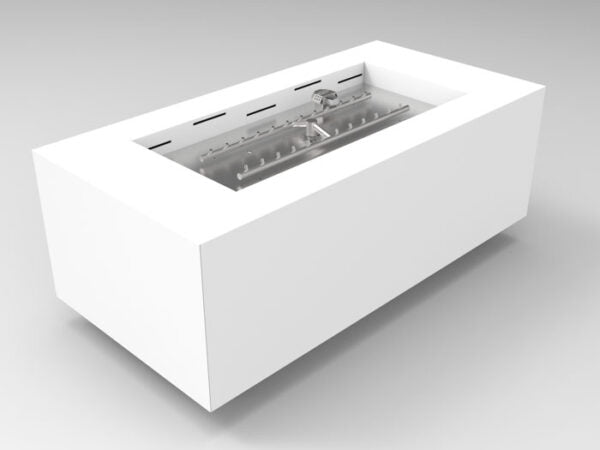

• Six Powder Coat Color Options -- Black, Gray, Java, Pewter, Silver Vein, White. Weather-proof powder coat finish in all six colors. Choose the color at time of order.
• Toe Kick Ventilation Along Full Bottom -- Full open venting along the bottom of the enclosure ensures adequate combustion air supply to the burner. Venting must remain clear of debris and finishing material at all times.
• Pre-Cut for FPPK or MLFPK Valve Installation -- The enclosure includes a pre-cut opening for the push button or match lit key valve, eliminating field cutting and ensuring a clean, professional valve installation.
• Four Ignition Configurations Available -- Choose the ignition system that matches your project requirements: Match Lit (MLFPK), Push Button/Flame Sensing (FPPK), Electronic Ignition On/Off (EI), or Electronic Ignition Hi/Lo (EI-HI/LO) with remote.
• Match Lit (MLFPK) -- 65,000 BTU. Key valve ignition. Adjustable flame height. No electricity or batteries required. Simple, reliable, virtually maintenance-free.
• Push Button / Flame Sensing (FPPK) -- 150,000 BTU. AA battery powered -- no AC power line required. Push button ignition with flame sensing technology. If the flame is extinguished, gas automatically shuts off to prevent buildup. Includes mounting sleeve.
• Electronic Ignition On/Off (EI) -- 150,000 BTU. 120VAC or 24VAC power. On/off operation. Includes input flex line and instructions.
• Electronic Ignition Hi/Lo (EI-HI/LO) -- 150,000 BTU. 120VAC or 24VAC power. Variable flame height control (Hi/Lo). Remote control included. The most feature-rich configuration -- ideal for commercial and hospitality settings where flame adjustment and remote operation are required.
• CSA Certified Fire Pit Insert -- The fully assembled insert is CSA certified for outdoor use in both commercial and residential applications.
• 2.5-Inch Deep Bowl-Style Pan -- The pan features a 2.5-inch depth with a 1-3/8-inch lip for a sleek, functional design that keeps media in place and manages the flame display.
• Compatible with Multiple Fire Media Types -- Lava rocks, fire glass, and ceramic logs are all compatible with the Tejas. Media is sold separately.
• Commercial and Residential Use -- CSA certified for both commercial and residential outdoor applications. Suitable for hotels, restaurants, resort pools, multi-residential developments, and private residences.
• Ships in 1 to 2 Business Days -- HPC ships from warehouses in Las Vegas, NV and Dayton, OH, with typical 1 to 2 business day ship times.
• Lifetime Warranty on Burners -- HPC Fire provides a lifetime warranty on the stainless steel burner.
• 5-Year Warranty on Stainless Steel Pan (Residential) -- The pan is warranted for 5 years on residential installations.
• 1-Year Warranty on Stainless Steel Pan (Commercial) -- Commercial installations carry a 1-year pan warranty.



What's Included

ALL CONFIGURATIONS (MLFPK, FPPK, EI, EI-HI/LO):

• Tejas 48 x 24 Rectangular Powder Coated Metal Enclosure (in selected color)
• Fully Assembled Fire Pit Insert (CSA Certified, pre-installed in enclosure)
• TOR-HBSB24 H-Burner (pre-assembled in insert)
• 2.5-inch Deep Bowl-Style Fire Pan - Instructions

FPPK (Push Button/Flame Sensing) ALSO INCLUDES:

• Mounting Sleeve for push button valve

EI AND EI-HI/LO (Electronic Ignition) ALSO INCLUDES:

• Input Flex Line - Remote Control (Hi/Lo models only -- remote is NOT included with standard On/Off EI model)



NOT INCLUDED / SOLD SEPARATELY:

• Gas supply line, natural gas stub-out, or LP tank
• AC power wiring (required for EI models -- 120VAC or 24VAC; must be installed by a certified electrician)
• AA batteries (required for FPPK models)
• Decorative fire media: Lava rock, fire glass, or ceramic logs (all compatible -- sold separately)
• Remote control (included with EI-HI/LO only; not included with standard On/Off EI) - Cover or protective cover (not available from HPC for this model -- third-party cover sizing required)



INSTALLATION NOTE: Venting along the bottom of the enclosure must remain clear of debris and any finishing material at all times. Adequate drainage at the installation site is required. A certified gas technician must make all gas connections. A certified electrician must install all AC electrical connections for EI models. The enclosure is pre-cut for FPPK or MLFPK valve installation. For EI models, the valve box mounts inside the enclosure per the installation instructions.



Specifications

Manufacturer: HPC Fire (Hearth Products Controls)
Model Name: Tejas Series -- 48 x 24 Rectangular Metal Fire Pit Enclosure
Product Type: Complete fire pit (enclosure + fully assembled insert)
Certification: CSA Certified -- Outdoor Use Only, Commercial and Residential



ENCLOSURE DIMENSIONS:
Overall Length: 48 in
Interior Pan Length: 33 in
Overall Width: 24 in
Interior Pan Width: 15 in
Overall Height: 18 in
Base / Leg Height: 16 in

WEIGHT:
Assembled Weight: 150 lbs

CONSTRUCTION:
Material: Cold Rolled Steel, 16-gauge welded construction
Finish: Powder coat -- weather-proof, available in 6 colors
Colors Available: Black, Gray, Java, Pewter, Silver Vein, White
Ventilation: Full open venting along bottom (toe kick style); must be clear of debris and finishing material
Drainage: Adequate drainage required at installation site

BURNER:
Model: TOR-HBSB24
Style: H-Burner (horizontal bar burner -- produces wide, even flame)
Pan Style: 2.5 in deep bowl-style; 1-3/8 in lip
Pan Burner Material: 304 Stainless Steel (18 in x 6 in burner within pan)

IGNITION CONFIGURATIONS AND PERFORMANCE:

Match Lit (MLFPK):
Part Number: TOR-TEJ48X24-MLFPK
BTU Output: 65,000 BTU
Power: None required
Ignition: Key valve / manual
Flame Control: Adjustable (variable flame height)
Includes: Enclosure, fully assembled insert, instructions
Note: Enclosure pre-cut for MLFPK valve installation



Push Button / Flame Sensing (FPPK):
Part Number: TOR-TEJ48X24-FPPK
BTU Output: 150,000 BTU
Power: AA battery (no AC power required)
Ignition: Push button with flame sensing
Flame Sensing Safety: Automatic gas shut-off if flame is extinguished
Includes: Enclosure, fully assembled insert, mounting sleeve, instructions
Note: Enclosure pre-cut for FPPK valve installation



Electronic Ignition -- On/Off (EI):
Part Number: TOR-TEJ48X24-EI
BTU Output: 150,000 BTU
Power: 120VAC or 24VAC
Ignition: Electronic ignition (on/off)
Flame Control: On/Off only (not variable)
Includes: Enclosure, fully assembled insert, input flex line, instructions
Remote: Not included



Electronic Ignition -- Hi/Lo (EI-HI/LO):
Part Number: TOR-TEJ48X24-EI-HI/LO
BTU Output: 150,000 BTU
Power: 120VAC or 24VAC
Ignition: Electronic ignition (Hi/Lo variable)
Flame Control: Variable (Hi and Lo settings)
Includes: Enclosure, fully assembled insert, input flex line, remote control, instructions
Remote: Included



FUEL TYPES:

Natural Gas (NG) or Liquid Propane (LP) -- specify at time of order for all configurations

SHIPPING:
Lead Time: Typically 1 to 2 business days
Method: UPS / FedEx standard; freight for large orders

WARRANTY:
Burner (Stainless Steel): Lifetime
Stainless Steel Pan: 5 years (residential) / 1 year (commercial)
Enclosure: Warranted against manufacturing defects from original date of sale
Warranty Page: https://hpcfire.com/warranty-information/



Manuals / Downloads

HPC Tejas Spec Sheet
