Leisurecraft CT Elation Wood Burning Heater Sauna

Description

The Leisurecraft Canadian Timber Elation is a 3 to 4 person outdoor barrel sauna built exclusively for wood-burning heat, handcrafted in Canada from Eastern White Cedar and engineered to deliver the kind of deep, radiant warmth that no electric element can replicate. The barrel geometry is purpose-built for efficiency: curved walls concentrate heat exactly where your body needs it, the interior volume stays compact so the sauna reaches temperature quickly, and no ceiling space goes to waste.



What separates the Elation from standard barrel designs is the attention to detail above and beyond the basic stave-and-band formula. The exterior is clad in beveled cedar siding that adds a genuine layer of R-value and water protection, substantially improving both insulation performance and long-term weather resistance compared to flat-cut exteriors. Inside, a solid flat cedar floor replaces the curved floor found on entry-level barrels, giving you a stable, level surface underfoot that makes the interior far more comfortable and safe, especially when moving around a hot space. Two front-facing acrylic windows flood the interior with natural light and connect you to your outdoor surroundings without sacrificing heat retention, making the Elation one of the most inviting designs in the Canadian Timber lineup.



The included seating is built wide. Inside benches measure a full 23 inches across, which gives every person enough room to sit back and genuinely relax rather than perch. Two exterior side benches mount to the front face of the barrel so you have a place to cool down between sessions without walking away from the sauna. A swivel-block vent system on both the front and rear walls gives you direct control over airflow from inside the cabin.



The entire structure ships as a precision-cut, pre-drilled flat-packed kit with a numbered step-by-step assembly manual and a companion video guide available via QR code. Two people with basic tools can complete the build over a weekend without professional labor. The kit is designed for wood-burning heaters only, meaning you heat it the traditional way -- with fire, steam, and the kind of radiant warmth that sauna culture was built on.



Backyard Prime Living is a certified authorized reseller of Leisurecraft. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care. The CT Elation carries a 5-year residential limited warranty from Dundalk Leisurecraft Inc.



NOTE: This sauna structure is designed and rated for wood-burning heaters only. It is not compatible with electric heater installations. A level, solid foundation (concrete pad, wood deck, crushed stone, or paver blocks) is required prior to assembly and is the responsibility of the customer. All electrical connections for any optional accessories must be made by a licensed electrician.



Features

• Handcrafted in Canada -- Every CT Elation is individually built by Dundalk Leisurecraft Inc. in Melancthon, Ontario from 100% Canadian-sourced Eastern White Cedar. No two saunas are exactly identical due to the handcrafted process.
• Eastern White Cedar Construction -- Naturally rot-resistant, insect-resistant, and aromatic. Eastern White Cedar provides exceptional thermal performance and creates the warm, earthy scent that defines the traditional sauna experience. Grade-A solid cedar is used throughout with no tenon joints along the stave length.
• Barrel Design for Efficient Heat Retention -- The circular cross-section concentrates heat directly in the occupied zone, reduces total interior air volume so the space reaches temperature faster than a cabin design, and eliminates wasted ceiling space.

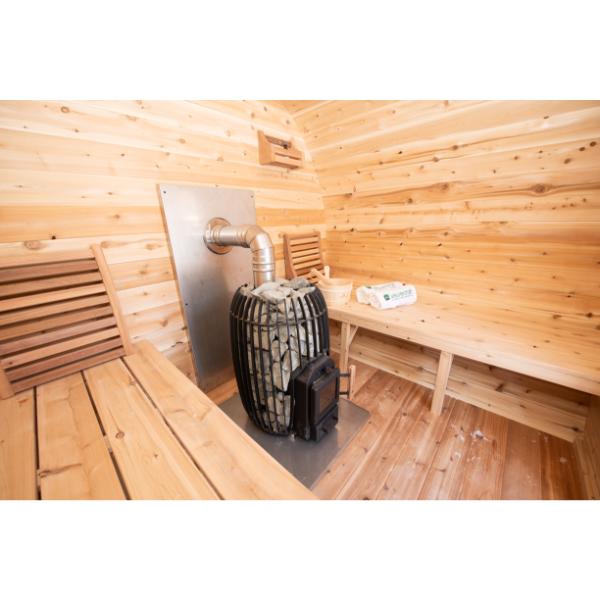

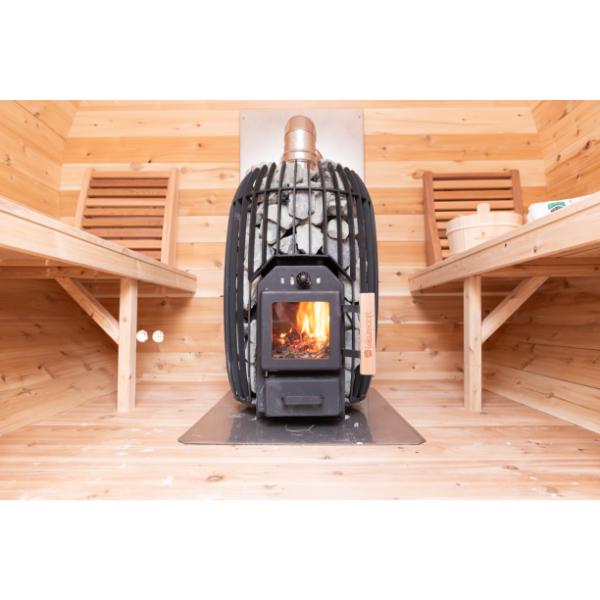

• Designed Exclusively for Wood-Burning Heaters -- The CTC2424W is engineered and rated for wood-burning stove installation only. No electrical wiring is required for the heater, making it an ideal off-grid or low-infrastructure installation. Compatible heater options include the Narvi Kuru 14, Narvi NC 16 Black, and Leisurecraft TimberGlow.
• Solid Flat Cedar Floor -- Unlike standard barrel saunas where the curved staves continue to the floor, the Elation features a solid flat cedar board floor mounted on a built frame. This provides a level, stable walking surface and dramatically improves comfort and safety inside the cabin.
• Beveled Cedar Bevel Siding -- The exterior of the Elation is clad in beveled cedar boards rather than left as raw staves. This adds a measurable additional layer of R-value, significantly improves water shedding, and gives the exterior a refined, finished appearance that stands apart from bare-stave barrels.
• Cedar Shingle Roofing -- Beveled cedar shingle boards are installed over ice and water shield underlayment to complete the exterior weather envelope. The shingle layer is included in the kit and installed during assembly using provided spacer blocks for consistent spacing.
• Ice and Water Shield Underlayment -- A self-adhering ice and water shield membrane is applied beneath the cedar shingles during assembly. This provides a fully waterproofed sub-roof surface that protects the structure in heavy rain, snow, and ice-dam conditions.

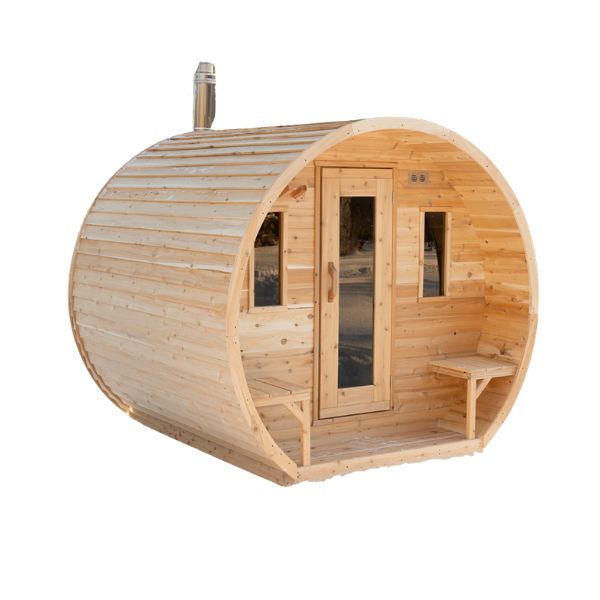

• Two Front-Facing Acrylic Windows -- Dual windows are integrated into the front wall panels, bringing natural light into the interior and offering a view outward. The acrylic glazing maintains heat retention while visually opening the space.
• Wide 23-Inch Inside Benches -- Inside benches measure 23 inches wide -- wider than the industry standard -- providing genuine lounging room for every occupant. Two inside benches seat 3 to 4 adults in full comfort.
• Two Outside Benches -- A bench mounts to each side of the front face of the barrel, providing a dedicated cool-down seating area directly adjacent to the sauna without requiring additional furniture.
• Interior Swivel-Block Vent System -- Adjustable wooden swivel-block vents are installed on both the front and rear walls of the sauna. The rear vent is positioned below bench height. Each vent allows the occupant to control airflow and temperature from inside the cabin.
• Pre-Drilled DIY Assembly Kit -- All cedar components are precision-cut and pre-drilled at the factory. The kit includes all required fasteners, a numbered assembly manual, and access to a companion video guide via QR code. Two people can typically complete assembly over a weekend.
• Stainless Steel Band System -- The barrel staves are secured with stainless steel tension bands. Bands should be checked and tightened within the first month after installation and periodically thereafter using a standard 3/4-inch wrench as the cedar settles.
• 5-Year Residential Limited Warranty -- The CT Elation structure carries a 5-year limited warranty against defects in materials and workmanship under normal residential use from Dundalk Leisurecraft Inc.



What's Inclulded

INCLUDED WITH EVERY CT ELATION WOOD BURNING SAUNA KIT (CTC2424W):

• All pre-cut and pre-drilled Eastern White Cedar wall staves
• Front and back circular wall panel sections (with pre-routed window openings)
• Solid flat cedar floor boards and bottom floor frame assembly
• Beveled cedar bevel siding boards (exterior cladding) - Ice and water shield underlayment sheeting
• Beveled cedar shingle boards (exterior roof finish)
• Cedar trim pieces for front and back gable ends
• Two inside bench flats with bench supports and legs (23" wide x 71" long per bench)
• Two outside benches with mounting hardware (18" wide)
• Door assembly with dual glass panels, interior and exterior door handle sets, and hinge hardware
• All fasteners and screws required for assembly (Robertson head)
• Interior swivel-block vent assemblies (front wall and rear wall, with exterior vent covers)
• Spacer blocks for shingle spacing during installation
• Accessory kit: cedar sand timer with wall mount, cedar thermometer, cedar interior shelf, and cedar towel hook
• Stainless steel tension band system
• Step-by-step printed assembly manual with QR code linking to companion assembly video



NOT INCLUDED / SOLD SEPARATELY:

• Wood-burning heater (available as add-on option at time of purchase: Narvi Kuru 14, Narvi NC 16 Black, or Leisurecraft TimberGlow)

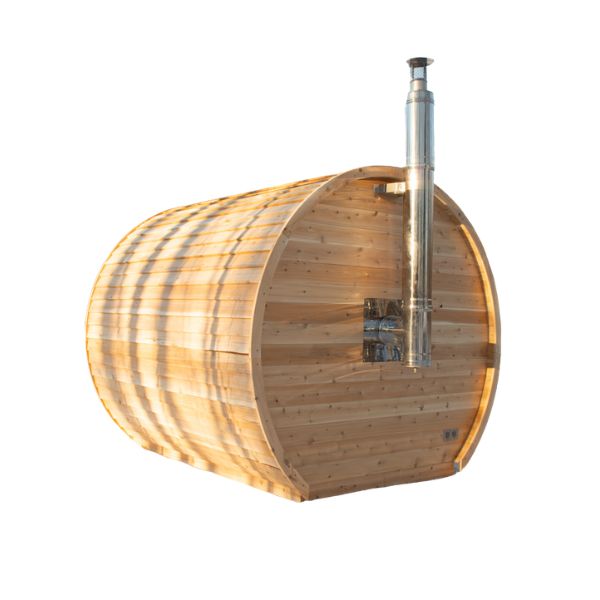

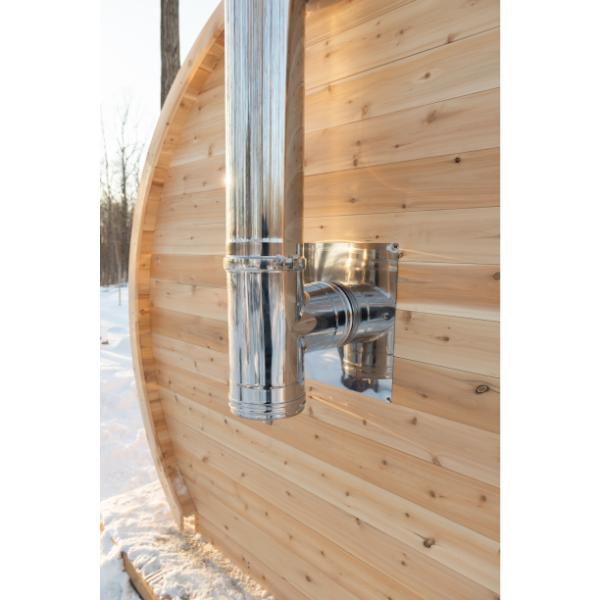

• Chimney kit (available as add-on option at time of purchase: straight out back wall, or with elbow out back wall)
• Floor plate or adjustable installation base (available as add-on option at time of purchase)
• Foundation or base (concrete pad, wood deck, crushed stone, or paver blocks -- required; customer responsibility)
• Sauna rocks (required for wood-burning stove; not part of the sauna kit)
• Sauna bucket and ladle
• Exterior stain or wood sealer
• Interior sauna oil (Leisurecraft recommends Livos Meldos Sauna Oil for the interior)
• Exterior wood stain (Leisurecraft recommends Livos Alis Natural Oil for the exterior)



NOTE: All electrical connections for any optional accessories must be made by a licensed electrician. Heater installation must be performed in accordance with the heater manufacturer's instructions. Failure to have electrical connections made by a licensed electrician will void the heater warranty.



Specifications

Manufacturer: Dundalk Leisurecraft Inc. (Leisurecraft)
Collection: Canadian Timber Collection
Model: CTC2424W
Heating Type: Wood-burning
Capacity: 3 to 4 persons
Interior Cubic Volume: 277 ft3 (7.84 m3)
Wood Species: Eastern White Cedar (Grade-A, solid, no tenon joints)
Floor Type: Solid flat cedar board floor (on built frame)
Exterior Cladding: Beveled cedar bevel siding
Exterior Roofing: Beveled cedar shingles over ice and water shield underlayment
Glazing: Dual front-facing acrylic windows
Country of Origin: Canada (handcrafted in Melancthon, Ontario)

EXTERNAL STRUCTURE DIMENSIONS:

Exterior Width: 98 inches (249 cm)
Exterior Depth: 96 inches (244 cm)
Exterior Height at Peak: 88 inches (224 cm)
Base Frame Width: 63 inches (160 cm)
Door Opening Height: 65 inches (165 cm)

INTERIOR BARREL DIMENSIONS (circular end wall):

Interior Height (vertical): 81.5 inches (207 cm)
Interior Width (horizontal): 91.5 inches (232 cm)

BENCH DIMENSIONS:
Inside Bench Length: 71 inches
Inside Bench Width: 23 inches
Inside Bench Seat Height: 18 inches

Outside Bench Length:  18 inches
Outside Bench Width: 18.75 inches
Outside Bench Seat Height: 16 inches

NOTE: Inside bench bracket height (floor to underside of bench) is 21 inches. Outside bench bracket height is 18.75 inches.

FRONT WALL WINDOW DIMENSIONS (per panel):

Window Width: approximately 26 inches (66 cm)
Window Height: approximately 23 inches (58 cm)
Number of Windows: 2 (front-facing, side of door)



WARRANTY:

Structure: 5-year residential limited warranty (Dundalk Leisurecraft Inc.)
Coverage: Defects in materials and workmanship under normal residential use
Exclusions: Normal wear and tear, improper installation, insufficient maintenance, natural weathering, failure to follow manufacturer care instructions
Parts Policy: Warranty covers replacement parts only -- service, labor, and installation costs are excluded
Heater Warranty: Varies by heater selected (Narvi: 2 years; Leisurecraft TimberGlow: 5 years; chimney kits: 5 years)



SHIPPING:

Shipping Weight (crate): 1,497 lbs (679 kg)
Delivery Method: LTL freight, curbside delivery
Packaging: Single flat-packed crate
Lead Time: Made to order - 2 - 4 weeks
