LeisureCraft CT Luna Sauna



Description

Most outdoor saunas make a compromise somewhere -- between design and function, between size and character, between looking like a wellness retreat and looking like a shed. The Leisurecraft CT Luna Sauna does not make that compromise. It is one of the most recognizable outdoor sauna designs in North America, and the reason is immediately obvious: the Luna is a cube with softened corners, a full-width bronze-tinted glass window beside a cedar-framed glass door, and a smooth bevel-sided exterior that reads as deliberately modern without abandoning the warmth of natural wood. Set it in a backyard or at a cottage, and it looks like it was designed for that space specifically.



The structure is built entirely from Eastern White Cedar -- handcrafted by Leisurecraft in Melancthon, Ontario from sustainably sourced wood cut at certified Canadian mills. Eastern White Cedar is the right species for an outdoor sauna: it is naturally rot-resistant and insect-resistant, it carries the tight knots and lighter tone that give the Luna its distinctive finish, and its fiber spacing gives it the heat retention characteristics that make cedar the benchmark material for sauna construction worldwide. The exterior is clad in white cedar bevel siding. The walls, floor, and benches are all cedar throughout. There are no composite panels, no vinyl trim pieces, and no synthetic materials inside the heat zone.



The Luna's rounded corners are more than an aesthetic choice. They are part of the structural kit -- each corner transition is engineered into the stave assembly rather than applied as a trim detail -- and they create a spacious interior feel that the exterior footprint does not suggest. The 7 by 7 footprint opens into an 80 1/4 inch square interior with nearly 80 inches of headroom, accommodating two-tier benches on the back wall with pre-assembled bench panels that span the full interior width. Each bench tier is 22 1/2 inches deep and wide enough to lie down fully outstretched -- a capability that is not a given in this footprint class. The upper tier sits at 33 1/2 inches from the floor; the lower at 16 1/2 inches. Both tiers are surfaced with the same Eastern White Cedar as the rest of the interior.

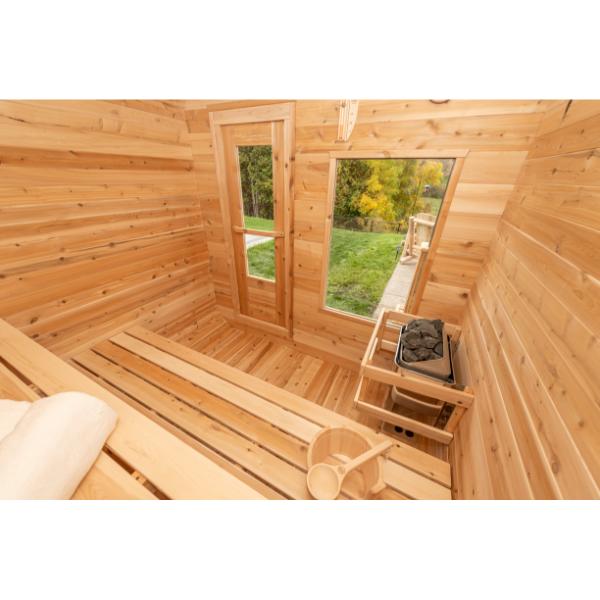

The front wall features a large double-pane 3mm tempered glass window -- 26 1/2 inches wide by 42 1/4 inches tall -- beside a cedar-framed door with 5mm bronze tempered glass, pre-hung and ready to install. The bronze tinting allows natural light in while obscuring the view from outside, giving the interior both openness and privacy. Cedar door handles inside and out, a single towel hook, and a complete vent kit with stainless steel grilles and cedar vent cover are all included in the kit. The roof is an EPDM rubber membrane system -- not steel shingles -- with a slight slope to prevent water pooling and cedar trim pieces for a finished edge. It is watertight, durable, and appropriate for year-round outdoor exposure.



The CTC22LU is configured for electric heat. A 6kW heater is required -- available from Leisurecraft's lineup of heater options including the Harvia KIP, HUUM Drop, HUUM Hive, and Homecraft Revive -- and is ordered separately or as a bundle at time of purchase. The sauna reaches operating temperature in approximately 30 to 45 minutes depending on ambient conditions and heater selection. Electrical requirements are 240V, 30 to 50 amp depending on the heater chosen; all final electrical connections must be made by a certified electrician.



Backyard Prime Living is a certified authorized reseller of Leisurecraft. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• Handcrafted in Canada -- Built by Leisurecraft in Melancthon, Ontario from sustainably sourced Eastern White Cedar. Every unit is handcrafted by Canadian woodworkers and carries the quality standard that has made the Canadian Timber Collection one of the most respected outdoor sauna lines in North America.
• Signature Rounded-Corner Cube Design -- The Luna's defining visual element is its softened cube silhouette with rounded corners engineered into the stave assembly. The result is a modern outdoor sauna that reads as a deliberate design choice rather than a utility structure -- and delivers a more spacious interior feel than the footprint suggests.
• Eastern White Cedar Construction Throughout -- Premium Eastern White Cedar for the exterior bevel siding, interior walls, ceiling, floor joists, and benches. Eastern White Cedar is naturally rot-resistant, insect-resistant, and prized for its light tone, tight knots, and heat retention characteristics that make it the benchmark material for cedar sauna construction.

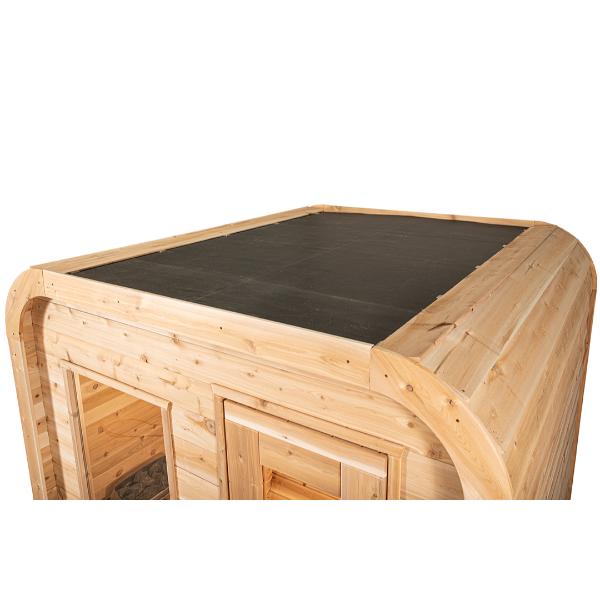

• EPDM Rubber Membrane Roof with Sloped Runoff -- The Luna uses an EPDM rubber membrane roof system rather than steel shingles, with a built-in slope that prevents water pooling on top. Cedar trim pieces provide a finished exterior edge. The system is watertight and designed for all-season outdoor exposure.
• Large Double-Pane Bronze Tempered Glass Front Window -- A 26 1/2 inch wide by 42 1/4 inch tall double-pane 3mm tempered glass window occupies most of the front wall beside the door. The bronze tint admits natural light while obscuring the view from outside, giving the interior openness and privacy simultaneously.
• 5mm Bronze Tempered Glass Door with Cedar Frame -- The sauna door is pre-hung in a cedar frame with 5mm bronze tempered glass, ready to install straight from the crate. The bronze glass matches the front window and provides a unified, modern aesthetic across the front face of the sauna.
• Cedar Door Handles Inside and Out -- Solid white cedar handles on both the interior and exterior of the door keep all hardware in the heat zone wooden. Interior handle is the larger grab style; exterior handle is the smaller pull style.

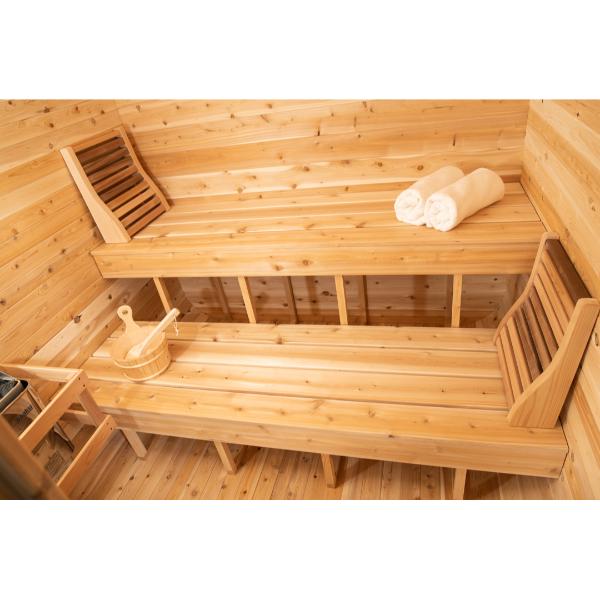

• Two-Tier Pre-Assembled Cedar Bench System -- Two pre-assembled bench panels, each 23 1/2 inches wide by 79 1/4 inches long, install on the back wall as the upper and lower tier. Each bench is wide enough to lie down fully outstretched -- a capability not standard in this footprint class. Upper tier at 33 1/2 inches from the floor; lower tier at 16 1/2 inches. Two-tier bench supports included.
• Complete Sauna Vent Kit Included -- Full vent kit includes stainless steel sauna vent grilles (2) and a cedar vent cover, providing the controlled airflow required for proper sauna function and comfortable sessions.
• Single Towel Hook Included -- Solid cedar towel hook included and installed near the door for immediate use.
• White Cedar Bevel Siding Exterior -- Thirty-six 83 1/8 inch bevel siding boards clad the exterior of the Luna, providing the characteristic horizontal-layered look that defines this model and giving the exterior its natural weather resistance.
• Electric Heater Configuration -- The CTC22LU is built and configured for a 6kW electric sauna heater. Compatible heater options include the Harvia KIP 6kW, HUUM Drop 6kW (Local or WiFi control), HUUM Hive 6kW (Local or WiFi control), and Homecraft Revive 6kW. Heater is sold separately and selected at time of order.
• No-Heater Option Available -- The CTC22LU can be ordered without a heater (option code NOHEATERCTC) for buyers who have sourced their own heater separately.
• 240V Electric Heater Requirement -- All compatible heaters require a 240V, 30 to 50 amp circuit depending on the heater model selected. Final electrical connections must be completed by a certified electrician.
• Ready-to-Assemble Kit -- The Luna arrives fully pre-cut with all structural components, hardware, benches, door, window, vent kit, and accessories packaged together. No field cutting required. Assembly can typically be completed over a weekend with two people.
• Compatible with Optional Sauna Accessory Packages -- Leisurecraft's Starter, Deluxe, and Supreme Sauna Accessory Packages can be added at time of order.
• Flexible Base Options -- The Luna can be installed on a concrete pad, wood deck, patio stone, or crushed stone base. The base must be level and solid. Base is not included.
• 3-Year Limited Warranty on Sauna Structure -- Leisurecraft warrants the CT Luna Sauna against defects in materials and workmanship under normal residential use for three years from date of receipt. Parts only -- labor and service not covered. Does not cover normal wear, weather conditions, or routine maintenance items.



What's Included

ALL CTC22LU CONFIGURATIONS INCLUDE:

• CT Luna Sauna structural kit -- all Eastern White Cedar wall staves, floor joists, and structural components, pre-cut and ready for assembly
• White cedar bevel siding for exterior (36 pieces, 83 1/8 in)
• Eastern White Cedar tongue-and-groove interior wall boards
• Two pre-assembled Eastern White Cedar bench panels (23 1/2 in wide x 79 1/4 in long each) with two-tier bench supports (4 supports)
• Cedar floor joists (5 pieces, 60 in long) - Cedar-framed sauna door with 5mm bronze tempered glass, pre-hung (right-hand swing)
• Double-pane 3mm tempered glass front window in cedar frame (26 1/2 in x 42 1/4 in) - Inside sauna door handle (large, white cedar)
• Outside sauna door handle (small, white cedar)
• Single cedar towel hook
• Complete sauna vent kit (stainless steel vent grilles x 2, cedar vent cover, EPDM rubber components)
• EPDM rubber membrane roof system with sloped runoff
• Corner trim pieces for Luna Sauna (8 pieces)
• Trim pieces for sides, top, and bottom (8 pieces, 59 in)
• All structural hardware and fasteners (Luna Sauna Hardware Package)
• CT Luna Owners Manual
• Assembly instructions

HEATER (SELECTION REQUIRED AT TIME OF ORDER -- SOLD SEPARATELY OR BUNDLED):

• Harvia KIP 6kW Electric Sauna Heater
• HUUM Drop 6kW Local Control
• HUUM Drop 6kW WiFi Control
• HUUM Hive 6kW Local Control
• HUUM Hive 6kW WiFi Control
• Homecraft Revive 6kW -- includes rocks, outside control, and trim to cover wires
• No Heater option available for buyers supplying their own heater

OPTIONAL ACCESSORY PACKAGES (SOLD SEPARATELY):

• Starter Sauna Accessory Package
• Deluxe Sauna Accessory Package
• Supreme Sauna Accessory Package



NOT INCLUDED / SOLD SEPARATELY:

• Electric sauna heater (required for operation -- see heater options above)
• Sauna foundation or base (concrete pad, wood deck, patio stone, or crushed stone -- customer responsibility)
• Electrical wiring and circuit installation (240V, 30-50 amp required; must be installed by a certified electrician)

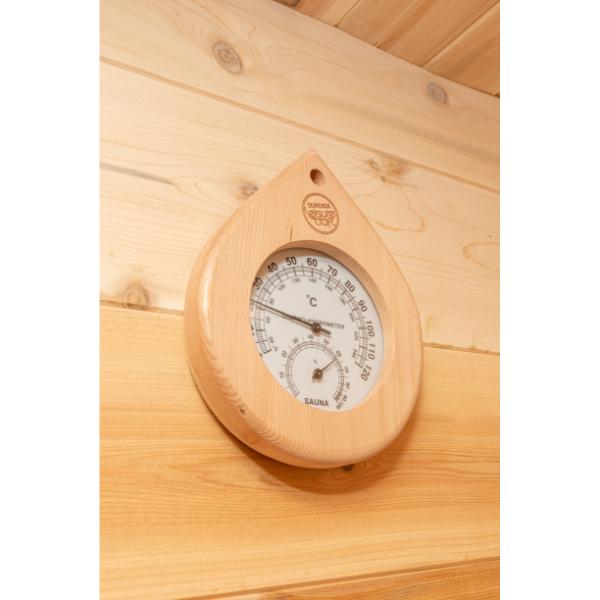

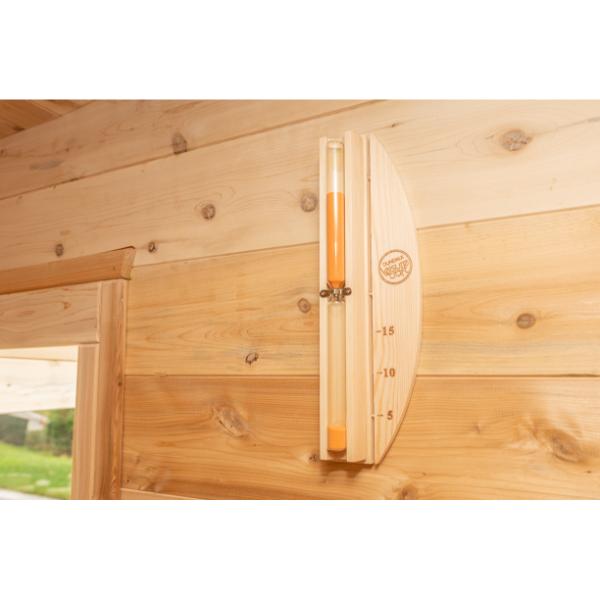

• Sauna accessories: bucket, ladle, thermometer, hygrometer, sand timer, backrest, cedar shelf (sold separately)
• Exterior stain or finish treatment (recommended for long-term cedar maintenance; sold separately)



INSTALLATION NOTE: The sauna base must be level and structurally solid before assembly begins. Approved base types include concrete pad, wood deck, patio stone, and crushed stone. All electrical connections for the heater must be completed by a certified electrician and must comply with local codes. Check local permit requirements before installation.



Specifications

Manufacturer: Leisurecraft (Dundalk LeisureCraft Inc.)
Model Name: CT Luna Sauna
Model Number: CTC22LU
Collection: Canadian Timber Collection
Product Type: Outdoor cabin sauna kit -- electric heater configuration
Country of Origin: Canada

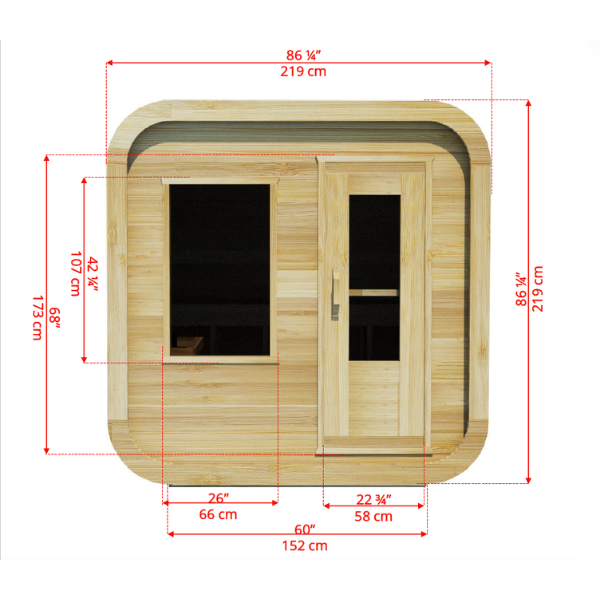

EXTERIOR DIMENSIONS:
Overall Width: 86 1/4 in (219 cm)
Overall Depth: 86 1/4 in (219 cm)
Overall Height (to roof peak): 68 in (173 cm)
Window Width: 26 1/2 in (67 cm)
Window Height: 42 1/4 in (107 cm)
Door Width: 22 3/4 in (58 cm)
Door Height: 38 1/4 in (97 cm)
Base/Leg Width (each foot): 19 in (48 cm) x 4 feet, with 4 1/2 in (11 cm) end pieces

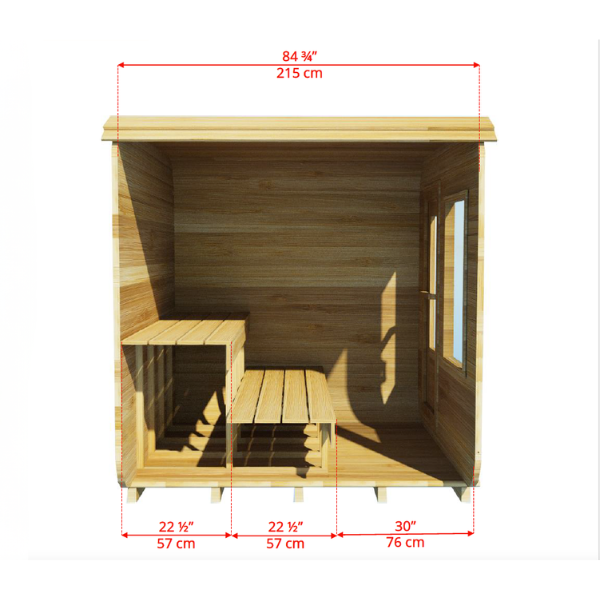

Overall Base Depth: 84 3/4 in (215 cm)

INTERIOR DIMENSIONS:
Interior Width: 80 1/4 in (204 cm)
Interior Depth: 80 1/4 in (204 cm)
Interior Height (floor to ceiling): 80 1/4 in (204 cm, approx.)
Upper Bench Height: 33 1/2 in (85 cm)
Lower Bench Height: 16 1/2 in (42 cm)
Bench Length (each tier): 79 1/4 in (201 cm)
Bench Depth (each tier): 22 1/2 in (57 cm)
Bench-to-Wall Depth (return section): 30 in (76 cm)

FOOTPRINT:
Base Footprint: Approx. 7 ft x 7 ft (86 1/4 in x 86 1/4 in)

WEIGHT AND SHIPPING:
Gross Shipping Weight: 1,525.7 lbs
Shipping Crate Size: 84 x 45 x 44 in
Interior Cubic Volume: 315 cu ft (8.9 m3)
Delivery Method: Freight (curbside standard; liftgate not available for crates over 92 in -- customer responsible for unloading and moving to installation site)

CONSTRUCTION:
Main Structure Material: Eastern White Cedar
Wall and Ceiling Finish: Eastern White Cedar T&G stave boards
Bench Material: Eastern White Cedar (pre-assembled panels)
Exterior Siding: White cedar bevel siding (83 1/8 in boards)
Corner Construction: Rounded corner stave assembly (engineered rounded corner profile)
Roof System: EPDM rubber membrane with sloped runoff; cedar trim finish
Door: Cedar-framed, 5mm bronze tempered glass, right-hand swing, pre-hung
Door Handles: White cedar (large interior, small exterior)
Front Window: Double-pane 3mm tempered glass, 26 1/2 in x 42 1/4 in, cedar frame
Ventilation: Complete vent kit with stainless steel grilles and cedar vent cover

HEATING:
Configuration: Electric
Compatible Heater Size: 6kW
Heater: Not included -- ordered separately (see heater options in What's Included)
Electrical Requirement: 240V, 30-50 amp (varies by heater model)
Electrician Required: Yes -- all final electrical connections must be made by a certified electrician

CAPACITY:
2 to 4 people

BASE REQUIREMENTS:
Approved Base Types: Concrete pad, wood deck, patio stone, crushed stones
Base must be level and solid. Base not included.

WARRANTY:
Sauna Structure (Eastern White Cedar): 3-year limited warranty against defects in materials and workmanship under normal residential use, from date of receipt. Parts only -- labor and service costs not covered. Does not cover normal wear, weather conditions, or routine maintenance.
Heater Warranty: Varies by heater model -- see individual heater documentation.
Warranty Page: https://leisurecraft.com/warranty-registration
