Videl USA 36" Premium Grill



Description

Not every outdoor kitchen is built around a 42-inch grill, and not every cook needs five burners. The Videl 36" Videl Series is built for the outdoor kitchen where the footprint matters, where the island is sized for two to four people rather than a crowd, and where the priority is a grill that performs at the level the rest of the outdoor kitchen deserves. At 36 inches wide with four Cast Stainless Steel Onyx Pro Burners and 76,000 BTU, it delivers the same 304 stainless steel construction, the same HeatWave Chamber, the same CoolTouch Knobs and CoolGrip Handle, and the same Storm Guard resilience as Videl's larger Gran Fuego 42 -- in a footprint that drops six inches from the width and integrates cleanly into a 32.5-inch cutout.



The four Cast Stainless Steel Onyx Pro Burners cover the full 653 square inch primary cooking surface with the kind of even, controllable heat that tubular steel burners cannot produce over time. Cast stainless steel holds its shape and maintains consistent gas distribution through years of high-heat cycling. The burners are covered by Videl's Lifetime Limited Warranty -- not because the warranty is a marketing claim, but because Videl builds the burners to the standard where the warranty is credible. Flame Stabilizing Grids and Flame Tamers below the cooking grates distribute heat evenly across the surface and vaporize drippings into flavor. The full-width drip tray spans the entire interior for clean, contained grease management.

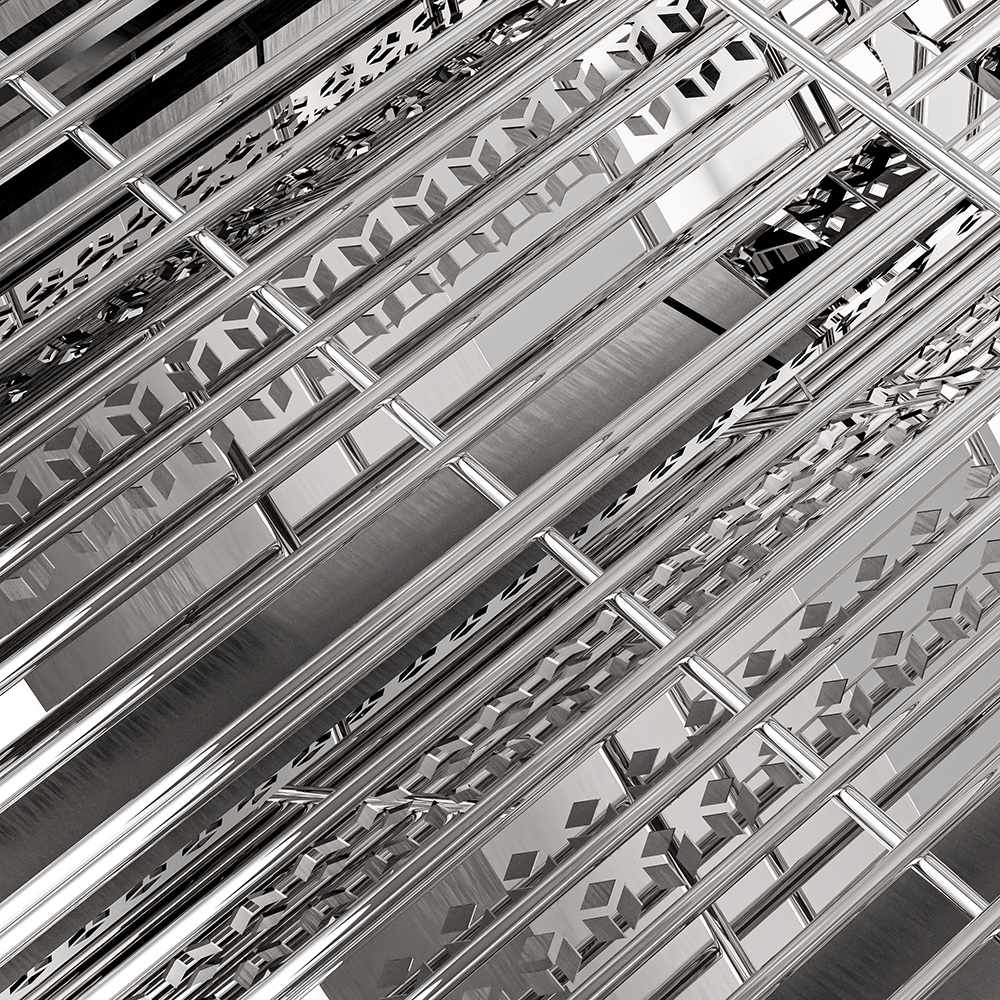

Above the burners, 9mm stainless steel cooking grate rods retain heat and deliver consistent sear marks with the mass to hold temperature when cold protein hits the surface. The adjustable, removable warming rack adds 207 square inches of secondary cooking area -- enough for a full round of buns, side dishes, or keeping protein warm while the rest of the cook finishes. Total cooking surface is 860 square inches. The double-lined natural convection hood circulates heat continuously, eliminating hot and cold zones and turning the closed grill into a convection cooking chamber for indirect work, roasting, or smoking at temperature.



The 36" Videl Series does not include an infrared burner -- that capability is specific to the Gran Fuego 42. What it does include is everything else: Flame Thrower electronic ignition, dual interior lights, a premium hood thermometer, CoolTouch Knobs that stay cool during operation, a CoolGrip handle, and the Quick Release Panel that provides front access to internal components and gas connections without island disassembly. The grill ships ready for Natural Gas. A gas conversion kit is included for Liquid Propane. All gas connections must be made by a licensed gas professional in accordance with local codes and ANSI Z223.1 / NFPA 54. Natural gas supply must be set to 4.0 inches water column; LP to 11 inches water column.



Certified to ANSI STD Z21.58-2022 / CSA STD 1.6-2022. Made in the USA. Backed by Videl's tiered limited warranty: Lifetime on cast stainless steel burners, 2-year on major structural and functional components, 1-year on valves, knobs, and lights.



Backyard Prime Living is a certified authorized reseller of Videl USA. Every purchase includes full manufacturer warranty support and our commitment to extraordinary customer care.



Features

• 4 Cast Stainless Steel Onyx Pro Burners -- Industry-leading cast stainless steel construction maintains even gas distribution and structural integrity over years of high-heat cycling. Covered by Videl's Lifetime Limited Warranty. No infrared burner on this model -- infrared is specific to the Gran Fuego 42.
• 76,000 BTU Total Output -- Four-burner output for fast preheating and sustained high-heat cooking across the full 653 square inch primary cooking surface.
• 860 Square Inches Total Cooking Surface -- 653 square inches primary cooking area plus 207 square inches on the adjustable, removable warming rack.
• 9mm Stainless Steel Cooking Grate Rods -- Thicker than standard grate rods, retaining more heat and delivering consistent sear marks with less temperature drop when protein hits the surface.
• HeatWave Chamber -- Videl's proprietary HeatWave Chamber system delivers unparalleled heat retention and distribution across the entire cooking surface. Ensures consistent results at every position on the grill.
• Double-Lined Natural Convection Hood -- The double-lined hood circulates heat in a continuous loop to eliminate hot and cold spots. Operates as a full convection cooking chamber when closed for indirect cooking, smoking, and roasting at temperature.
• Flame Stabilizing Grids and Flame Tamers -- Positioned below the cooking grates to distribute heat evenly and vaporize drippings for enhanced flavor. Reduces flare-ups and maintains consistent surface temperature.
• Flavor Bars -- Vaporize drippings to infuse food with smoky, flavorful undertones on every cook.
• Flame Thrower Ignition -- Electronic ignition system for fast, reliable burner lighting on all four burners.

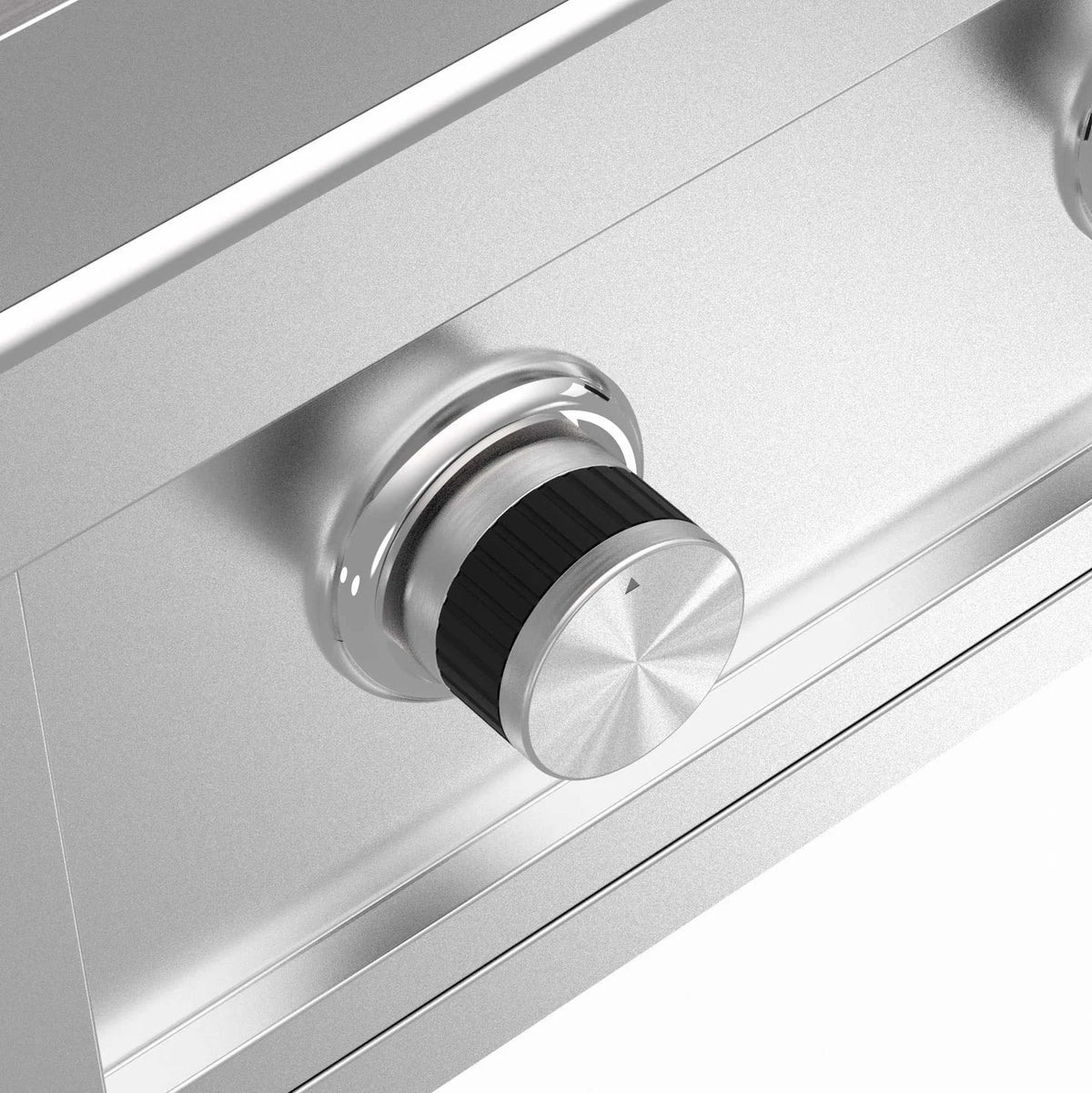

• CoolTouch Knobs -- Four individual burner control knobs that remain cool to the touch during operation for precise zone cooking without heat exposure to the hand.
• CoolGrip Handle -- Ergonomic hood handle designed to remain cool and comfortable during operation.
• Dual Interior Lights -- Two interior lights illuminate the full cooking surface for low-light and evening grilling.
• Premium Temperature Gauge -- Hood-mounted thermometer provides accurate interior temperature readings for consistent cooking results.
• Adjustable / Removable Warming Rack -- 207 square inches of secondary cooking area for holding, toasting, or warming. Adjustable height and removable when the full primary surface is needed.
• Quick Release Panel -- Front panel opens with a quick release for easy access to internal components and gas connections without island disassembly.
• Full-Width Drip Tray -- Spans the full interior width to capture grease and drippings cleanly. Removable for easy cleaning.
• 304 Stainless Steel Construction Throughout -- Full 304-grade stainless steel exterior, hood, and structural components for corrosion resistance and long-term outdoor durability.
• Storm Guard Resilience -- Weather-resistant construction built to withstand rain, wind, and temperature extremes year-round.
• Ships Ready for Natural Gas -- Arrives configured for NG. Gas conversion kit included for LP conversion. All conversions must be performed by a licensed gas professional.
• Certified to ANSI STD Z21.58-2022 / CSA STD 1.6-2022 -- Certified outdoor cooking appliance. Certification code: LC16070-1.
• Lifetime Warranty on Cast Stainless Steel Burners -- Videl's Lifetime Limited Warranty covers the cast stainless steel burners against defects in materials and workmanship under normal residential use.



What's Included

36" PREMIUM GRILL (VG-4B36) INCLUDES:

• Videl 36" built-in grill unit (304 stainless steel exterior and hood; fully assembled)
• 4 Cast Stainless Steel Onyx Pro Burners (pre-installed)
• 9mm Stainless Steel Cooking Grates
• Flame Stabilizing Grids
• Flame Tamers / Heat Deflectors
• Flavor Bars
• Full-Width Drip Tray
• Adjustable / Removable Warming Rack
• CoolTouch Knobs (4)
• CoolGrip Handle
• Dual Interior Lights
• Flame Thrower Ignition System
• Premium Hood Temperature Gauge
• Quick Release Panel
• Natural Gas Regulator (set to 4.0" W.C.; included for NG installation)
• Gas Conversion Kit (for LP conversion -- performed by licensed gas professional)
• Owner's Manual / Installation Guide (ANSI STD Z21.58-2022 / CSA STD 1.6-2022 certified)
• Warranty documentation

NOT INCLUDED / SOLD SEPARATELY:

• Gas supply line and outdoor kitchen island cutout
• LP regulator (required for LP installation at 11" W.C.; sold separately)
• Infrared burner (not included on this model; available as optional upgrade -- see Videl accessories)
• Installation labor (all gas connections must be made by a licensed gas professional)



INSTALLATION NOTE: This grill is designed for built-in installation into an outdoor kitchen island. The outdoor kitchen cavity must be adequately vented -- failure to vent can result in fire or explosion. All gas connections must be made by a licensed gas professional. Never use this grill in enclosed areas. Natural Gas: use the supplied NG regulator set to 4.0" water column. Liquid Propane: use an LP regulator set to 11" water column. Perform a soapy water leak test before each use -- never use an open flame to check for gas leaks. Installation must comply with local codes and ANSI Z223.1 / NFPA 54. Failure to follow the installation guide on pages 8-24 of the owner's manual may void all warranties.



Specifications

Manufacturer: Videl USA (a division of The Outdoor Plus Company, Inc.)
Product Name: 36" Videl Series -- 36 Inch 4-Burner Built-In Grill
Country of Origin: USA
Installation Type: Built-In

OVERALL DIMENSIONS:
Width: 36 in
Height: 22 in
Depth: 26.75 in

CUTOUT DIMENSIONS FOR ISLAND:
Cutout Width: 32.5 in
Cutout Height: 10 in
Cutout Depth: 22 in

COOKING SURFACE:
Primary Cooking Area: 653 sq. in
Secondary Cooking Area (Warming Rack): 207 sq. in
Total Cooking Surface: 860 sq. in

BTU Rating:
76,000 BTU

BURNERS:
Number of Burners: 4
Burner Type: Cast Stainless Steel Onyx Pro Burners
Infrared Burner: No

COOKING GRATES:
Rod Thickness: 9mm
Material: Stainless Steel

CONSTRUCTION:
Material: 304 Stainless Steel (exterior, hood, structural components)
Hood: Double-lined, natural convection design

FUEL:
Gas Type: Natural Gas (NG) or Liquid Propane (LP)
Ships As: Natural Gas ready; LP conversion kit included
NG Supply Pressure: 4.0 in W.C. (with supplied NG regulator)
LP Supply Pressure: 11 in W.C. (with LP regulator -- sold separately)

IGNITION:
Flame Thrower electronic ignition system

WARRANTY:
Cast Stainless Steel Burners: Lifetime Limited Warranty (residential use)
Fire Box, Hood, Handle, Bezel, Grates, Flavor Bars, Drip Pan, Rotisserie Burner, Transformer, Warming Rack, Flame Tamer: 2-Year Limited Warranty (residential use)
Gas Valve, Knob, Light: 1-Year Limited Warranty (residential use)
Applies to products in the United States and Canada. Proof of purchase required. Commercial use not covered.
Warranty Service: support@videlusa.com | (909) 460-5579 | Mon-Fri 7am-5pm PST



Manuals / Downloads

Videl USA 36" Premium Grill Spec Sheet

Videl USA 36" Premium Grill Manual
